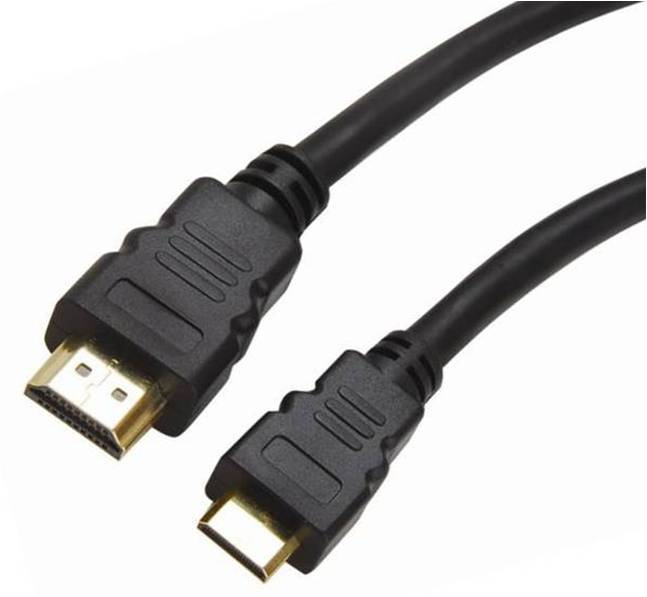

HDMI Type a to Type C Mini HDMI Cable

Name: HDMI Type a to Type C Mini HDMI Cable
Brand: all-electronics-online.com
SKU: 758785845
Availability: InStock
Rating: 4.3 (52 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	30/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YLC-HC401
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	Mini HDMI Cable a to C Type
Connector A:	HDMI Mini Male
Connectors:	24k Gold Plated
HD Resolution:	480I, 480p, 720p, 1080I, 1080P
Compatible Product:	All HDMI to HDMI
Conductors:	High Purity Oxygen Free Copper
Available Lengths:	3ft to 50ft
Available Terminations:	HDMI, 19pin, Male to Male, Version 1.4V
Available Gauge:	24/26/28/30AWG(Optional) Od:6.2/7.3/9.0mm
Shielding:	Al+ Ml+ Braiding+ Ferrite
Species:	HDMI
Application:	Multimedia, DVD Player, Speaker, Computer, Monitor, Game Player
Type:	Coaxial
Certification:	RoHS, CE, UL, HDMI Adopter
Connector:	HDMI
Wire Core Material:	Red Copper Wire
Material Shape:	Round Wire
Brand:	Mealink

Product Description

HDMI to Mini HDMI Type C Cable Adapter Converter for HDTV DV 1080p

SPECIFICATIONS
Conductors	High purity Oxygen Free Copper
Insulation	Outer Jacket with protective nylon sleeve. (color optional)
Contacts	24K Gold Plated
Connectors	Metal shell type (optional)
Available lengths	3FT to 50FT ( 1m,1.8m,3m,5m,10m,15m ) optional
Available terminations	HDMI,19PIN,Male to Male, Version 1.4v, up to 1440P
Available gauge	24/26/28/30AWG(optional) OD:6.2/7.3/9.0mm
Certification	RoHS,UL,CE,HDMI Adopter
Shielding	AL+ ML+ Braiding+ Ferrite
AWG	24/26/28/30

ELECTRICAL
Quality Control	operation according to regulations & rules in ISO9001:2008
Voltage	DC300V 5M ohm/10ms
Insulation Resistance	10M min
Contact Resistance	2 ohm max
Working Temperature	-25C-80C
Data transfer rate	10.2Gbps Max
Differential Impedance	100±10Ω(TDR)

FEATURES
1, Center conductor: high quality digital signal delivered by oxygen-free copper
2, Insulation: Using foamed PE as the insulation, ensure image quality and transmit image signal with stability.
3, Inner shield:100% Aluminum/Mylar foil shield, prevent high frequency noises and interference
4, Outer shield:95% copper braid shield, prevents most low frequency noises and interference.
5, function: suitable for HDTV, home theater, DVD player,projector,PS3,XBOX 360 and other HDMI devices.
6, High density triple shielding for maximum rejection of EMI and RFI
7, Transfer speed: 10.5Gbps
8, connectors: 24K gold-plated to ensure superior signal transfer and lifetime of maximum performance
9, Color optional: Pearl golden, Matter black, Silver, Golden, Shiny black, white porcelain, black porcelain, chrome
