Product Description

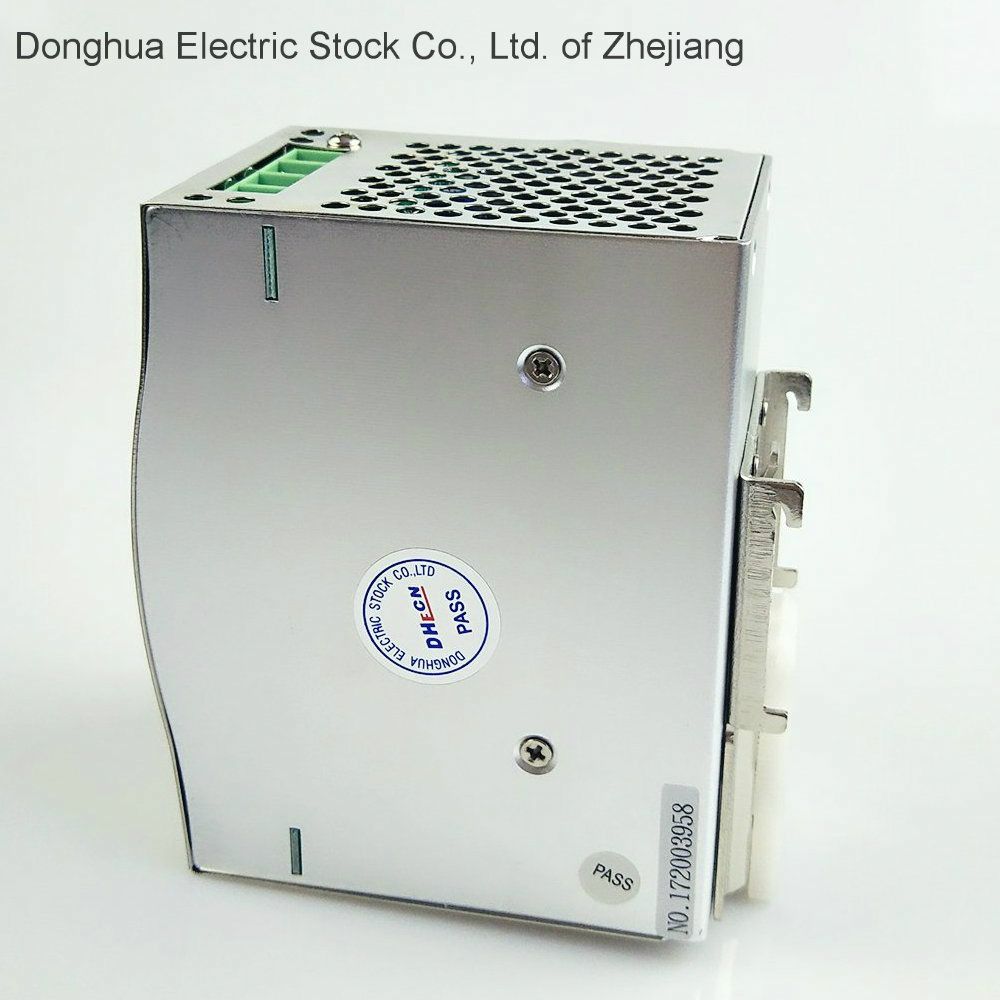

HDR-120 Single Output Industrial DIN Rail Power Supply 88-132 VAC/176-264VAC AC to DC 12V 10A
Donghua Electric Stock Co., Ltd. Of Zhejiang is a diversified technology company-serving customers and communities with correct, perfect products and services on switching power supply field and electrical equipment field. We provide you a world-class quality product and provide you professional product solution. 100% product guarantee, correct products, any question and require is welcome and thanks.

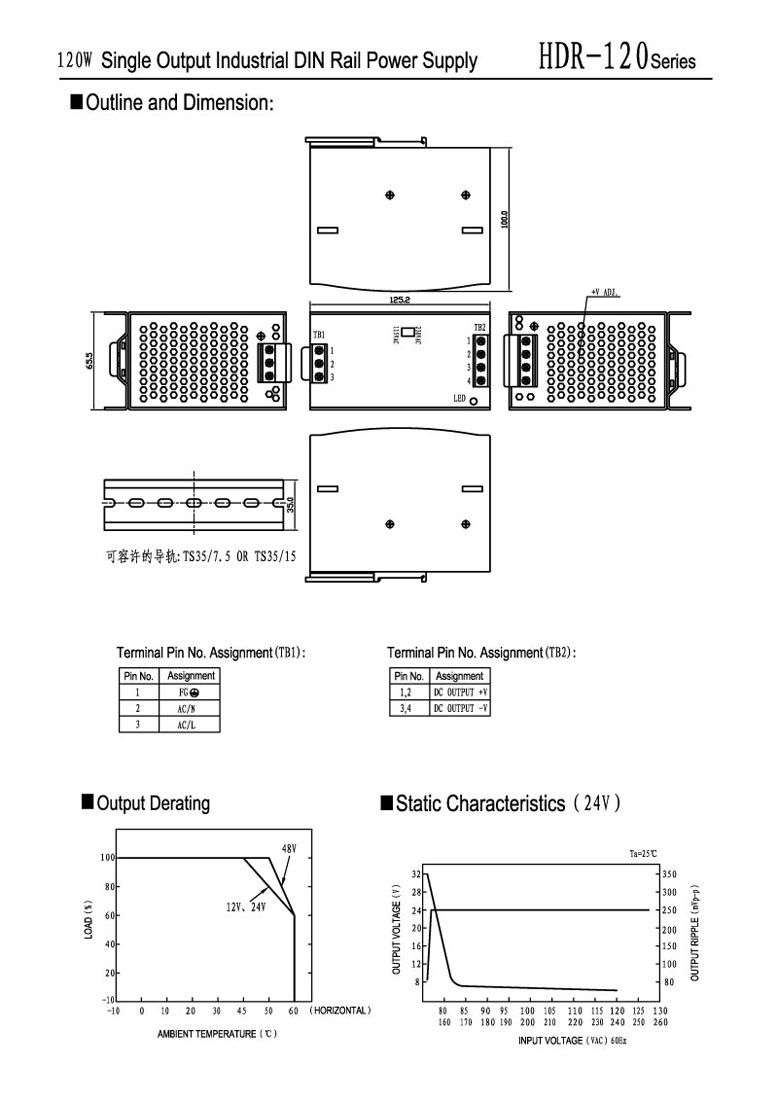

MODEL:HDR-120 Single Output Industrial DIN Rail Power Supply |
Features:
· Universal AC input / full range
·Protections: Short circuit/ Over load/ Over voltage/ Over temperature
·Cooling by free air convection
·Can be installed on DIN rail TS-35/7.5 or 15
·LED indicator for power on
·100% full load burn-in test
·Fixed switch frequency at 55KHz
·1 year warranty
·Dimensions: 65.5*125.2*100mm (W*H*D) |
casing No. : H036 |
|
MODEL | HDR-120-12 | HDR-120-24 | HDR-120-48 |
OUTPUT | DC Voltage | 12V | 24V | 48V |
Voltage Tolerance | ±2% | ±1% | ±1% |
Rated Current | 10A | 5A | 2.5A |
Current Range | 0-10A | 0-5A | 0-2.5A |
Rated Power | 120W | 120W | 120W |
Ripple & Noise | 80mVp-p | 80mVp-p | 100mVp-p |
DC Adjustment Range | 12-14V | 24-28V | 48-53V |
Setup, Rise Time | 500ms,70ms/230VAC at full load500ms,70ms/115VAC at full load |
Hold Time | 36ms/230VAC32ms/115VAC at full load |
INPUT | Voltage Range | 88~132 VAC/176~264VAC47~63 Hz;selected by 248~370VDC |
AC Current | 2.6 A/115 V 1.6A/ 230 V |
Efficiency | 80% | 84% | 85% |
Inrush Current | Cold start 20A/115V 40A/230V |
Leakage Current | <3.5mA/240VAC |
PROTECTION | Over Load | 105%~150% |
Protection type: Constant current limiting, recovers automatically after fault condition is removed |
Over Voltage | 120%~135% |
Protection type: Shut down o/p voltage, re-power on to recover |
Over Temp | 85ºC±5ºC(TSW1) | 90ºC±5ºC(TSW1) | 90ºC±5ºC(TSW1) |
Protection type: Shut down o/p voltage, recovers automatically after temperature goes down |
ENVIRONMENT | Working Temp., Humidity | -10ºC~+60ºC;20%~90 %RH |
Storage Temp., Humidity | -20ºC~+85ºC;10%~95 %RH |
Vibration | 10~500Hz,2G 10min./1cycle, period for 60min, each along X, Y, Z axes |
SAFETY | Withstand Voltage | I/P-O/P:3KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC |
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC |
STANDARD | Safety Standard | Design refer to UL508,UL60950-1,TUV EN60950-1 |
EMC Standard | Design refer to EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,EN61000-6-2(EN50082-2) |
OTHERS | Weight | 0.79Kg |
Packing | 20pcs/16.5Kg/1.1CUFT |
NOTE | 1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25ºC of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation. 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. |
