HDR-30 Single Output DIN Rail Type Switching Power Supply Output 88-264VAC to 12VDC 2A

Name: HDR-30 Single Output DIN Rail Type Switching Power Supply Output 88-264VAC to 12VDC 2A
Brand: all-electronics-online.com
SKU: 806083505
Availability: InStock
Rating: 4.8 (142 reviews)

Price:	US $ 5.18-6.09/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HDR-30-12
Type Of Output:	Single Output(AC/DC to DC),Constant Voltage
Type Of Power Supply:	DIN Rail and Plastic Case Power Supply
Input:	88-264VAC
Output Voltage:	12V 2A
Output Type:	Single
Warranty:	2 Years
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Output Power:	30W
Input Voltage:	AC85~264
Brand:	Dhecn

Product Description

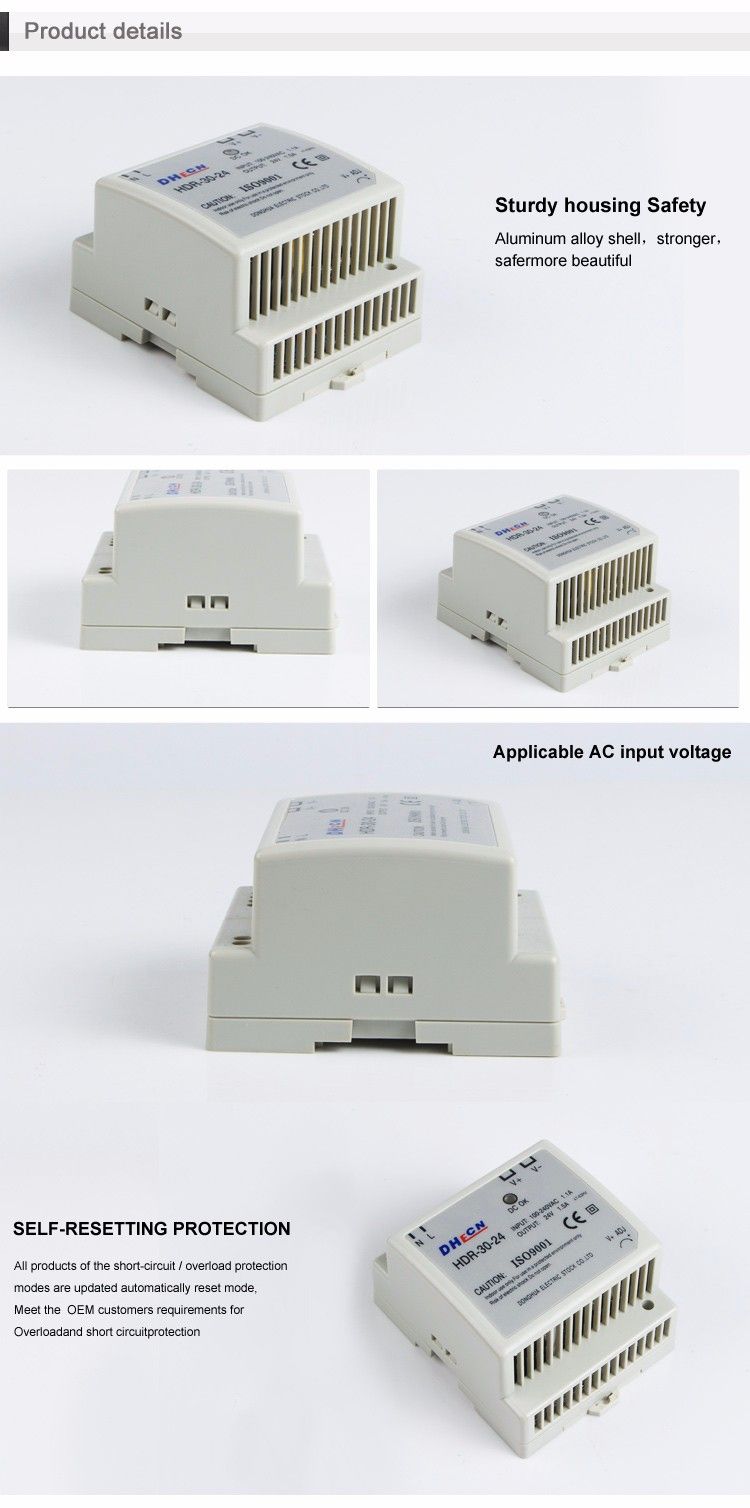

HDR-30 Single Output DIN Rail Type Switching Power Supply 88-264VAC to 12VDC 2A 30W

·Universal AC input/ full range
·Protections: Short circuit/ Over load/ Over voltage
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
Isolation class Two
LED indicator for power on
100% full load burn-in test
2 year warranty

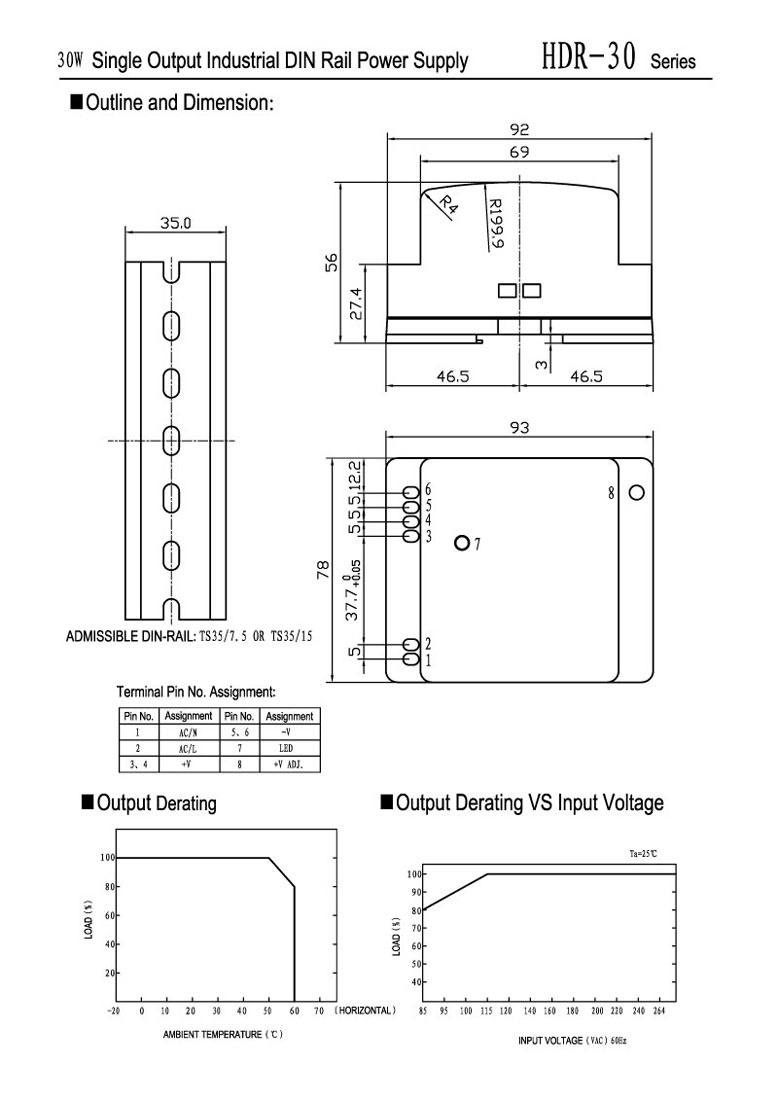

Dimensions: 78*93*56mm (W*H*D)

MODEL		HDR-30-5	HDR-30-12	HDR-30-15	HDR-30-24
OUTPUT	DC Voltage	5V	12V	15V	24V
	Voltage Tolerance	±2%	±1%	±1%	±1%
	Rated Current	3A	2A	2A	1.5A
	Current Range	0-3A	0-2A	0-2A	0-1.5A
	Rated Power	15W	24W	30W	36W
	Ripple & Noise	80mVp-p	120mVp-p	120mVp-p	150mVp-p
	DC Adjustment Range	-5%,+10%	±10%	±10%	±10%
	Setup, Rise, Hold Time	100ms,30ms/230VAC100ms,30ms/115VAC at full load
INPUT	Voltage Range	85~264 VAC47~63 Hz; 120~370VDC
	AC Current	0.88 A/115 V 0.48A/ 230 V
	Efficiency	74%	81%	82%	83%
	Inrush Current	Cold start 15A/115V 30A/230V
PROTECTION	Over Load	105%~160%
		Protection type: Constant current limiting, recovers automatically after fault condition is removed
	Over Voltage	115%~135%
		Protection type: Shut down o/p voltage, re-power on to recover
ENVIRONMENT	Working Temp., Humidity	-20ºC~+60ºC;20%~90 %RH
	Storage Temp., Humidity	-40ºC~+85ºC;10%~95 %RH
	Vibration	10~500Hz,2G 10min/1cycle, period for 60min, each along X, Y, Z axes
SAFETY	Withstand Voltage	I/P-O/P:3KVAC
	Isolation Resistance	I/P-O/P:100M Ohms / 500VDC
STANDARD	Safety Standard	Design refer to UL60950-1,TUV EN60950-1,EN50178
	EMC Standard	Design refer to EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,EN61000-6-2,EN61204-3
OTHERS	Weight	0.27Kg
	Packing	48pcs/14Kg/1.02CUFT
NOTE	1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25ºC of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation. 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.

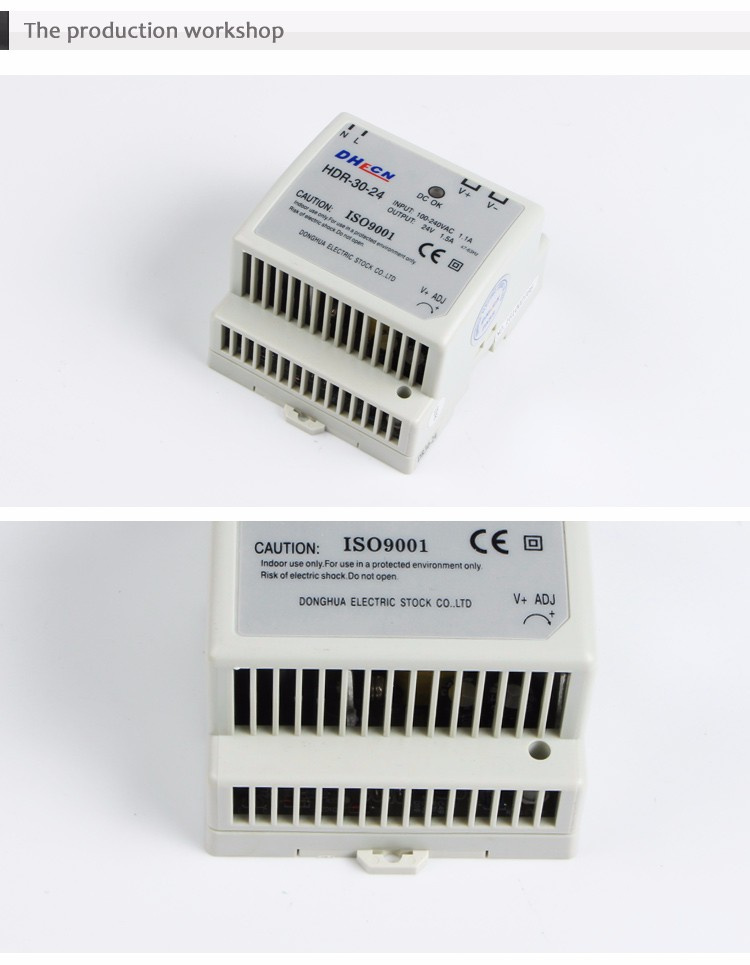

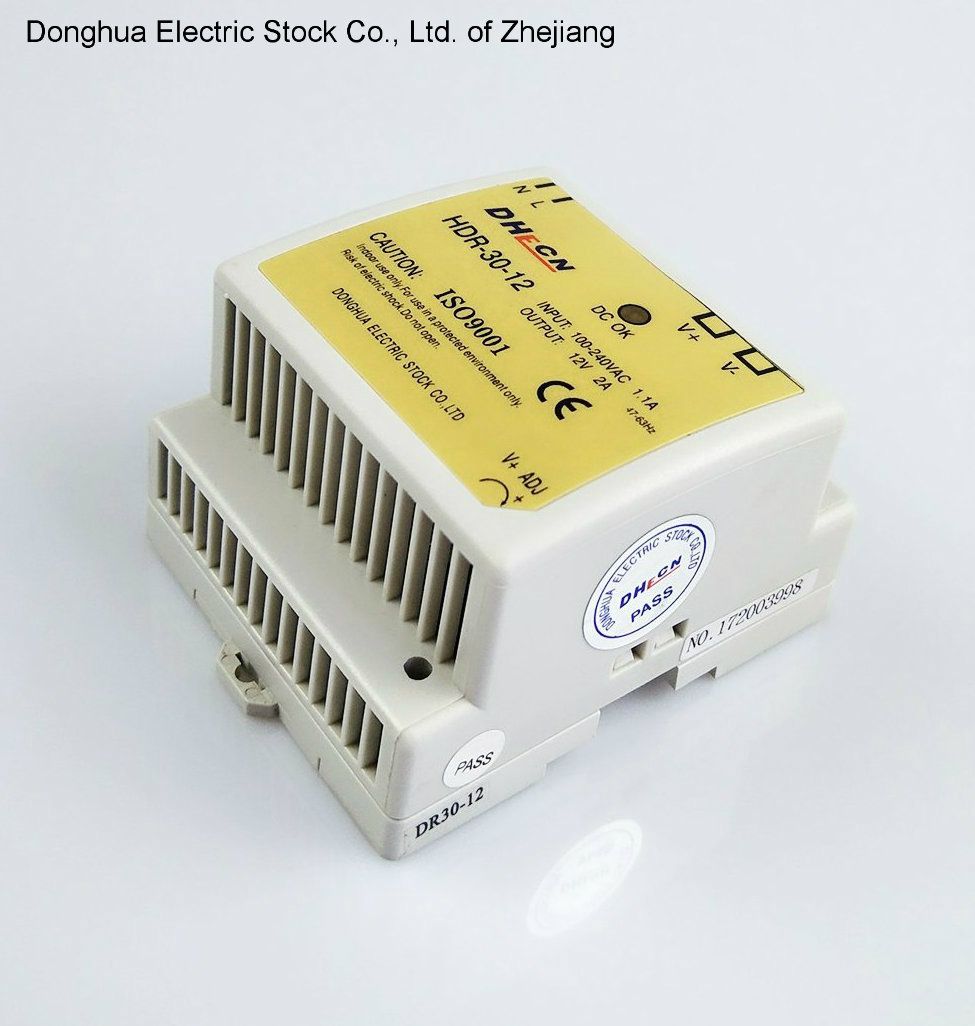

HDR-30W image, 5VDC, 12VDC, 15VDC, 24VDC can be offered.

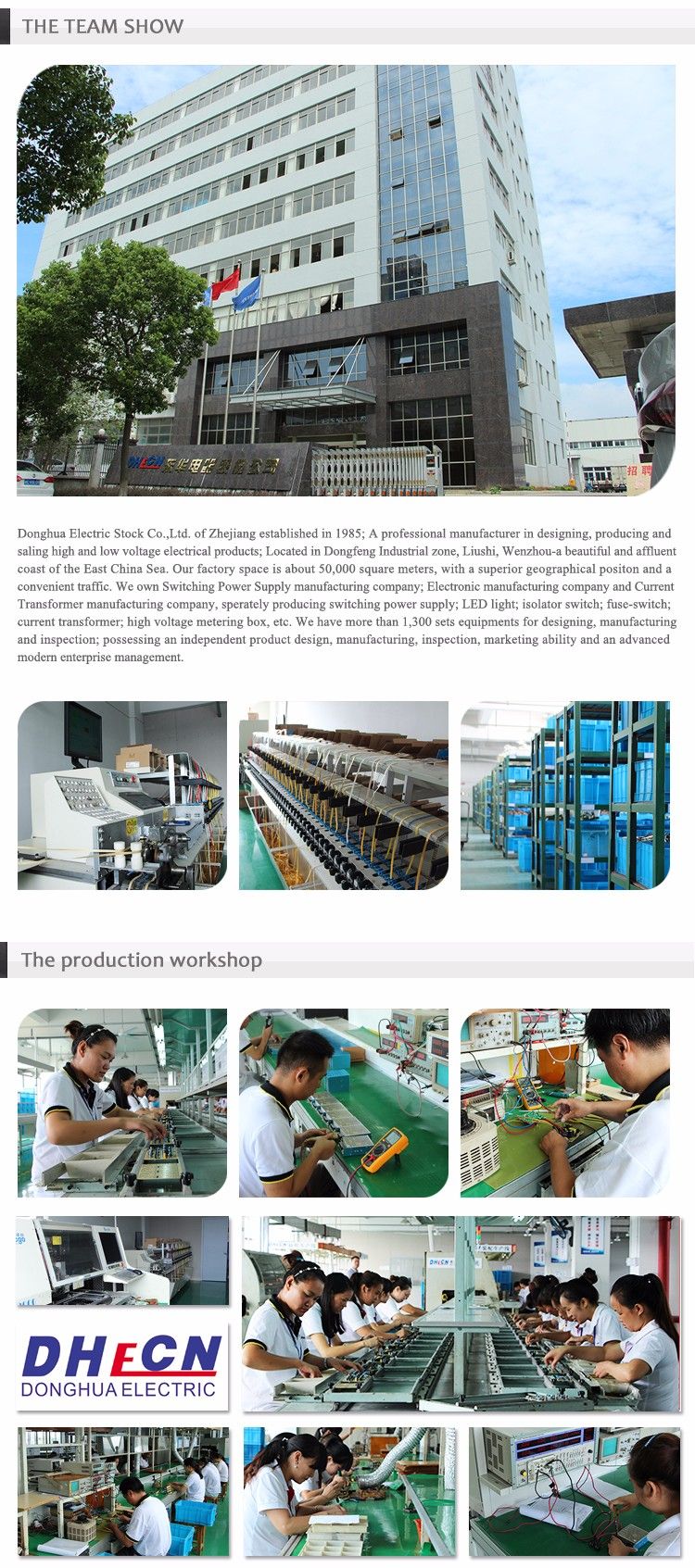

Established in 1988, We specialize in manufacturing switching power supply, current transformer, voltage transformer, fuse and isolation switch. Donghua provides you a variety of high quality switching power supply, Transformer, fuse, isolation switch And professional product solution.

To supply our customers perfect products, we set up R&D department with over 20 experienced engineers and also follow a full set of computerized managementssystem. What' S more, as an ISO9001 certified company, we adopt a strict inspection process and a scientific management system with modern imported manufacturing and testing facilities, succeeded in achieving some safety sertification such as CCC, CE, CB, UL and all products are RoHS Compliance.

Advantage managent and abundant labor in China, let us provide our customers more high reliable quality and more cheaper products, by now, DHECN-SMPS is becoming more and more famous among customers worldwide due to its reliable quality, competitive price, punctual delivery and correct service.

Donghua warmly welcome all old and new customers to visit our company or contact us by Tel, Fax, E-mail. Believing we will be your long-term business cooperator either as a reliable supplier or as a close ODM/OEM partner in China.
