| Prod Model: |
FR type |
| Color: |
Black,Red,Yellow,Blue,Brown,Green |
| Popular Size: |
1.5mm,2.5mm,4mm,6mm |
| Rated Voltage: |
450/750V |
| Certificate: |
Ce, ISO 9001 |
| Business Type: |
Manufacturer |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Building |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Sheath Material: |
Bare |
| Range Of Application: |
Building |
| Brand: |
Jytop |
Product Description

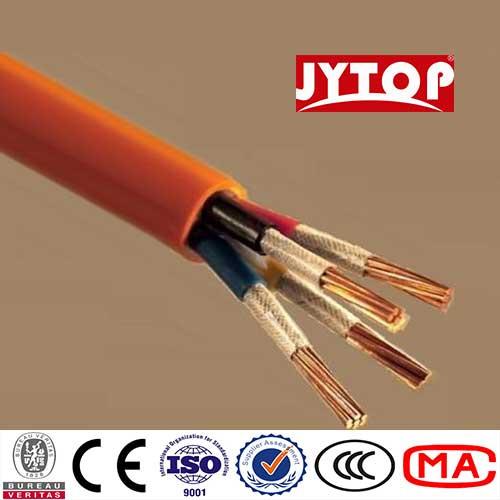

heat-resistant electric wire and firewire cable Company Description
1. CE, ISO 9001 Certificaes
2. More than 23 years experiences
3. Professional Manufacturer with Factory located in Henan Province.
4. Quick response and fast delivery.
5. Serve everyone with heart and soul.
H07Z-K Cable Construction 1. Conductor
2. Insulation
Rated voltage
Test voltage
Maximum temperature
Other characteristics
european
International norm
Electrolytic copper conductor, Class V, according to BS EN 60228:2005 (previously BS6360) and EN 60228. |
Thermostable material insulation with polyolefin base and low smoke and corrosive gas emission, type EI-5, according to UNE 21027-9 and HD 22.9S3:2007. |
450/750 V |
2.500 V in A.C. |
90 ºC |
Colours according to UNE 21027 and HD 22.1S4
Non-flame propagating according to UNE-EN 60332, EN 60332, IEC 60332
Low halogen content according to UNE 21027-9 and HD 22.9S3:2007
Low corrosive gas emission according to UNE 21027-9 and HD 22.9S3:2007
Low opaque smoke emission according to UNE-EN 61034, EN 61034, IEC 61034 |
EN 60332-1 / EN 50266 / EN 50267-1 / EN 50267-2 / EN 61034 |
IEC 60332-1 / IEC 60332-3 / IEC 60754-1 / IEC 60754-2 / IEC 61034 |
H07Z-K Cable Technical dataSection
(mm2)Resistance
at 20 °C
(Ohm/km)External
Diameter
(mm)Weight
(kg/km)
|
1x1,5 |
13,3 |
2,80 |
18 |
1x2,5 |
7,98 |
3,40 |
28 |
1x4 |
4,95 |
3,90 |
43 |
1x6 |
3,3 |
4,40 |
59 |
1x10 |
1,91 |
5,70 |
103 |
1x16 |
1,21 |
6,75 |
154 |
1x25 |
0,78 |
8,50 |
229 |
1x35 |
0,554 |
9,70 |
315 |
1x50 |
0,386 |
11,50 |
453 |
1x70 |
0,272 |
13,40 |
643 |
1x95 |
0,206 |
15,55 |
838 |
1x120 |
0,161 |
16,70 |
1.062 |
1x150 |
0,129 |
19,50 |
1.352 |
1x185 |
0,106 |
21,50 |
1.616 |
1x240 |
0,0801 |
23,90 |
2.057 |
web 1: www.jytopcable.com
web 2: www.electriccable.cc
web 3: www.abccable,net
Why Choose us?
For over 20 years, Zhengzhou Jinyuan Wire and Cable Co., Ltd., as a professional armoured cable, PVC cable, Aluminum cable manufacturer has been producing customized cable for a wide range of applications based on high quality, excellent service and competitive market prices. This is an elite team with experienced personnel and strong technical support. Our achievements benefit by having access to the largest market for cheap labor and abundant resources in China and our determination to exceed our clients' expectations.
PRODUCTS & STANDARDS
We can produce more than 2,000 types of cables and wires, such as
Bare Conductor: AAC, AAAC, ACSR, ACSR/AW, ACAR, ACSS, ACSS/AW, Aluminum Clad Steel Wire/Strand, Bare Copper Conductors, Copper Clad Steel Wire/Strand, Copper Clad Aluminum(CCA), Galvanized Steel Wire/Strand, etc.
Overhead Insulated Cable: Covered Line Single Core Cable and Aerial Bundled Cable (ABC). ABC includes Duplex, Triplex, Quadruplex and more Cores Service Drop Cable.
PVC Insulated Wire up to 450/750V
PVC or XLPE Insulated Power Cable from 1kV to 36kV
Control Cable
Welding Cable
Rubber Cable
We can produce cables according to the standards of IEC, ASTM, EN (BS, DIN, NF, etc.), AS/NZ and meet customers' special requirements.
ACHIEVEMENTS & COMMITMENT
Our cable has been exported to South-East Asia, South Asia, Middle-East, Europe, North and South America, Africa, Australia & New Zealand and so on. Zhengzhou Jinyuan Wire and Cable Co., Ltd.'s commitment is to be recognized as a zero-defect world class manufacturer in cable industry through continuous improvement of our quality, processes, and products, and by our determination to exceed our clients' expectations.
Welcome to contact us for more information about the H07Z-K cable or other cables.
