| Prod Model: |
BM100 |
| Application: |
Electrical Winding Insulation |
| Type: |
Insulation Sleeve |
| Chemistry: |
Organic Insulation |
| Material: |
Silicone |
| Maximum Voltage: |
>=4kv |
| Color: |
Grey |
| Brand: |
Jrft |
| Thermal Rating: |
-40~200c |
Product Description
Feature
1. Thermal conductivity: 0.6~1.5W/m.k
2. 6KV AC voltage withstand test
3. UL 94-V0 flame retardant
4. Smooth, good surface mount performance
5. Environmental protection
Applications
1. Heat transistor, diode, triode
2. Switching power supply
3. Uninterruptible power supply equipment
4. Power amplification device for thermal insulation
5. Automobile electronic equipment cooling
6. Cooling fin and the heat diffusion film
7. Other application need thermal conductivity or insulaiton
Specifications
Standard package type: TO-220A, TO-220B, TO-220C, TO-3PA, TO-3PB, TO-3PC
other size can be customized

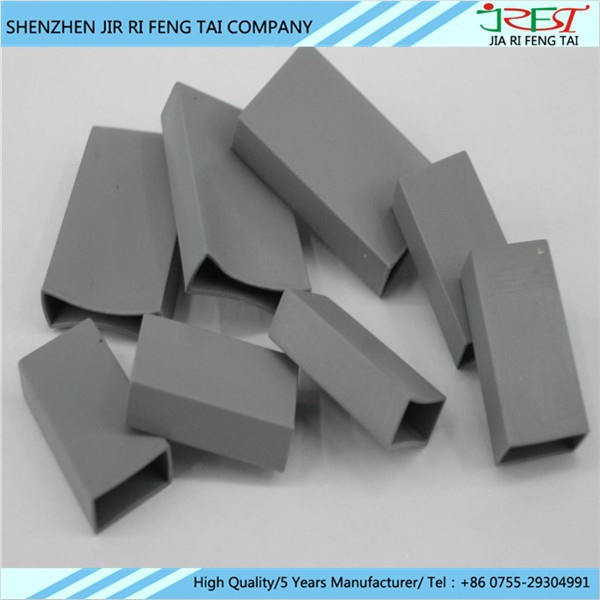

Silicone Insulation Cap
Silicone cap, generally refers to TO-220/TO-3P packaging silicone caps, that is the set of shaped product with silicone as substrate through a special producttion process. Due to its characteristic of high thermal conductivity, insulation, shockproof and convenient assembly, etc., are widely used in heat transistor, diode, triode. When you use, you can directly install on the heating pipe. Thermal conductive silicone rubber cap is recommended for low pressure.
Physical Properties
| Properties Table |
| Test Item | Unit | Test Value | Test Method |
| Model No. | -- | BM100 | BM200 | BM300 | -- |
| Color | -- | Grey/Blue | Grey | Grey/Blue/Pink/Yellow | Visual |
| Thickness | mm | 0.5 | 0.5-0.8 | 0.16~0.8 | ASTM D374 |
| Breakdown Voltage | KV | ≥4 | ≥4 | 2~5 | ASTM D149 |
| Thermal Conductivity | W/m.k | 1.2 | 1.0 | 0.8~2.8 | ASTM D5470 |
| Continuous Use Temp | ºC | -40~+200 | -40~+200 | -40~+200 | EN344 |
| Flame Rating | -- | UL-94 | v-0 |
| Thermal Impedance | ºC-in/W | 0.4 | 0.4 | 0.4 | ASTM D5470 |
| Volume Resistivity | Ω.cm | 1015∧ | 1015∧ | 1015∧ | ASTM D257 |
| Hardness | ShoreA | 70±5 | 70±5 | 80±5 | ASTM D2240 |
| Specific Gravity | -- | 2.39 | 2.39 | 2.5 | ASTM D792 |
| Tensile Strength | kg/cm2 | 20 | 30 | 60 | ASTM D412 |
| Elongation | % | 60 | 65 | 3 | ASTM D412 |
| EP(6) | -- | Check Out | IEC 62321 |
| Halogen(4) | -- | Check Out | EN 14582 |
| Construction | -- | Silicone/Fiber/Polimide Membranes | -- |
