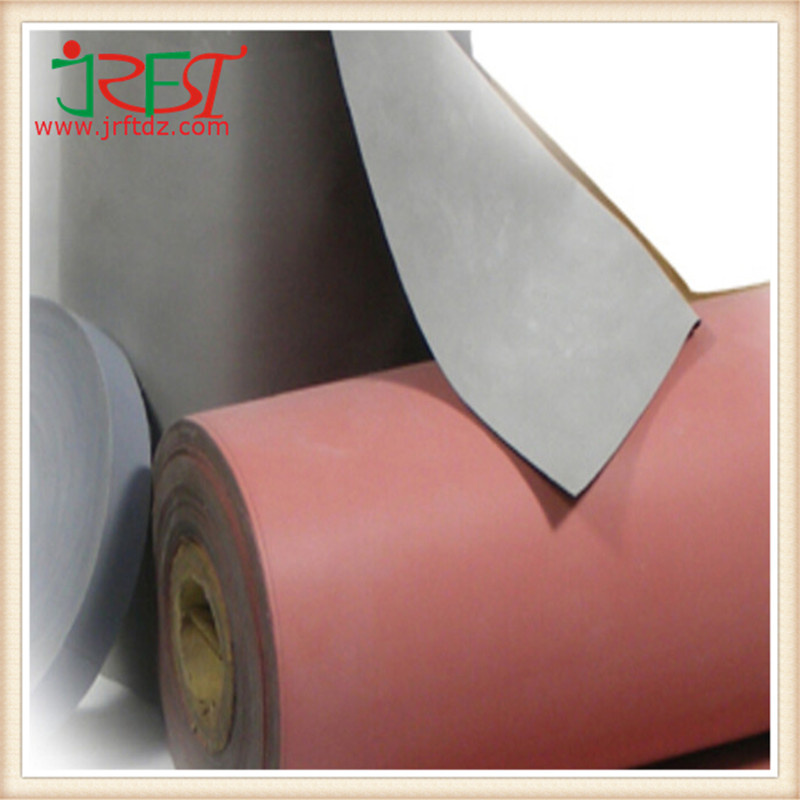

Heat Sink Insulation Silicone Sheet with Low Thermal Resistance

Prod Model:	BM900S
Weave Type:	Plain Woven
Alkali Content:	Alkali Free
Thickness:	0.2~3.0mm
Continuous Use Temp:	-60~200c
Tensile Strength:	18kg/Cm2
Sample:	Existing Sample
Surface Treatment:	Silicon Coated
Fiberglass Type:	E-Glass
Thermal Conductivity:	1.5W/M.K
Breakdown Voltage:	4.5kv
Application:	Electrical Winding Insulation
Type:	Insulation Sheet
Chemistry:	Organic Insulation
Material:	Fiberglass
Thermal Rating:	250 250
Maximum Voltage:	<10KV
Color:	Pink
Brand:	Jrft

Product Description

Heat Sink Insulation Silicone Sheet With Low Thermal Resistance


Insulator Silicone Sheet
BM900S Sil-Pad is a kind of silicone elastomer composite material, it's by insulating and good thermal conductivity filling material, silicone rubber and fiberglass compounded into. These products generally take the lower fastening pressure element fixed ways, the product has good thermal conductivity and high strength voltage resistance performance!


Advantages:
1.Strong tension resistance,
2.Wear resistance, excellent insulation performance,
3.Non adhesive on surface , thin thickness, suitable for thermal insulation of power devices.


Specifications
Basic Size: 300mm*50m, 300mm*76m
Shape: roll, sheet, die-cutting according to customers' requirements


Technical Data

Test Project	Numerical	Test Standard
Test Item	Product	Test Method
Model NO.	BM900s	---
Thickness(mm)	0.23	ASTM D 347
Color	Pink/Grey	Visual
Thickness Tolerance(mm)	0.006±0.001	ASTM D 347
Continuous Use Temp.	-60~200	TGA+DMA
Thermal Conductivity(W/m.k)	1.3	ASTM D 5470
Volume Resistivity(Ω-cm)	10∧10↑	ASTM D 257
Dielectric Breakdown Voltage	5.5KV↑	ASTM D 149
Hardness(ShoreA)	92±5	ASTM D 2240
Specific Gravity	2.8	ASTM D 792
Tensile Strength(kg/cm2)	9	ASTM D 412
Elongation(%)	20	ASTM D 412
RoHS(6)	Check out	IEC 62321
Halogen(4)	Check out	EN 14582
REACH(15)	Check out	EN14372EPA3502
Flame Rating	V---0	UL94
Construction	Silicone/Fiberglass	---

Features:
1. Thermal resistance : 0.49ºC-in2/W (@ 50psi)
2. Low fastening pressure
3. Surface smooth and highly adapted
4. electrical insulation


Application:
1. Large power source and automobile electronic heating module
2. Motor control, communication equipment
3. Power semiconductor, IS MOS tube IGBT chip
4. High voltage , high temperature , high power welding machine etc.
5. Military, aviation
6. Heating power device



Contact Information :

We can make many specifications according to your requests.
