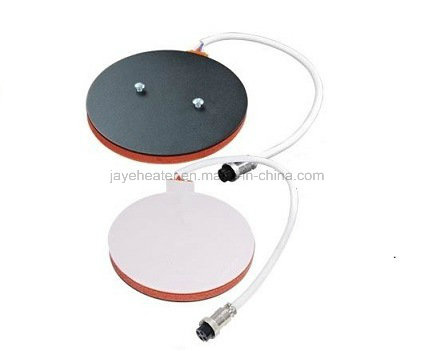

Heat Transfer Plate Heater for Heating Press Transfer Machine

Name: Heat Transfer Plate Heater for Heating Press Transfer Machine
Brand: all-electronics-online.com
SKU: 718790042
Availability: InStock
Rating: 4.3 (101 reviews)

Price:	US $ 10-16/Piece
Min Order:	5/Piece
Pay Type:	T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	JY-Plate heater
Color:	Red
Appliance:	Heat Pressing Machine
Quality:	High Quality
Working Temperature:	-40-250c
Thickness:	10mm or Customized
Power Design:	3-5W/Square Centimetre
Power Lead Wire:	Silicone Rubber

Product Description

Best quality heat transfer plate heater for heating press transfer machine

Plate heater pad is an important part of the thermal transfer baking pan machine, you can replace the pan pad to achieve the printing of different sizes of the plate. Heating pad with special ultra-precision wire tube technology, which can effectively ensure the temperature balance and stability, suitable for ordinary type pan machine, intelligent pan machine and multi-functional pan machine.

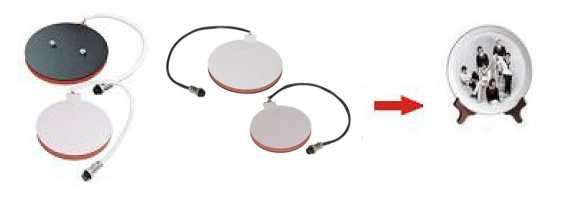

plate heat press heater
multi combo heat press used
Plate Heat Press Heater
Voltage: 220V or 110V
Size: Diameter 120 ,150mm
We are specialied in manufacturing all kinds of heat press machine and accessores,heating elements for heat press machine.
Aluminum heating plate, plate heating elments, mug prinring wrap, silicon pad, sublimation printing ink, heat transfer printing paper, digital timer and digital temperature controller for heat pers machine are all supplied upon your order.
Aluminum heating plate for heat press machine
1.size: 38*38cm,40*50cm,40*60cm,60*80cm
2.OEM order for different size
Aluminum Heating Plate for Heat Press Machine
Cast aluminium heating elements is a different shapes of heater which contain heating elements casting in, It has round, flat, square and other shapes which could stick with heating elements after processed.
The surface of board could bear the load reach to 2.5-4.5w/cm2, working temp between 400-500 degree. It is have even heating effect, better heat conductance. Our heating elements have long-live time, keep hot better, corrosion resistance and so on. It could use for heat press machine, cloth or plastic factory, dryer and so on.
Size: 38x38cm ,40*50cm,40*60cm,60*80cm,80*100cm
Voltage: 110V/220V
Power: 2200w, 2800w,3000w etc ...
OEM order for different weight or thickness

Technical Parameters:

Dimension	Dimensions on request
Thickness	1.5mm(standard) Note: There is an extra thickness at the connection point.
Heating element	Nickel-Chromium or Copper-Nickel resistance wire wound around a fiberglass core	Nickel-Chromium or a Copper-Nickel resistance wire
Voltage	Any voltage on request (Any AC or DC)
Output	Up to 5KW/M2
Tolerance	±10% on resistance
Max surface temperature	200 degree
Min exposure temperature	-60 degree
Size/Shape Limitations	Maximum width of 48 inches, no maximum length
Attachment	Hooks, lacing eyelets, Or Velcro closure. Temperature control(Thermostat)

Jaye industry Co., Ltd has been in the heating elements industry since 2009, and is one of the most trust worthy and professional supplier for various type of heating elements, spare parts and thermostats in China. Our products Mainly include the Home heating elements, industrial heating elements, Flexible silicone heating elements, spare parts and thermostats etc.

'Customization' mixed with the highest grade of material and workmanship is the kind of heater that JAYE industry will provide. This is where our reputation lies and we will continue to provide only the best products to our customers.
