Heating Element for Hot Runner System

Name: Heating Element for Hot Runner System
Brand: all-electronics-online.com
SKU: 739126625
Availability: InStock
Rating: 4.5 (119 reviews)

Price:	US $ 5/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	k
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Black
Brand:	Micc
Product:	Coil Heater
Name:	Small Heating Coil
Voltage:	12V 24V 110V
Power(W):	100-2000W
Size:	3.0 X 3.0, 3.5 X 3.5, 4 X 4 etc.
Insulation Material:	MGO
Place Of Origin:	Zhejiang, China (Mainlan
Application:	Heater
Structure Material:	Metal Material

Product Description

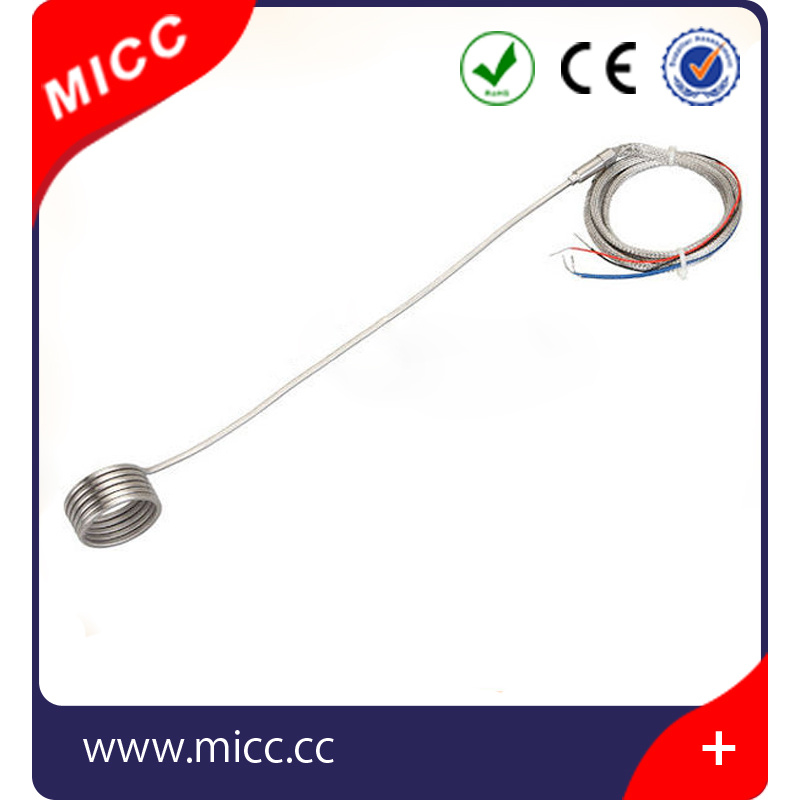

Heating Coil
INTRODCTION

Hot runner heater are made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with MgO power and compacted for faster and efficient heat transfer. The heaters are anneale to acquire malleability for bending into any shape. Hot runner heaters with built in thermocouple are also avaiable. Hot runner bushes are produced with hot runner heaters of different cross section with inner brass and outer stainless steel cover.
Avaliable in following cross section
3.0*3.0, 3.3*3.3, 3.5*3.5, 4*4 etc
4.2*2.2, 4.2*2.5
Features
1. Standard sizes available with various cross section
2. Various Watt Density options available.
3. Robust Design with Choice of Terminal Exits
4. Available with built in Thermocouple
5. Designed for even heat profile.
6. Precision fit on Hot Runner Nozzles & Manifolds.
7. Highly Non-corrosive.
8. Maximum heat transfer due to more contact area.
9. Advanced Thermal Engineering.
Technical specification

Sheath MaterialCr Ni-Steel
Insulation MaterialMgO
Resistance WireNi Cr 80-20
Maximum Sheath Temperature700° C
Die Electrical Strength800V A/C
Insulation>5 M W
ThermocoupleJ type (Standard) or K type
Length Tolerance (Straight)5%
Wattage Tolerance+/- 10% (+/- 5% Available Upon Request)
Resistance Tolerance+/- 10% (+/- 5% Available Upon Request)
Unheated Length35mm (Standard)
Dimensional ToleranceCoil I. D +/- 0.1 to 0.2mm
Coil Length +/- 1mm
Application
1. Injection moulding machine nozzle
2. Hot Runner Nozzles & Bushings
3. Packaging machineries
4. Hot runner Injection moulds.
5. Injection & Blow Moulding Machine Nozzles.
6. PET prefrom & Thin wall container Moulds
7. Hot runner Manifolds.
