Heating Element U Type Tubular Heater with Flange Water Heater Immersion Heater

Product Description

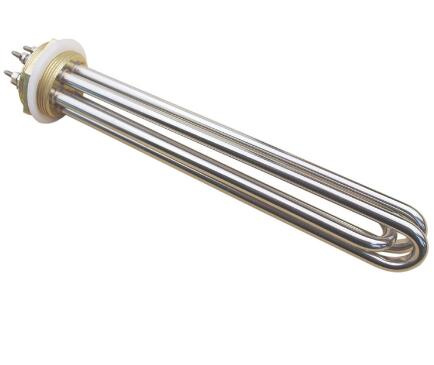

Heating element U Type Tubular Heater With Flange water heater  immersion heater

The electric heating tube is a metal tube, along the tube in the center of the central axis of the spiral electric heating alloy wire (nickel chromium, iron chromium alloy) filled with the gap with a good insulation thermal conductivity of magnesia sand, Or ceramic seal. Electric heating tube is a special electrical components into electrical energy, because of its cheap, easy to use, easy installation, no pollution, is widely used in a variety of heating occasions, stainless steel heating tube life is very long, generally designed to use Life of more than 10,000 hours.

1. Voltage can be designed as: 12-660V

2. Single injection power: 50W-20KW

3. Materials are: 10 # iron, T4 copper, 1Cr18Ni9Ti stainless steel, Ti titanium and so on.

4. Specifications are: U-shaped, W-shaped, shaped, with cooling fins electric heating pipe, explosion-proof electric heating pipe

Material requirements:

1.Reasonable choice of raw materials of electric tube, is to ensure the quality of electric heating power of the premise.

2. Pipe selection principle: temperature, corrosion resistance.
3. Resistance wire selection: Cr20Ni80
4. Magnesium oxide powder selection: industrial grade magnesium oxide powder
5. Seal material selection: silicone oil +704 sealant

Application of electric heating pipe

1. Small size, high power: the electric heater mainly used within the cluster tubular heating element, each cluster-type tubular electric heating element maximum power of 5000KW.

2. Fast thermal response, high temperature control accuracy, comprehensive thermal efficiency.

3. Wide range of applications, strong adaptability: The circulating heater can be applied to explosion-proof or general occasions, its explosion-proof grade up to B-class and C-class, its pressure up to 10Mpa. And according to the user needs the cylinder with vertical or horizontal installation.

4. High heating temperature: the heater design maximum operating temperature up to 850 ºC, which is the general heat exchanger can not get.

5. Fully automatic control: Through the heater circuit design, can easily achieve the export temperature, pressure, flow and other parameters of automatic control, and computer networking, to achieve man-machine dialogue.

6. Long life, high reliability: The heater is made of special electric materials, coupled with the design of the power load are more reasonable, the heater with multiple protection, making the heater safety and life greatly increased.

7. Stainless steel electric tube is a metal tube for the shell, along the tube in the center of the central axis of the spiral electric heating alloy wire (nickel chromium, iron chromium alloy) the gap filled with a good insulation thermal conductivity of magnesia sand, Sealed with silicone or ceramic, this metal armored electric heating element can be heated air, metal molds and a variety of liquids. ] In the high-temperature stainless steel seamless tube evenly distributed high-temperature resistance wire, in the gap part of the dense filling thermal conductivity and insulation properties are good crystalline magnesia powder, this structure is not only advanced, high thermal efficiency, and heat evenly, when the high temperature Resistance wire in the current through, the heat generated by the crystallization of magnesium oxide powder to the metal pipe surface diffusion, and then transferred to the heated parts or air to achieve the purpose of heating.

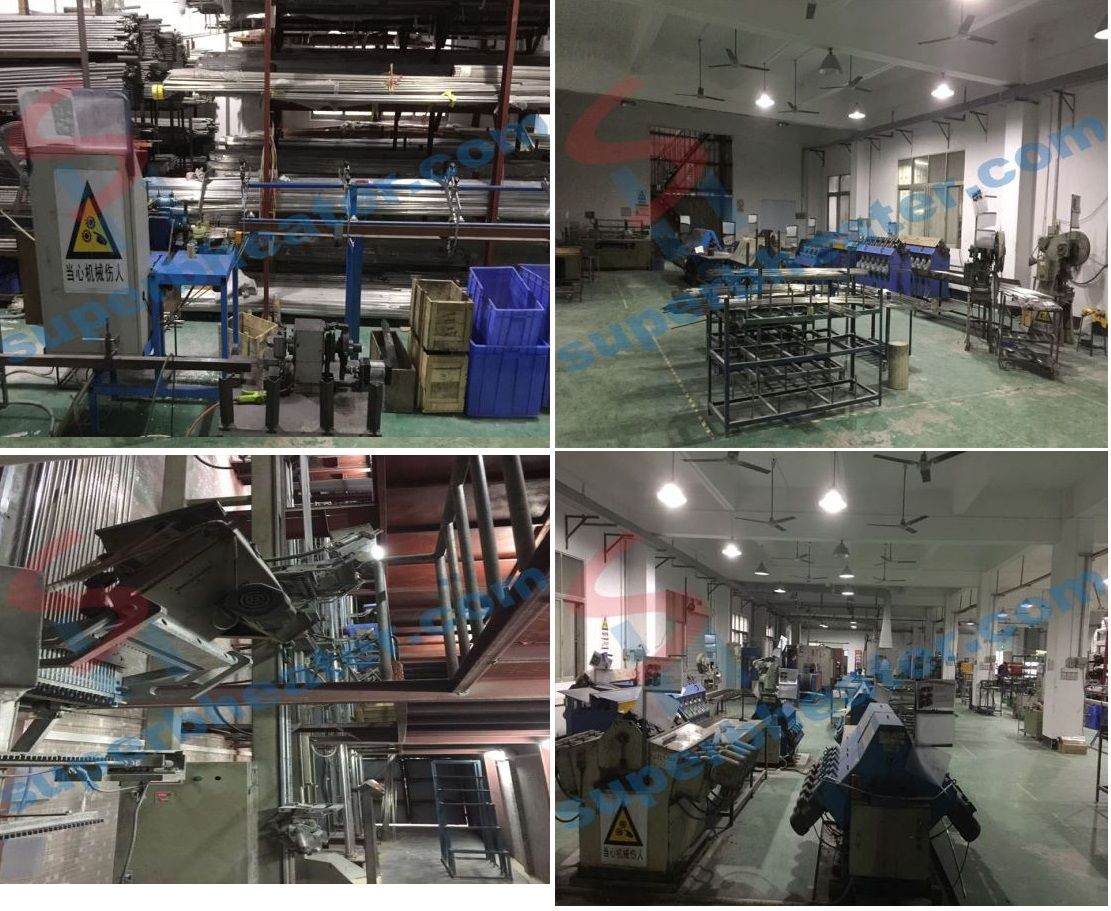

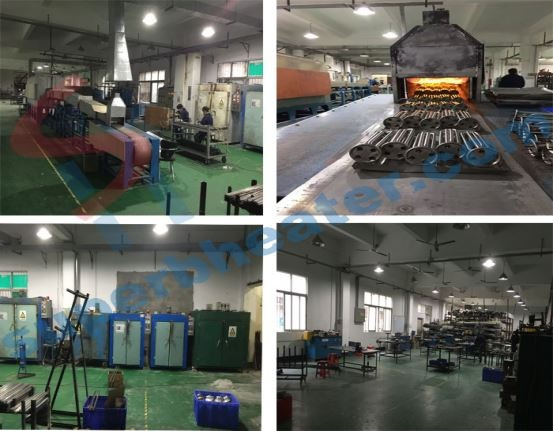

Our work shop:

OUR ADVANTAGES:

1.Minimum order: 3pcs

2.Delivery time : in stock 1-2days ,out stock 3-7days

3.More than 50  different sizes stock

4.Products are divided into two grades

A grades:use the The world's top material Best quality,Meet or exceed the same quality in Europe and America,Only 40% of the price of similar products in Europe and America To meet customer demand for high quality.

B grades:use the The china top material,Best quality in china ,Meet the standard for quality and price requirements of customers

5.Provide OEM service.

6.Quality Assurance:Under normal conditions consistent with the design range ,

A grades 365days

B grades 180days

Superb Heater Technology has been focused on the production of Heating element U Type Tubular Heater With Flange water heater  immersion heater since 1985, which is well-known as one of the leading manufacturers and suppliers of industrial screw plug bendable immersion tubular heaters heating elements. In the past years, we owned strong reputation for the high quality, reliable performance and strong durability of our products. Should you are interested, please feel free to contact our factory.
