Heating Element

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Golden
Voltage:	220V
Reflection:	Gold Planted or White Coated
Application:	Heater

Product Description

Quartz Heating Tube for Room Warming
HT-QIT Carbon Fiber Quartz Heating Tube for Room Warming

Quartz infrared heating tube with the ability of fast thermal response.
This kind quartz heater component has strong transmission at far infrared.
The surface temperature range of Hongtai's quartz heating tube can be divided into three groups:
Low temperature (400° C --600° C), mid temperature: (600° C --800° C), high temperature (800° C --1000 ° C).
If the customers need professional help with their design, the technician group will provide their help.

Features:
Product Name
Quartz Infrared Heating Tube
Outside Diameter
8~50mm, also can be customized
Length
100~3000mm, also can be customized
Power
100~10000KW, also can be customized
Voltage
24V/75V/110/220V/240V/380V/415V etc.
Surface Temperature Range
400~1000 ° C

Applications:
1. Home heating and warming: Heater, cooking, oven, stove, baker
2. Industrial drying: Painting, drying apparatus, dyeing, print, products processing
3. Electrical machine drying: Copy machine, projector, printer;
4. Other heating area.

When you inquiry, please inform us the following details:
1. Outside diameter and length of the quartz heating tube you need;
2. Power and Voltage of the tube you need;
3. The surface temperature you need;
4. Special requirements if you have.

The advantage of infrared heateing infrarentas bellow:
1. Infrared radiation in instant heating and the transmissivity of infrared is arrived to 70-75%
2. Far infrared heating transmission, in medium wave, wave length range of 2.2-3.5 micron
3. Health care & environmental protection
4. Can be work in vertically and horizontally
5. With highly heat stability and high temperature resistance
6. Max working temperature is 1300 ° C; Long term used under 1200° C
7.6000h service life, with SGS, RoHs approved
8. Widely used in infrared heater, cooking, oven, stove, baker, painting dryer, drying apparatus, dyeing, print, printer, copy machine, projector, sterilizing device, medical equipment
NEWS: All the information for reference only, all kinds of shape can be made by customers' request of electric infrared heating tube for oven

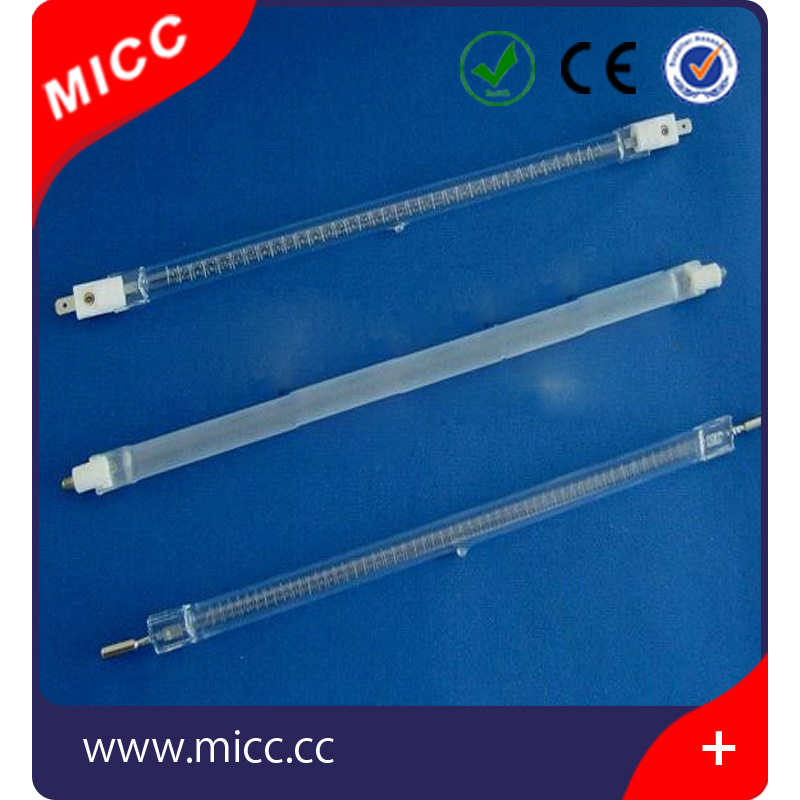

Pictures for infrared heating tube for oven
