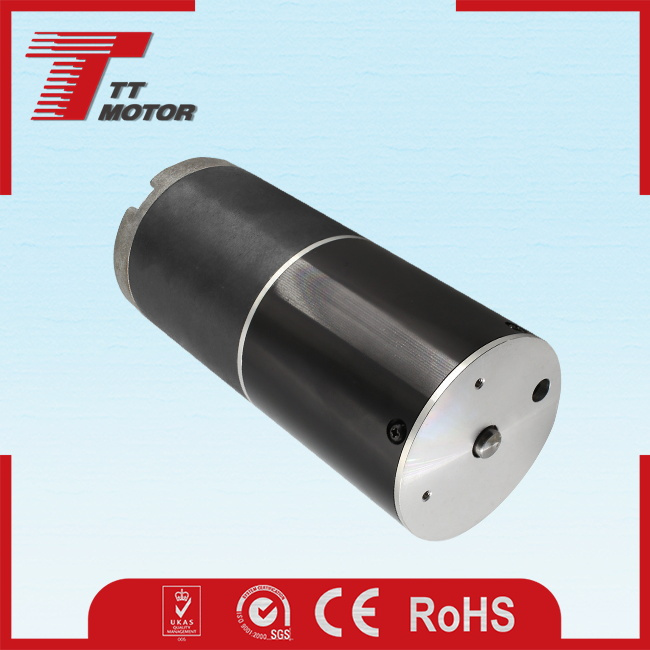

Heavy Equipment DC high torque 24V brushless motor

Prod Model:	DC Brushless Gear motor GMP60-TEC6065
Product Name:	DC Brushless Gear motor GMP60-TEC6065
Gear Type:	spur teeth
Output Shaft:	Stainless steel hardened
Main Gear:	Alloy steel
Ring Gear:	Steel
Adapter Plate:	Aluminium alloy
Bearing At Output:	Ball bearing
Axial Play:	0.05-0.5mm
Reduction Ratio:	3-1996
Rated Power:	3-90W
Application:	Power Tools
Operating Speed:	Low Speed
Structure And Working Principle:	Brushless
Excitation Mode:	Permanent Magnet
Type:	DC Brushless Gear motor
Certification:	RoHS CE
Brand:	TT motor

Product Description

Heavy Equipment dc high torque 24v brushless motor

Main Features
1.OEM/ODM 16mm gearbox plus 030&050 permanent magnet DC motor
2.Small size dc gear motor with low speed and big torque
3.60mm gear motor provide 30.0Nm torque and more reliable
4.Suitable to small diameter, low noise and big torque application
5.Reduction ratio:4,13,15,18,47,55,65,77,168,198,234,276,326


Motor model no.	Rated voltage	No-load speed	No-load current	Rated speed	Rated torque	Rated current	Output power	Stall torque	Stall current
	VDC	r/min	mA	r/min	g.cm	mA	W	g.cm	A
TRK-6097-2425	24	2500	0.25	2000	1500	1.8	30	7500	8.0

Gear motor technical data : GMP60-6097-2425-xxx

Reduction ratio	4	13	18	47	55	77	168	198	326
Length mm	36	48	48	59	59	59	70.2	70.2	70.2
No-load speed rpm	690	190	138	53	45	32	15	13	8
Rated speed rpm	555	153	110	42	36	26	12	10	6
Rated torque kg.cm	6	13	18	40	55	65	120	145	190
Max.momentary tolerance torque kg.cm	30	80	80	180	180	180	300	300	300

Product Application

Applications:
Business Machines:	ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage:	Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Home Entertainment and Gaming:	Gaming Machines, Video Games, Optical Disk Drives, RC and Power Toys.
Home Technologies:	Home Ventilation, Air Purifiers and Dehumidifiers, Range Hoods, Washers and Dryers, Refrigerators, Dishwashers, Floor Care, Whirlpool and Spa, Showers, Smart Metering, Coffee Machines.
Lawn and Garden:	Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.
Personal Care:	Hair Cutting, Hair Care, Massagers.
Power Tools:	Drills and Drivers, Sanders, Grinders, Polishers, Saws.
Camera and Optical:	Video, Cameras, Projectors.
