| Prod Model: |
S2800E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Rate: |
0.75-160kw |
| Voltage: |
380V |
| AC Drive: |
AC Motor Drives |
| Phase: |
1/3 Phases |
| VSD: |
Variable Speed Drive |
| Control Mode: |
Vector Control |
| VFD: |
Variable Frequency Drive |
| Size: |
Different Size |
| Weight: |
Different Weight |
| Warranty: |
18 Months |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Brand: |
Machtric |
| Main Circuit Type: |
AC-DC-AC |
Product Description

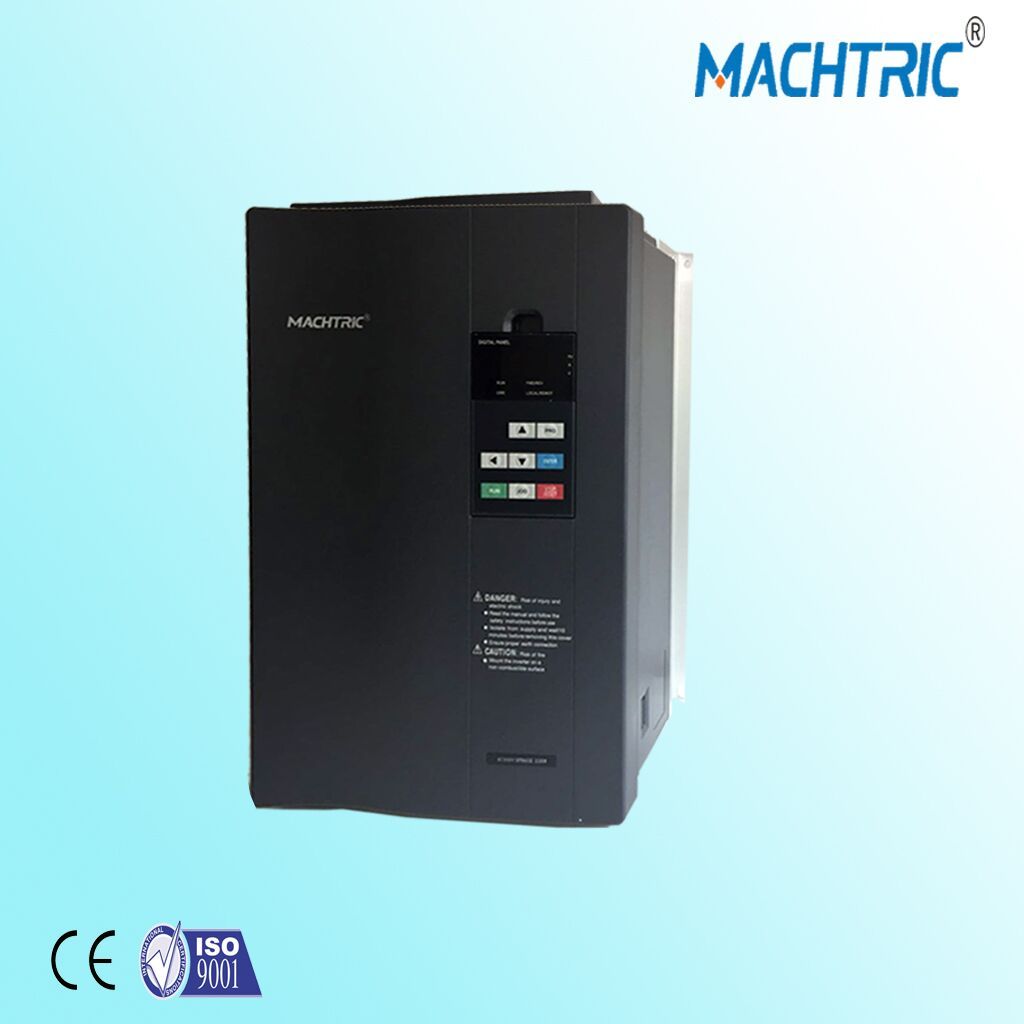

S2800 E Series Vector
Control Inverter
Excellent Quality, Perfect Performance
1. Specification
| Model | S2800 E |
| Input | Rated Voltage& Frequency | Single phase AC 220V/47~63Hz
Three-phase AC 380V/47~63Hz |
| Voltage Allowable Range | 220/380±15% |
| Output | Output Voltage Range | 1~rated input voltage |
| Output Frequency Range | 0~600Hz |
| Technical | Control Mode | Sensorless Vector Control, V/F control |
| Overload Capacity | 150% rated current in 60s; 180% rated current in 10s |
| Start Torque | 0.5Hz/150% with vector sensorless control |
| Adjustment Ratio | 1:100 with vector sensorless control |
| Speed Control Accuracy | Maximum speed ±0.5% with vector sensorless control |
| Carrier Frequency | 0.5~15Hz |
| Terminal | Programmable Digital Input | 4 terminals |
| Programmable Analog Input | FIV:0~10V, FIC:0~10V or 0~20mA |
| Coupling Output | 1 set |
| Relay Output | 1 set |
| Analog Output | 1 set-option of 4~20mA/ 0~10V |
| Function | Frequency Setting | Digital, Analog, Series communication, Multi-Speed, PID,
etc |
| PID Function | Built in |
| Multi-speed Function | 8 speeds |
| Adjustable frequency | Stable frequency |
| Off Power | Keep running in power off instantly |
| Jog Key Function | Multi-function setting by Users |
| Voltage Adjustment | Auto maintain output voltage stable in changing of power |
| Failure Protection | 25 types of failure protection: over current, over voltage
, low voltage,
over heat, short phase, over load, etc, |
2. Quick details.
Place of OriginFujian, China (Mainland)
Brand Name Machtric
Model Number S2800E
Output Power 0.75kw-160kw
Output TypeTriple
Input Voltage: 380V
Output Voltage: 380V
Type AC-DC-AC
Output Frequency 0.01-600.0Hz
3. ADVANTAGE OF PRODUCTS:
| Monthly production capacity | More than 10000 units. |
| Specification | Customized is accepted. |
| Delivery | 3-7 days after payment |
| Certification: | ISO 9001,ISO14001,OHSAS18001 & CE |
| Quality. | Implement strict quality testing and control procedure |
4.Target market of S2800 E series Inverter
Paper machinery Screw output device
Drawing Equipment Dyeing plant
Injection plastic equipment Air conditioning system
Machine tool equipment Boiler system
Chemical fiber equipment Water supply, oil transportation installation.
Textile equipment
5. Company Advantage:
- 10 years OEM/ODM Experience
- Manufacture in this field for almost 20 years experience.
- Reasonable price and punctual delivery time
- 70 R & D personnel have many years experience
- Received the National Invention Award
6. FAQ
Q: What is your payment ?
A: Our payment is by T/T. Western Union. L/C and Money.
Q: Is there a discount on the price of your product?
A: It depends the quantity of order.
Q:Is same quality between the sample and big order?
A:Our products are always as good as the samples we send, I can promise there will be no debasement of quality.
Q:Is the price for FOB?
A:Yes.
Q: How much is your minimum order quantity?
A: one pcs or unit.
Q: How do we send goods to customer?
Shipping by Express: DHL, TNT, UPS, Fedex, by Sea and by Air; Or customer forwarder are accepted.
