Helical Gearbox Ningbo Reducer, planetary gearbox

Name: Helical Gearbox Ningbo Reducer, planetary gearbox
Brand: all-electronics-online.com
SKU: 697805365
Availability: InStock
Rating: 4.8 (32 reviews)

Price:	US $ 110-112/Piece
Trade Terms:	FOB,others
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Helical Gearbox Ningbo Reducer
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	60, 70, 80, 90mm
Power:	3W, 6W, 10W, 20W, 40W
Voltage:	110V, 220V, 12 Volt
Frequency:	50Hz, 60Hz
Application:	Instrument
Phase:	Single
Coil:	Shell-type Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Separated Winding Transformer
Certification:	CCC, CE, UL. RoHS
Brand:	ZD MOTOR

Product Description

Helical geared gear reduction boxes

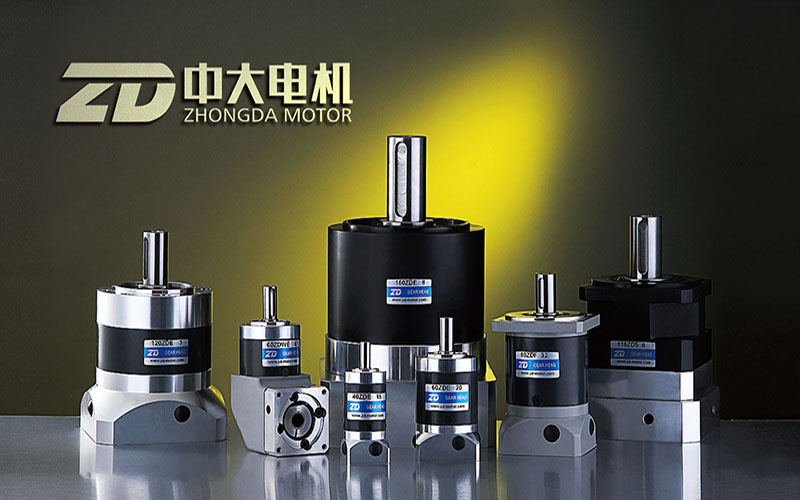

High precision planetary gearbox matched with serve motor, stepping motor are widely used. Lowest backlash<3"); High output torques; High efficiency(96%); Honed toothings; 22 ratios I=3, ...., 512; Low noise(<65dB(A)); Any mounting position; Easy motor mounting; Life time lubrication; Figure diameters 40, 60, 80, 120, 160mm. More options.

Planetary gearbox:
ZDE: Precision planetary-round flange output
ZDF: Precision planetary-square flange output
ZDWE: Precise planetary-right angle round flange output
ZDWF: Precise planetary-right angle square flange output
ZDS: Precise planetary-high rigidity, low back lash

Rated output torque	N. M	4.5-1800
Instant stop torque	N. M	Two times of rated output torque
Life	Hour	30, 000
Full load efficiency		90%, 94%, 96%
Operating temperature	° C	-25---+90
IP		IP54
Lubrication type		Lifetime lubrication
Mounting type		Any

Product type		PL40	PL60	PL80	PL120	PL1600
Torsional stiffness	N. M/arcmin	0.7	1.8	4.5	12	38
Noise	dB(A)	55	58	60	65	70
Max output speed	Min	10000	8000	6000	6000	6000
Recommend input speed	Min	4500	4000	4000	4000	3000

Ningbo zhongda leader transmission equipment Co., Ltd. is specialized in mini AC gear motors. At present, our main products are: Gear motors, three phase motors, speed control motors, brake motors, damping motors, torque motors, and DC gear motors. They are widely used in machine tools, textile machinery, medical appliance, conveying machines, printing mechanism, food machinery, vending machines, packing machinery, and gumming machines.

Our tenet is: Quality as foundation, reputation first, seeking for outstanding position. With excellent equipment, advanced procedure, scientific management, and modern test method, we can provide all customers both at home and abroad with our top quality products, favorable prices and sincere service.

We welcome interested companies to inquire about our products. We are looking forward to establishing long-term business relationships together with you for mutual business success.

History of ZD motor:

March 1996, start to make motor parts;

1998 start to make Y-series AC motor;

2001 start to produce micro AC gear motor;

2005 start to customize products for customer. Meanwhile, start to produce DC gear motor;

2006 start to produce small series AC gear motor;

2007 start to produce planetary gearbox and BLDC motor;

ZD is the first draft-man of national standardin 2008;

ZD is the first draft-man of standard in 2010;

ZD developed China's first high-precision helical planetary gear reducer in 2011;

ZD developed a robot-specific reducer in 2011.

Honors:

Ningbo's well-known trademarks;

Ningbo technology innovation model.

Ningbo patent demonstration enterprise;

Ningbo innovative pilot enterprises;

Ningbo Safety Standardization enterprises;

Chinese micro motor Union;

Chinese gear Union;

Chinese Electric parts Union;

Chinese Micro motor standardized Union;

First draft-man of Chinese standard of micro motor
