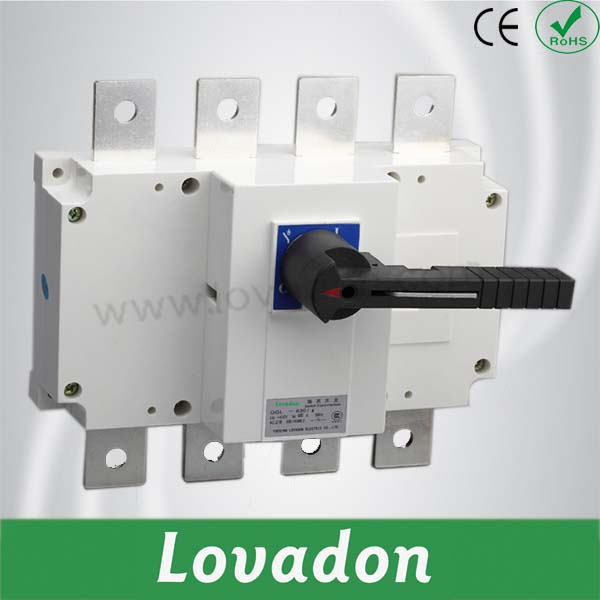

Hgl Series Load Isolation Switch

Name: Hgl Series Load Isolation Switch
Brand: all-electronics-online.com
SKU: 726261875
Availability: InStock
Rating: 5 (109 reviews)

Price:	US $ 10-40/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Hgl
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	White
Manufacturers:	Yes
Power Supply Changeover:	Main Power Supply Changeover to Standby Power
Changeover:	Changeover Between Two Load Equipment.
Reverse:	Reversion by Two Phases Changeover.
Full Bypassing Isolates The Equipment:	From Upstream and Downstream Currents
Type:	Low-voltage
Structure:	Double-column Disconnector
Installation:	Indoor High-voltage
Operation:	Manual
Grounding:	Un Grounded
Series:	Four
Run:	Swing
Switching Mode:	Single Throw-in
Common Model:	Hgl
Brand:	Lovadon or OEM

Product Description

HGL series load isolation switch mainly suitable for AC 50HZ,
Rated voltage to 600V, DC rated voltage up to 440V, rated current
Up to 3150A, The switch is used in infrequent making and breaking
Circuit.
HGL Series load isolation switch can work reliably under the following condition:
Height about level does not exceed 2000m
Ambient temperature is ntot higher than 40degree and not lower than -5degree; Relative humidity is not larger than 95%;
No explosive dangerous medium environment;
No rain and snow attack environment;
Note: If the load isolation switch is expected to be used in the condition that the ambient temperature is higher than +40degree or is lower
Than -5degree-45degree, customers should inform to the manufactory.

Ith A			40A	63A	80A	100A	125A	160A	200A	250A	315A	400A	500A	630A	1000A	1250A	1600A	2000A	2500A	3150A
Ui(V)			750	750	750	750	750	750	750	750	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000
V			5000	5000	5000	5000	5000	5000	5000	5000	8000	8000	8000	8000	10000	10000	10000	10000	10000	10000
Uimp KV (V)			6	6	6	6	8	8	8	8	12	12	12	12	12	12	12	12	12	12
Ie(A)	380V	AC21B	40	63	80	100	125	160	200	250	315	400	500	630	1000	1250	1600	2000	2500	3150
		AC22B	40	63	80	100	125	160	200	250	315	400	500	630	1000	1250	1600	2000	2500	2500
		AC23B	40	63	80	100	125	160	200	250	315	340	425	500	800	1000	1250	1250	1250	1250
	660V	DC21	40	63	80	100	125	160	160	200	315	400	400	500	1000	1000	1600	2000	2500	3150
		DC22	40	63	80	100	125	160	160	160	315	315	315	315	800	800	800	2000	2000	2000
		DC23	20	20	40	50	80	80	100	125	125	125	125	125	400	400	500	1000	1000	1000
	220V	AC21B	40	63	80	100	125	160	200	250	315	400	500	630
		AC22B	40	63	80	100	125	160	200	250	315	400	400	500
		AC23B	35	50	65	80	125	125	160	200
	440V	DC21	35	50	65	80	100	125	160	200	315	400	400	500
		DC22	35	50	65	80	100	125	160	200	315	400	400	500
		DC23	35	50	65	80	100	125	160	200
P(KW)		380V	25	35	45	55	63	80	100	132	160	220	280	315	560	560	560	710	710	710
		660V	20	30	40	45	75	75	90	110	185	185	185	185	475	475	475	750	750	750
Icw(KA Rms)0.1S/1.0S			0.756	0.756	1.2	1.2	20/10	20/10	30/12	30/12	40/20	45/20	50/25	50/25	90/50	90/50	90/50	90/50	80/50	90/50

Icn(A Rms)AC23B 400V			400	630	800	1000	1250	1250	2000	2000	3150	4000	4000	4000	10000	10000	10000	10000	10000	10000
Icn(A Rms)AC23B 400V			320	5.4	640	800	1000	1000	1600	1600	2500	3200	3200	3200	8000	8000	8000	8000	8000	8000
Icm(KA)			1.066	1.066	1.7	1.7	12	12	17	17	30	30	40	40	70	70	70	70	70	70
			10000	10000	10000	10000	10000	10000	10000	10000	5500	5500	5500	5500	4000	4000	3000	2500	2500	2500
