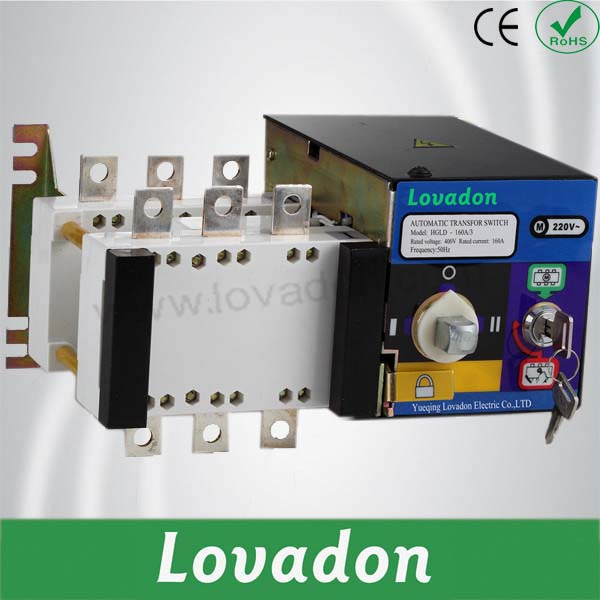

Hgld Series 400A Automatic Transfer Switch

Name: Hgld Series 400A Automatic Transfer Switch
Brand: all-electronics-online.com
SKU: 739320005
Availability: InStock
Rating: 4.7 (111 reviews)

Price:	US $ 48-55/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HGLD 160A/3Ea
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
The Manufacturer:	Yes
Processing Factory:	Yes
Insulation Voltage:	According to Customer Demand
Rated Voltage:	According to Customer Demand
Rated Current:	According to Customer Demand
Rated Current(a):	6, 10, 16, 20, 25, 32, 40, 50, 63
Power Supply Changeover:	Main Power Supply Changeover to Emergency Power
Changeover Revers:	Changeoverbetween Two Load Equipment
Cut Off + The Grounding:	Grouding and Short Circuit Realizes The Isolation
General Opening Functions Confirm:	with The Standards of IEC 947 and GB/T14048

Product Description

Output frequency: 50Hz
Output type: Dual
Output current: 125 to 1, 600A
Output voltage: 440V AC
Output power: >500W
Input voltage: 440V AC
High reliability and safety
Service life reaching above 8, 000 times
Superior electro-magnetic compatibility
CE- and CCC-approved
Rated current: 63 to 3, 200A
Poles: 3 and 4P
Suitable for shift of two-way power, transfer of load equipments and safe isolation
Certifications: IEC60947-3 and GB14048.3 standards

The switch has 3 poles or 4 poles (3 poles+on or off neutral pole).
27 current grades can be divided into 16A\20A\25A\32A\40A\50A\63A\80A\100A\125A\160A\200A\225A\250A\315A\350A\400A\450A\500A\630A\800A\1000A\1250A\1600A\2000A\2500A\3200A.
Basic Type:Mainstandby power,self-cast,self reset.
Type 1 ,100A below , city power-city power ,self-cast,self reset ,two way power three phase short phase testing .
Above 125A ,city power-city power ,main and standby or mutual power can do selection,
Self-cast ,two way power three phase checking.
Type II :city power-city power,main and standby or mutual power supply can do selection (that is self -casting self reset or self -casting without self reset) ,two way power three phase And lack phase,overload voltage checking .
Type III:city power-Oil machine ,self casting self reset ,two way power supply three phase and lack phase ,overload voltage ,oil machine frequency testing .Basic type switch control characteristic
Suitable for the two way main and standby power system ,self casting and self rest .
It can expand function by outer connection.
Type I switch control characteristic:
100A below:
A :Suitable for two way main and standby power system;
B:It will switch on to standby power supply circuit after switch delay( setting range 1-16S)
When the main power supply circuit short circuit and loop(switch off or short phase).
