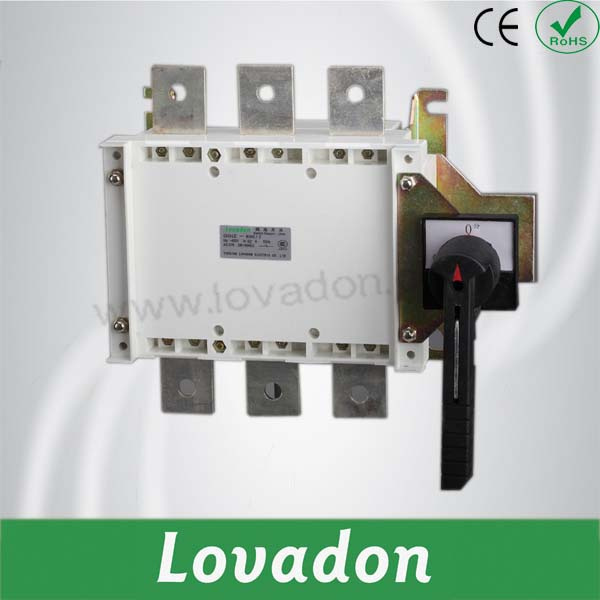

Hglz Series 250A 400V 50Hz Load Isolation Switch

Name: Hglz Series 250A 400V 50Hz Load Isolation Switch
Brand: all-electronics-online.com
SKU: 739387935
Availability: InStock
Rating: 4.3 (68 reviews)

Price:	US $ 10-20/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HGLZ 250/3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Manufacturers:	Yes
Power Supply Changeover:	Main Power Supply Changeover to Standby Power
Changeover:	Changeover Between Two Load Equipment.
Reverse:	Reversion by Two Phases Changeover.
Full Bypassing Isolates The Equipment:	From Upstream and Downstream Currents
Type:	Low-voltage
Structure:	Double-column Disconnector
Installation:	Indoor High-voltage
Operation:	Manual
Grounding:	Un Grounded
Series:	Three
Run:	Turn the Horizontal
Switching Mode:	Double-Throw Type
Certification:	CE
Common Model:	Hglz
Brand:	Lovadon

Product Description

HGLZ-125A~1600A change over load isolation switch
1	HGLZ-125A~1600A.The load isolation switch is suitable for the change-over of two sets of low voltage electric circuit or the change-over of 2 set of load devices or safety isolation.
2	Mode of operation:
	Direct operation: handle is installed on the switch.
	Operation outside the board: handle is installed outside the door of power distributing board
3	Products with observation windows can be provided according to the demand to observe directly the ON and OFF state of contact.
4	The products have three poles,four poles, and(three pole+ON and OFF neural pole).
5	Extended shate is used for there operation outside the board.
6	Two sets of auxiliary contacts can be assembled according to the demand.
7	Mechanical performance and electric property correspond to the mechanical performance and electric property of HGL-125A-1600A.
8	A bridge can provided to connect the inlet or outlet terminal of the switch.
9	the electric cable insulating cover can be assembled
Note	The bridge connection is chosen, an explanation is needed to indicate there indicate the inlet or outlet connected with it
