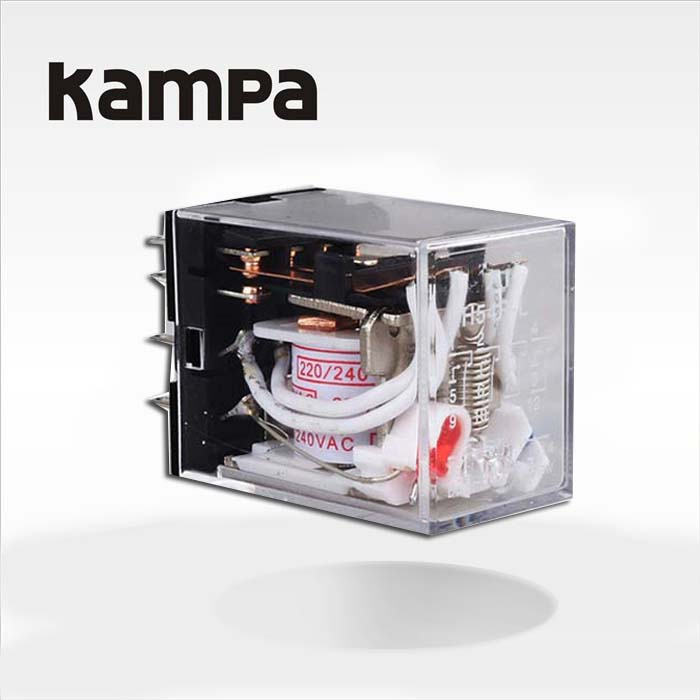

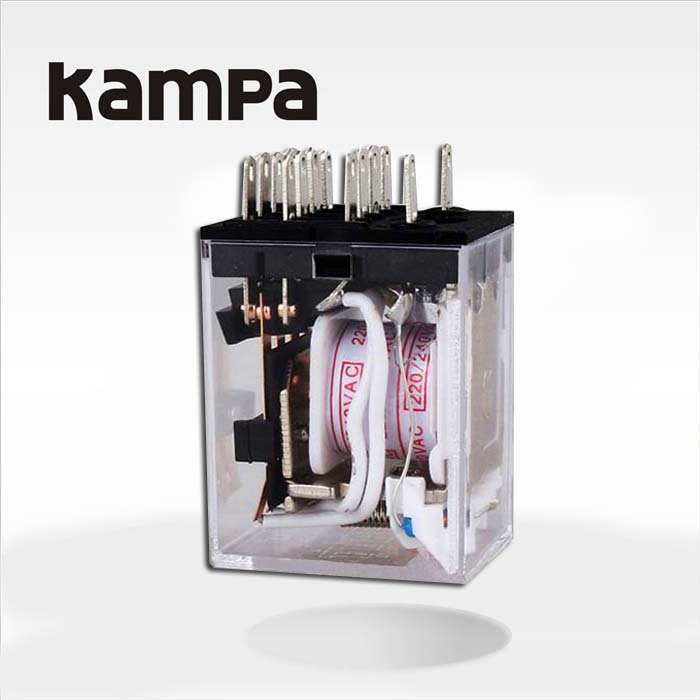

Hh54p My2nj Coil 24V 14 Pin 3A Mini Power Relay

Name: Hh54p My2nj Coil 24V 14 Pin 3A Mini Power Relay
Brand: all-electronics-online.com
SKU: 818564275
Availability: InStock
Rating: 5 (53 reviews)

Price:	US $ 0.92/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HH54P
Contact Type:	4z,1h,4D
Contact Overload:	3A
Rated Coil Power:	DC0.9W,AC1,2va
Coil Specification:	DC3V-220V AC3V-380V
Dimension:	27X21X35mm

Product Description

2.Description of general purpose relay

Product Model		HH54P (MY4NJ)

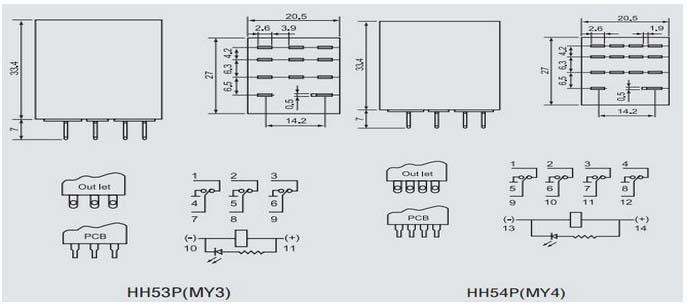

Outline Dimension(L×W×H) (mm)		27.5×21×35.5(mm)
Contact Form		4Z,4C
Initial Contact Resistance		50mΩ (1A 6VDC)
Coil Voltage		5VDC~110VDC; 6VAC~240VAC
Operate Time (at nomi. Volt)		25ms
Release Time (at nomi. Volt)		25ms
Coil Power(W)		0.9W, AC:1.2VA
Contact Rating		5A 250VAC/30VDC
Insulation Resistance		1000MΩ,500VDC
Dielectric Strength	Between Open Contact	1000VAC 1min.
	Between Coil and Contact	1500VAC 1min.
Electrical Life		1×105
Mechanical Life		1×107
Max. Switching Voltage		250VAC/30VDC
Max. Switching Current		7A
Max. Switching Power		90W/750VA
Impact Resistance		Stability 100m/s2 Intensity 1000m/s2
Humidity		98% R.H.+40%
Temperature Range		-55~+70°C
Vibration Resistance		1mm 50~55Hz
Construction		Dust cover

A.Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.

We Pay high Attention To Your Feed back after receive the goods.
We Provide 12 months warranty after goods arrive.
We Promise All Parts Available in lifetime use.
We Positively Revert Your Complain Within 48hours.
C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With AllTechnical Support From Engineer Team.
