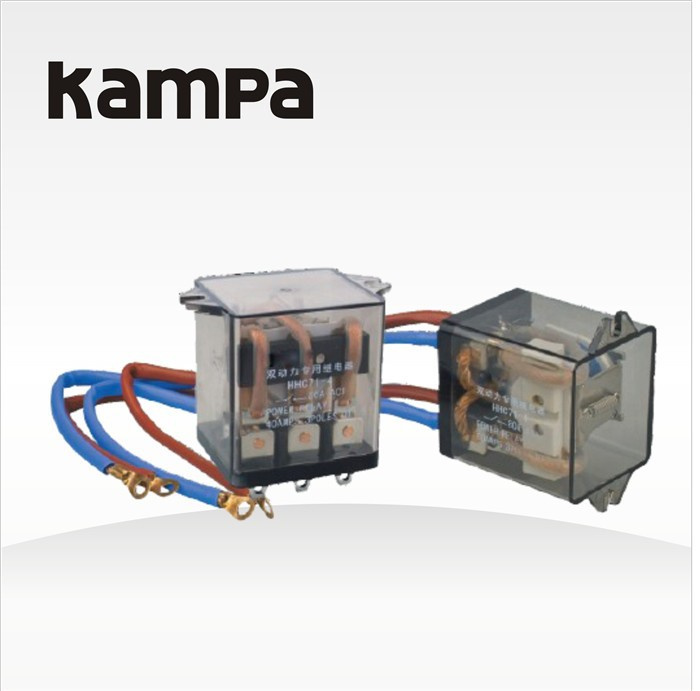

Hhc71-4 (JQX-78F) 60A General Purpose Big Power Relay

Name: Hhc71-4 (JQX-78F) 60A General Purpose Big Power Relay
Brand: all-electronics-online.com
SKU: 818567445
Availability: InStock
Rating: 4.3 (26 reviews)

Price:	US $ 0.92/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HHC71-4(JQX-78F) 60A
Contact Type:	2A.2b.2c
Contact Overload:	60A
Rated Coil Power:	DC0.9W,AC1,2va
Max Switching Voltage:	250VAC/30VDC
Dimension:	402288370mm

Product Description

Part NO.			HHC71-4(JQX-78F)

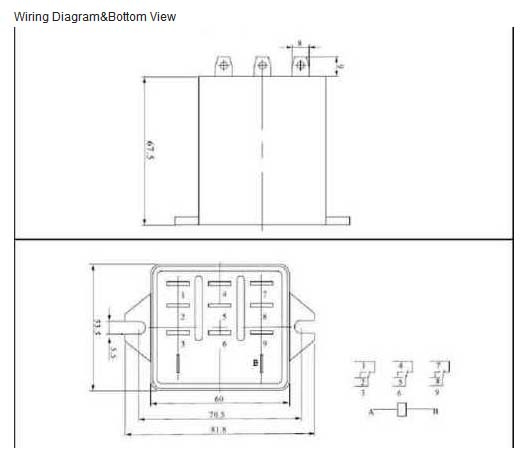

Dimension			*8153.567.5*
Contact Feature	Form		2A,2B,2C		3A,3B,3C
	Rated load		60A
	Max switchingvoltage		250VAC/30VDC
	Contact resistance		≤100mΩ
	Material		Silver Alloy
	Electrical life		*≥1105**
	Mechanical life		*≥1107**
Operate voltage (25)			*DC:≤75%Rated voltage**
			*AC:≤80%Rated voltage**
Release voltage (25)			*DC:≥10%Rated voltage**
			*AC:≥30%Rated voltage**
Maximum voltage (25)			*110%Rated voltage**
Normal coilvoltage		DC	6-220V
		AC	6-380V
Normal coil power		DC	4.5W
		AC	10.5VA
Pick-up time(Ratedvoltage)			≤25ms
Release time(Ratedvoltage)			≤25ms
Dielectric strength	Between Same-pole contacts		1500VAC/1min(leakage current 1mA)
	BetweenOpposite-pole contacts		1500VAC/1min(leakage current 1mA)
	Between contactsand coil		2500VAC/1min(leakage current 1mA)
Insulationresistance			≥500mΩ(500VDC)
Ambient temperature			-55~70
Ambient humidity			35%-80%RH
Atmosphericpressure			86-106KPa
Shock resistance			10G (sinusoidal half-wave pulse: 11ms)
Vibrationresistance			10-55Hz (double amplitude: 1.0mm)
Installation			SCREW
			Paper box(pcs)	/
	Inner box		Foam box(pcs)	6
			Paper box(pcs)	/
Packing	Outer box		Foam box(pcs)	60
	Dimension of thecarton		Paper box(pcs)	/
			Foam box(pcs)	*402288370MM*
	Weight		1PC	Approximate 260g
			1 CTN	G.W:10KGN.W:9KG
