Hhs4 Transistor Time Relay

Hhs4 Transistor Time Relay
Price: US $ 3.6-7.5/Piece
Min Order: 10/Piece
Pay Type: T/T
Prod Model: HHS4
Installation Mode: Devise Type or 35mm Guide Rail
Contact Capacity: 3A AC220V(Resistance)
Working Power: DC24V; AC24V, 220V, 380V
Hole Size: 56-2*Dia. 4.5mm
Repetitive Error: Less Than or Equal to 1%; Hhs4f: Less Than

Product Description

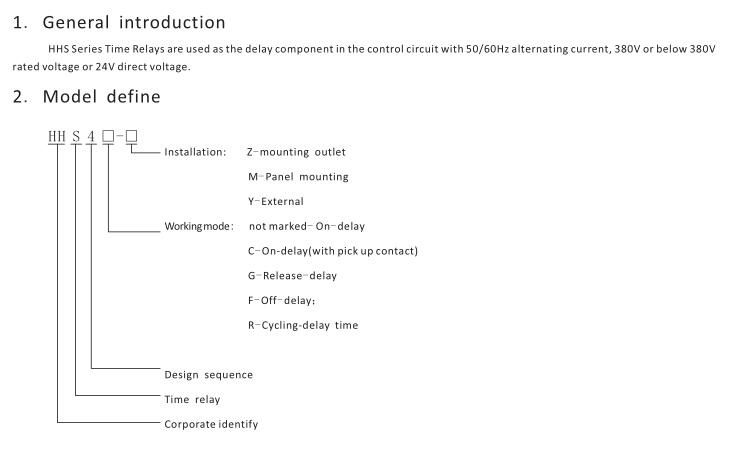

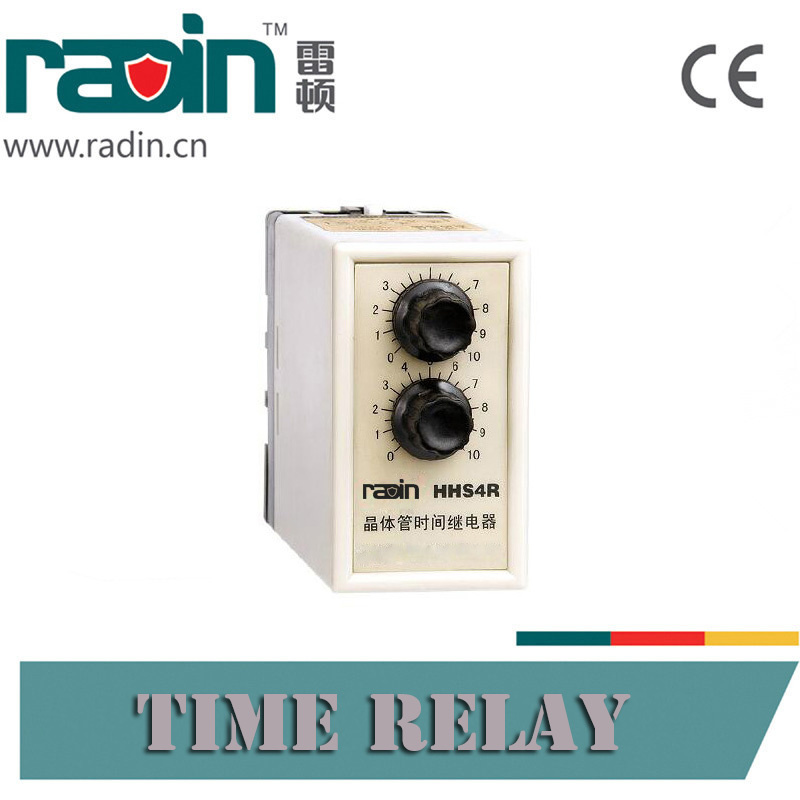

HHS Series Time Relays are used as the delay component in the control circuit with 50/60Hz alternating current, 380V or below 380V rated voltage or 24V direct voltage.
HHS Series Time Relays are not only characterized by the high time-delay precision and wide time delay range, but also possess two display modes: Increasing progressively display mode and decreasing progressively display mode. There are six working modes such as on-delay, off-delay, cycling-delay, star-delta starting-delay, release-delay working modes and so on.
HHS Series Time Relays with a complete range of products and novel appearance, are widely used in the control circuit of industrial automation.





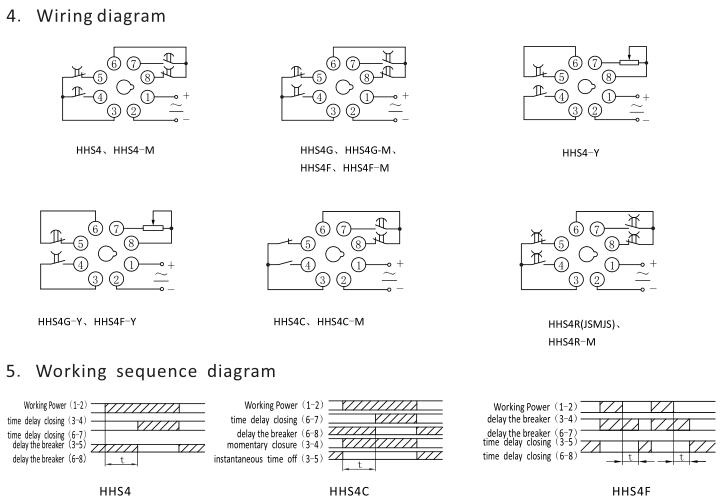

3. Main technology and specification


modelHHS4HHS4CHHS4GHHS4R(JSMJ)HHS4F
Supply voltageAC380V, AC220V, AC110V, AC36V, AC24V 50Hz;DC24V; allowable voltage influence (85%~110%)Ue
Timing Range

0.1s-1s, 0.5s-5s, 1s-10s, 3s-30s, 6s-60s, 12s-120s, 18s-180s, 30s-300s, 60s-600s, 90s-900s, 120s-1200s, 180s-1800s, 360s-3600s0.1s-1s, 0.5s-5s,
1s-10s, 3s-30s, 6s-60s, 12s-120s, 18s-180s
working mode

On-delayOn-delay (with pickup contact)Release-delayCycling-delay time

Off-delay
Repeative error

When delay time over one second, Er less or equal to 1%; when delay time less than one second, Dr less or equal 50msWhen delay time over one second, Er less or equal to 5%; when delay time less than one second, Dr less or equal 100ms
contact from

2C time delay1C time delay (with 1 C pick up contact)2C time delay
contact capacity

3A  AC220V(Resistance)

Electrical Life

100000 operations min

Ambient Temperature

-5ºC~40ºC

Altitude

≤2000m

Ambient Humidity

If the ambient temperature is 20ºC, the RH≤90%, if the ambient temperature is 40ºC, the RH≤50%

mounting mode

HHS4: mounting outlet, guide rail
HHS4-M: Panel mounting
HHS4-Y: External
HHS4: Mounting outlet, guide rail
HHS4-M: Panel mounting
HHS4G: Mounting outlet, guide rail
HHS4G-M: Panel mounting
HHS4G-Y: External
HHS4R(JSMJ): MOUNTING OUTLET, GUIDE RAIL
HHS4R-M: PANEL MOUNTING
HHS4F: Mounting outlet, Guide rail
HHS4F-M: Panel mounting
HHS4F-Y: External
