Hidden GPS Tracker with Geo-Fencing Control and Alarm (OCT800-D)
Price: |
US $ 38-45/Piece |
Min Order: |
1/Piece |
Pay Type: |
T/T,Western Union,Paypal,Money Gram |
Prod Model: |
OCT800-D |
Type: |
GPS Tracker |
Use: |
Automotive |
Operating Principle: |
Interferometric Type |
Port Number: |
Multichannel |
Model: |
Oct800-D |
Screen Size: |
No Screen |
Carrier Frequency: |
GSM 850/900/1800/1900MHz |
Brand: |
Oneralarm |
Certification: |
Ce, FCC, RoHS |
Product Description
Product Description

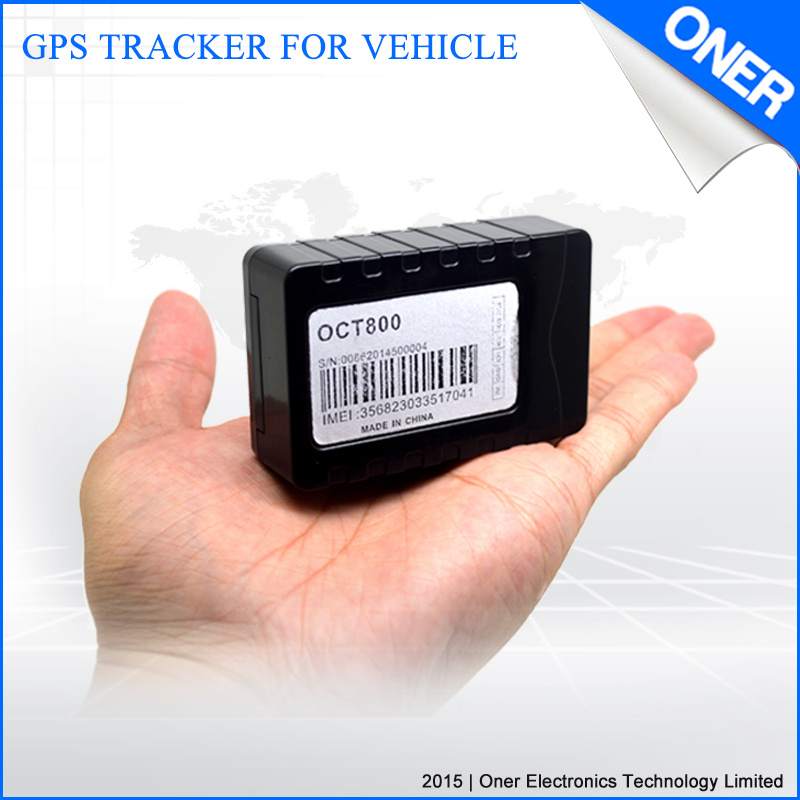

OCT800 is a very mini GPS car tracker, also for motorcyle GPS tracking, fleet GPS tracking, truck tracking. With stable and google GPS tracking system platform for good monitoring and management.
Stronger circut protection.
Customize customizations is avaiable.
Main functions about this mini GPS tracker:
GPS Tracking via SMS or GPRS
Living GPS location report via SMS or Web-Based GPS tracking platform
Tracking by time interval/distance/car moving veer

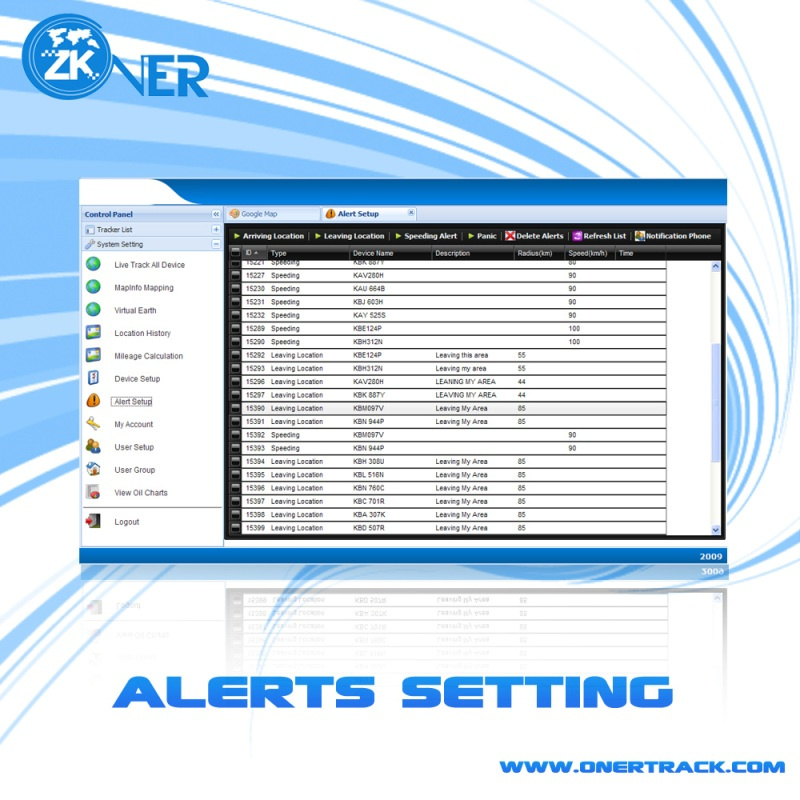

Geo-fence control and alarm
Speeding alarm
Actual address via SMS directly with tracking platform's support
Internal antennas for more safety
Google map link about location on google map via SMS and shows location on map
Optional function:
Engine cute
Mileage calculation
Low power alarm
ACC detecting
SOS button for SOS alarm
Crashing sensor for crashing alarm(OPTION)
GPS tracking system software
1. PC-Based software: Free service. SMS modem is available, optional.
2. Web-based GPS tracking platform: Several versions for choosing, also for sales.
Customization and design service is available for the GPS tracking software.



Items | Specifications |
Power Supply | +9V - +35V / 1.5A |
Backup Battery | 850mAh |
Dimension | 79mm x 57mm x 21mm |
Installation Dimension | 103mm x57mm x 21mm |
Weight | 145g |
Operating temperature | -20° to 55° C |
Humidity | 5% to 95% Non-condensing |
Frequency | GSM 900/1800/1900Mhz or GSM 850/900/1800/1900Mhz (optional) |
GPS Chipset | latest GPS SIRF-Star III chipset |
GPS Sensitivity | -158Db |
GPS Frequency | L1, 1575.42 MHz |
C/A Code | 1.023 MHz chip rate |
Channels | 20 channel all-in-view tracking |
Position Accuracy | 10 m, 2D RMS |
Velocity Accuracy | 0.1 m/s |
Time Accuracy | 1 us synchronized to GPS time |
Default datum | WGS-84 |
Reacquisition | 0.1 sec., average |
Hot start | 1 sec., average |
Warm start | 38 sec., average |
Cold start | 42 sec., average |
Altitude Limit | 18, 000 m (60, 000 feet) max. |
Velocity Limit | 515 m/second (1000 knots) max. |
LED | 3 LED light to show working status. |
Button | One SOS button |
Interface | 2 input and 1 output |
Guangzhou Zhuo Kai Electronic Technology Limited Company, a professional electronic technology company, is dedicated to IT promotion in enterprise, and Global Position System (GPS) and wireless mobile communication (GSM/GPRS), GPS tracking system, and Security monitoring system, with its unrivaled, proven solutions.
We offer specialized information integration solutions: Enterprise-internal management system, Comprehensive wiring, System integration, etc, especially in GPS real-time tracking system.
Guangzhou Zhuo Kai Electronic Technology Limited Company, the premier worldwide provider of wireless tracking and recovery systems for mobile assets, is the leader in the global intelligent tracking system. For example, construction and management of vehicle tracking centre, special vehicles (taxies, securicars, construction vehicles, police cars, tourist cars, etc. ), employee checking attendance, elders and kids protection and rescue, precious assets tracking and so on. With real-time tracking system, clients can receive best professional tracking and location service.
Company History
China Electronics Technology Group Corporation NO. 7 Institute
China Electronics Technology Group Corporation, founded in 1959, is the institute of China army tactical communication, China mobile communication, and first-class national military research centre.
Qian Long Electronics Technology Limited
In 2005, based on national market demands for IT promotion in enterprise and internet marketing, Qian Long Electronics Technology Limited was founded, affiliated to China Electronics Technology Group Corporation NO. 7 Institute.
Zhuo Kai Electronics Technology Limited
In 2007, in order to expand information technology application, Qian Long Electronics Technology Limited and Guangdong Information Industry Department decided to found Zhuo Kai Electronics Technology Limited, which is dedicated to IT promotion in enterprise, and Global Position System (GPS), wireless mobile communication (GSM/GPRS), GPS tracking system, and Security monitoring system. Also, it shoulders the responsibility to explore oversea market.
Accomplishments
1. In 2007, we succeeded in completing lots of projects, such as construction of center machine room for China Telecom in Haizhu Area, Comprehensive wiring project for Guangzhou gymnasium, Digital Camera monitoring system for Shenzhen Longgang high school, and Monitoring centre for Police station in Guangzhou. All the projects are successful and attain many praises from clients for both products quality and after-sale service.
2. In 2007, Zhuo Kai Electronics Technology Limited became member in China Software Association, Guangdong Information Association, Guangdong Electronic Commerce Association, and Guangdong Computer Chamber of Commerce.
3. In 2008, we succeeded in putting into markets GSM alarm, CT01, PT01, DIY tracking and monitoring system, GPS tracking system, fire monitoring centre, vehicle management centre, and GSM home alarm. Our products are widely applied by Tobacco Company and Quality Supervision Bureau and achieve great success.
4. In 2009, we developed GPS, GSM/GPRS products, widely applied in bus station voice announcement, mobile assets management, vehicle state examination.
Zhuo Kai Electronics Technology Limited is the premier worldwide provider of tracking and recovery systems for valuable mobile assets. Since 2007, it has earned a reputation as the proven global leader in the market.
