| Prod Model: |
OBD GPS Car Tracker 306 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty Time: |
1 Year |
| Certificate: |
CE FCC ISO |
| Size: |
64.5*50*27mm |
| Weight: |
60g |
| Network: |
GSM/GPRS |
| Band: |
850/900/1800/1900MHz |
| GPS Sensitivity: |
-165dBm |
| GPS Accuracy: |
5m |
| Backup Battery: |
Yes |
| Delivery Time: |
3-7 Days |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Chip: |
SiRF |
| Model: |
GPS 306-a |
| Screen Size: |
No Screen |
| Brand: |
Coban |
| Certification: |
CE FCC ISO |
Product Description

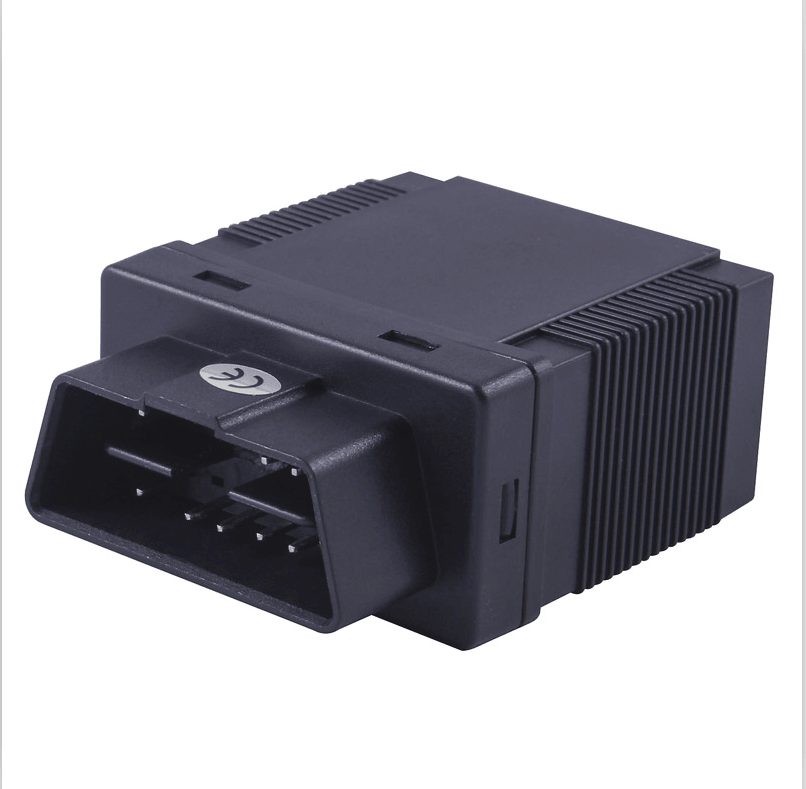

Model: GPS tracker TK-306
It is based on GSM/GPRS(850/900/1800/1900MHZ) and GPS satillite global position system .
1. Summary
This product is based on GSM / GPRS network and GPS satellite positioning system, built-in GSM and GPS antenna, built-in 2.4G attendance management functions. Insert into the car OBDII interface directly to read the data from car computer, you can locate and manage the vehicle remotely via SMS or GPRS. Easy to install, no wiring harness.
GPS306 is our newly designed plug-and -play OBD tracker. It could read OBD parameters from car ECU and GPS tracking for car location; All data will be transmit to the backend server for remote diagnostic and tracking purpose.
obd2 sim card gps tracker with diagnostic & alarm function obd2 sim card gps tracker with diagnostic & alarm function obd2 sim card gps tracker with diagnostic & alarm function obd2 sim card gps tracker with diagnostic & alarm function
2. Main Function Description
1.Vehicle OBD II tracker (9-40V)
2.Location based service(LBS) + GPS double real time tracking solution Monitor
3.SOS panic button
4.Geofence,movement,overspeed alarms.low battery, ext.power off alarm.
5.Alarms under ARM :Shock/ACC alarms.
6.Request for OBD data by SMS:
Fuel measurement
fuel consumption
mileage
speed
engine status
Diagnostic Trouble Codes,etc
7.Notification of Vehicle fault nd maintenance notification
8.multi power-saving mode :
Sleep by time / shock sensor
deep sleep
awake at specific time
9.Save GPRS traffic mode
10.Built-in memory for 16,000 positions
11.Built-in 200 mA polymer battery
12.SMS tracking on cell phone with google map link
13.Absolute street address by SMS
14.Web server, free PC tracking soft, Mobile phone APP
4. Applying directions:
obd OBDII car / vehicles fleet / asset management
5.Technology parameter:
*Network: GSM/GPRS
*Band: 850/900/1800/1900Mhz
*GPS sensitivity: -159dBm
*GPS accuracy: 5m
*Time To First Fix:Cold status 45s, Hot status 1s
gps tracker obd with voice monitor / OBD date checking alarm gps tracker obd with voice monitor / OBD date checking alarm
6. Specification
7.How to tracking ?
The GPS devices support phone tracking and 16 languages website tracking. (English,Spanish,Portuguese,Arabic,Thai language,Italian,German,Chinese,French...)
Five types Tracking way:
A>: SMS + Map software;
B>: PDA Cell Phone;
C>: Real time tracking, and track via your computer;
D>: simple & useful real time tracking via our website www.gpstrackerxy.com
E >: IOS and Android APP
Web based online tracking system www.gpstrackerxy.com user id: demo, password:8888
