| Prod Model: |
GPS305 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dim: |
23.5*110mm |
| Weight: |
50g |
| Network: |
GSM/GPRS |
| Band: |
850/900/1800/1900MHz |
| GPS Sensitivity: |
-159dB |
| Battery: |
Chargeable Changeable 3.7V 700mAh Polymer Batter |
| Map: |
Real-Time Google Maps |
| Tracking Solutions: |
SMS, GPRS Web Platform, APP Tracking |
| Warranty Time: |
12 Months |
| Apllication: |
Bicycle GPS Tracker |
| Type: |
GPS Tracker |
| Use: |
Automotive&Hand Held |
| Carrier Frequency: |
Dual-Frequency |
| Operating Principle: |
GPS Position and GSM Transmit Data |
| Port Number: |
20 |
| Model: |
Bicycle Tracker GPS305 |
| Screen Size: |
No |
| Chip: |
No |
| Brand: |
Baanool GPS Tracker |
| Certification: |
ISO9001 |
Product Description

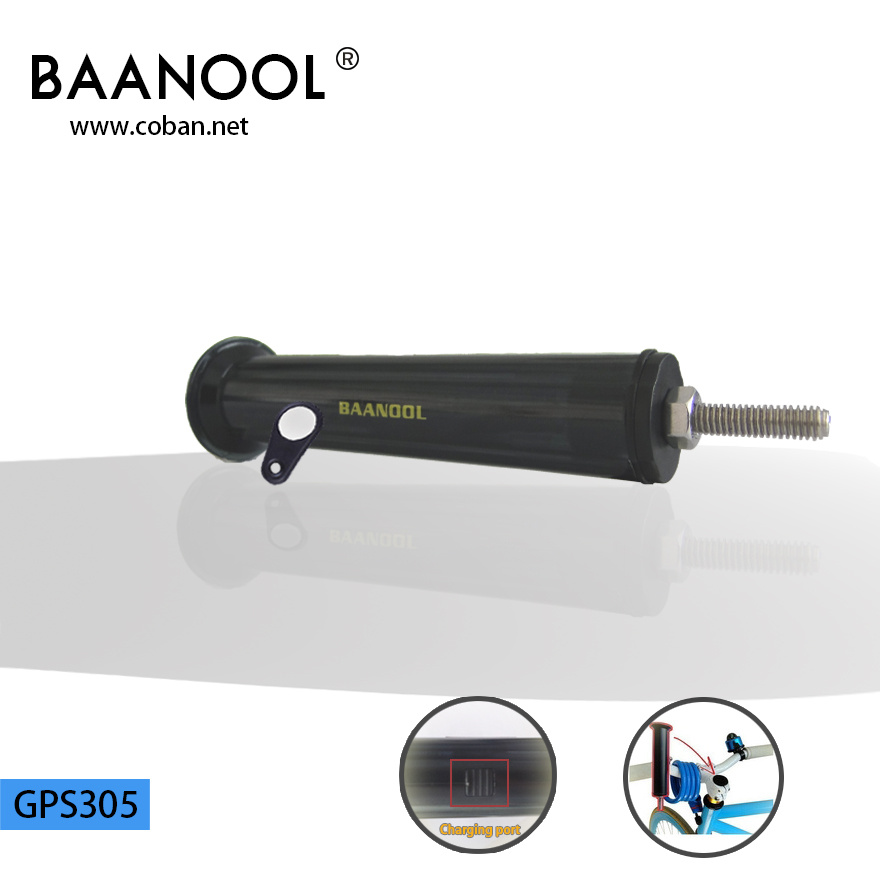

Hidden waterproof Bicycle Bike GPS Tracking System GPS305 tracker with cheap price
GPS Tracker,which set multiple functions of accurately positioning,security, monitoring surveillance, emergency alarms and tracking in its entirety,special for vehicle.The product fully supports the functions of SMS / GPRS / Internet data transmission,to make it more widely used in large-scale monitoring, emergency scheduling, location-based services, traffic safety and many other areas of management.TK305 How is working ?
Simply insert a GSM sim card into the GPS unit. Whenever you call the unit it will respond with the coordinates of its location thru a SMS message. You can then use these coordinates on any mapping software (for example google earth) which will show where exactly the unit is located.
With some little setup, you can also have the device to send the data directly to a computer through GPRS and display its location on a map with our bundled software for real-time location tracking. our online software tracking platform is:www.gpstrackerxy.com (server 1,demo id:demo,password:8888)
Main Function discription
1. Real-time track bicycles
2. Set Authorization(5 mobile phone numbers to be allowed to authorize in the tracker)
3. Scheduled wake-up:
Send SMS command"schedule+password+space+7d"to GPS unit, tracker will wake up each 7days and report location (m: minute, h: hour, d: day) the maximum interval at most is 3 digital
Cancel scheduled wake-up: After wake up, send sms"nonschedule+password", this function can be canceled.
4. Auto track continuously:track by time and distance interval.
5. Location based service(LBS) + GPS double real time tracking solution
6. Sleep by shock sensor mode, sleep by time mode, multiple power-saving mode
7. get Absolute street address by SMS
8. Arm/disarm
9.Shock alarm
10.Geo-fence
11.Movement alarm,overspeed alarm,low battery alarm
Applying directions
Used widely for bicycle and other moving objects tracking.
Specifications
Content | Specs |
| DIM | 23.5*110mm |
| Weight | 50g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Charger Voltage | 110-240V input
3.7V output |
| Battery | Chargeable changeable 3.7V 700mAh Li-ion battery |
| Standby time | 30days |
| Storage Temp | -40°C to +85°C |
| Operation Temp. | -20°C to +70°C |
| Humidity | 5%--95% non-condensing |
GPS305 standard package content:
GPS unit
Inductive Key
700mA Cylindrical Li-ion battery (2 pieces)
305 Dock charger
M6 Screw(with nut)
Giftbox
Manual
CD
Tracking solutions:
- SMS tracking by calling, return google map link
- Absolute street address by SMS
- Free PC based tracking application
- Optional web server
Warranty
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models. We will bear maintenance cost during warranty.
Delivery
1. Sample and small order will be delivered within 2-3 working days after the receipt of payment.
2. For order over 500PCS or customized order, lead time will be 5-7 days after the receipt of payment. Please contact our sales to make sure the current inventory.
