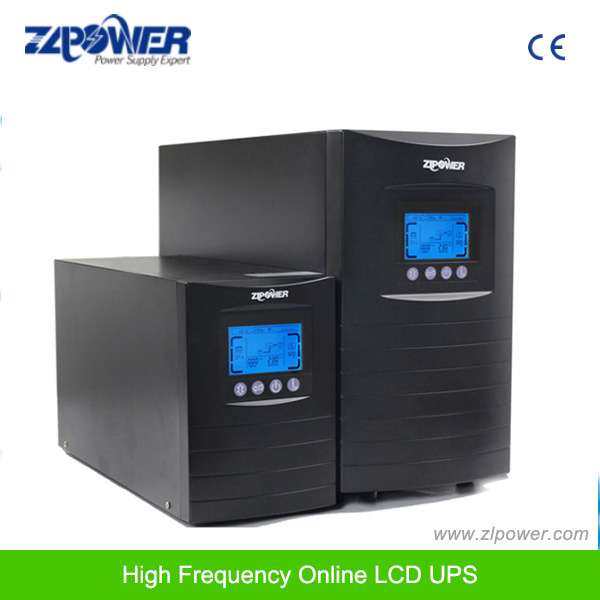

Hige Frequency Online UPS 1kVA-3kVA LCD Display

Hige Frequency Online UPS 1kVA-3kVA LCD Display
Price: Negotiable/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 6/Piece
Pay Type: L/C,T/T,Money Gram
Prod Model: EX1KVA-EX3KVA
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: White & Black
Communication: dB-9 Port: RS232 Series Interface
Intelligent Slot: Snmpcard, As400 Card or Winpower CMC/(U
Parallel Port: up to Three Units in Parallel for Power Redundancy
Fhase: Three Phase(4 Wires+Ground)
Overload Capacity: 105%~130% for 10 Min, >or =130%
Phase: Single Phase
Type: On-line
Protection: Multi Protection
Brand: Zlpower

Product Description

UPS on-Line UPS Pure Sine Wave Double Conversion 1KVA 3KVA LCD UPS

Application: EX Series 1KVA~3KVA High frequency online UPS is specially designed for servers, data-center critical network devices, sensitive electronic equipment, telecom, bank, hospital, bureau, traffic, public security, ATM and so on.
Key Features:
Large Blue Ground LCD digital display shows Detailed Real-Time UPS Status and parameters.
Set Output Voltage, Frequency parameter and bypass function on the display.
Advanced MCU microprocessor control technology, ensure long life reliability.
Wide input voltage range, Zero transfer time
Excellent Protection against over voltage, over load, over current, over charge and so on.
Input L and N lines reverse wiring detection, Auto start when AC back.
DC start function, Input PFC revise function.
Humanization bypass output, can be adjustable.
Smart RS232 communication with monitoring software
Intelligent slot available for AS-400 Dry contact and SNMP card Remote control
Strong antijamming capability Lightning, surge, short circuit, Network/fax/modem surge protection
UPS ModelEX1KEX1KLEX2KEX2KLEX3KEX3KL
Capacity1000VA/700W2000VA/1400W3000VA/2100W
InputVoltage(115~300) VAC
Frequency46~54Hz/56~64Hz (Adjustable via LCD panel)
OutputVoltage220/230/240 (1± 1%) VAC (Adjustable via LCD panel)
Frequency50/60Hz (Adjustable via LCD panel) 50Hz AC Mode: Follow AC Mode(AC Range 46~54Hz); Battery Mode: 50Hz (1± 0.2%) 60Hz AC Mode: Follow AC Mode(AC Range56~64Hz); Battery Mode: 60Hz(1± 0.2%)
Output Wave FormSine Wave
Back-up TimeFull Load≥ 5′Depends on the capacity of the external battery bank≥ 9′Depends on the capacity of the external battery bank≥ 5′Depends on the capacity of the external battery bank
Half Load≥ 14′≥ 21′≥ 15′
Battery Nominal DC Voltage36VDC96VDC
Transfer Time0ms
Overload Capacity110%~150% maintain 30s then turn to bypass output, over 150% maintain 300ms
CommunicationsRS-232+Intelligent Slot
EnvironmentTemperature0C~40C
Humidity15%~90%
Dimensions (W*D*H)mm145*400*220192*460*340
Net Weight (Kg)1473413.534.514
About ZLPOWER

Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.

As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.

Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.

In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.

Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.

ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
