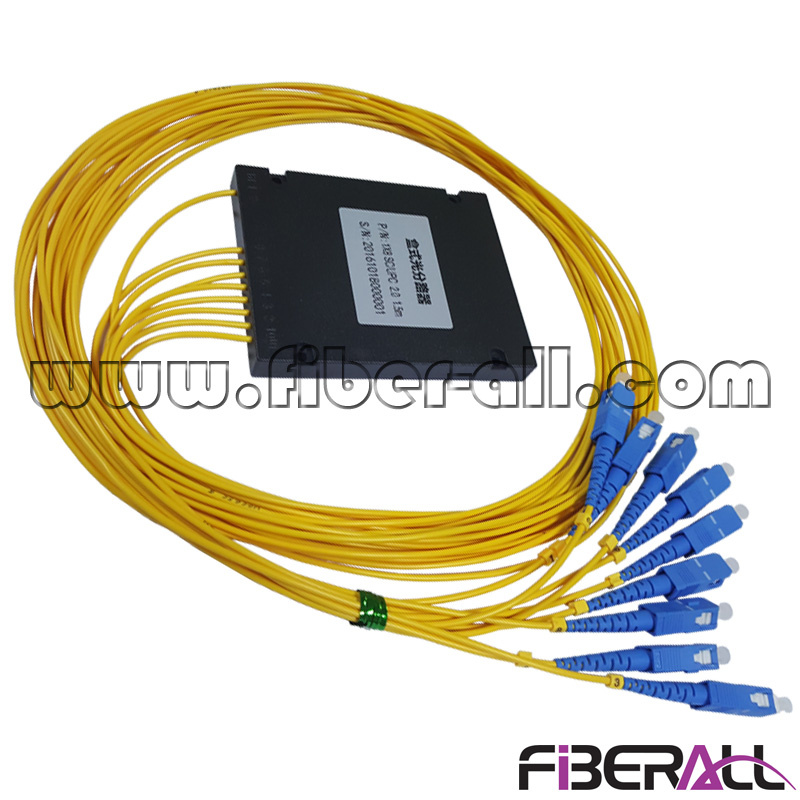

High Accuracy ABS Type 1X8 FTTH Fiber Optic PLC Splitter

High Accuracy ABS Type 1X8 FTTH Fiber Optic PLC Splitter
Price: US $ 6-25/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal,Money Gram
Prod Model: FA-PLCA1×8SP
Connector Type: Sc,LC,St,FC, Customized or Without Connector
Input/Output Length: Customized
Input/Output Diameter: 0.9mm, 2.0mm, 3.0mm
Jacket Color: Default or Customized Based on MOQ
Jacket Material: PVC or LSZH
Fiber Type: G.657A1 or Customized
Wavelength: 1260~1650nm
Optical Ratio: Average
OEM: Available
Polishing Type: PC,Upc
Wiring Devices: Integrated Wiring
Certification: GS
Condition: New

Product Description

FA-PLCA1×8SP,High Accuracy ABS Type 1x8 FTTH Fiber Optic PLC Splitter

Product Introduction:
Fiberall Fiber Optical PLC(Planar Lightwave Circuit) Splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (OLT) to multiple premise locations (ONU). It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting as a low-cost solutions. Fiberall has ability to provide all arrange of 1xN and 2xN PLC splitters that are tailored for specific applications.

Applications:
1.CATV/CCTV Links
2.FTTX Systems (FTTB, FTTC, FTTD, FTTH, FTTO, FTTP, FTTZ etc)
3.PON Networks (EPON, BPON, GPON)
4.Access/Metro Networks
5.Optical Signal Distribution
6.Long Haul Telecommunication

Performance Features:
1.Low insertion loss
2.Low PDL (Polarization Dependent Loss)
3.High Polarization Extinction
4.Excellent channel-to-channel uniformity
5.Compact size
6.Wide operating wavelength: 1260nm~1650nm
7.Wide operating temperature: from -40°C to 85°C
8.High reliability and stability (-40°C~85°C)
9.Bend sensitive G657A fiber

Standard Compliance:
Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
RoHS
YD/T 2000.1-2009 (China National)

Technical Parameters Of 1x8 Optical PLC Splitter
ParameterUnit1x8
Premium Grade
Insertion LossMax.dB10.5
Channel UniformityMax.dB0.8
Polarization Dependent Loss (PDL)Max.dB0.2
Operating Wavelength1260~1650 nm
Return LossUPC/APCMin.dB50/55
DirectivityMin.dB55
Operating TemperatureºC-40~85
Storage TemperatureºC-40~85
Connector OptionsSC, LC, ST, FC etc.
Fiber TypeComplied to G.657A1 or Customized
 Typical value is at +23 ºC.

Shenzhen Fiberall Technology Co., Ltd was started in 2007 and we are located in Shenzhen China. As a company engaged in fiber optical engineering related products, our main business including: Research and development (R&D), manufacturing, marketing; Optical engineering solution design; Maintenance, consulting service and accessories outsourcing.

Our main products are: All kinds of Fiber PLC Splitters, FBT Couplers, Fiber Cable Assemblies, Patch Cords, Fiber Pigtails, Fiber Adapters, Patch Panels, Fiber Optical Transceivers, OLT (Optical Line Terminal), OUN (Optical Network Unit), FTTX, Equipments & Accessories for Fiber Test, Installation, Maintenance & Repair.

With eight years' experience in fiber optic, Fiberall established a relatively perfect products and service system, with rich industry experience, comprehensive technology and high-quality team, we are able to provide our customers with OEM & ODM service, project implementation, maintenance, and after-sale service and we have ability to meet different requirement from different customers like distributors, operators, contractors and users etc.
