High Accuracy AC Oscilloscope Clamp Current Probe

Name: High Accuracy AC Oscilloscope Clamp Current Probe
Brand: all-electronics-online.com
SKU: 672683421
Availability: InStock
Rating: 4.8 (129 reviews)

Price:	US $ 25/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Q110
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Types:	Oscilloscope Clamp Current Probe
Primary Current:	0-1200A
Secondary Current:	0-5A
Class:	0.2, 0.5
Working Temperature:	-20~55 Deg
Dimension:	163mm310mm34mm
Diameter:	110mm
Output Signal:	0-1A , 0-5A, 0-1V, 0-5V AC
Installation:	Clamp Type
Ratio:	1000: 1 or 2000:1, Customized
Material:	Permalloy
Application:	Instruments

Product Description

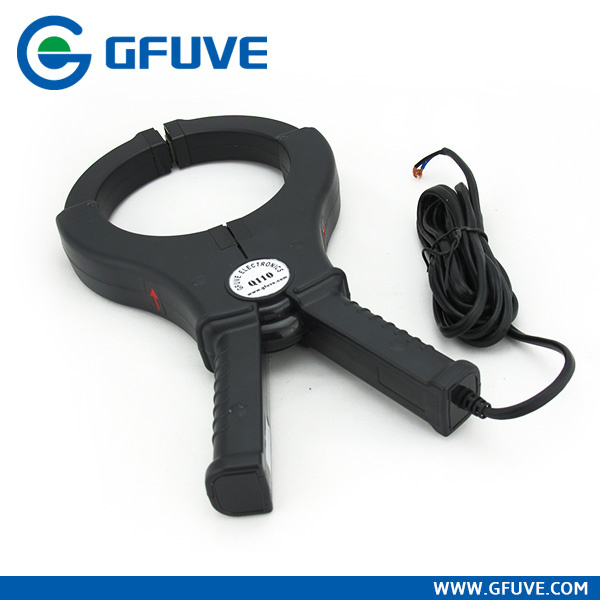

Q110 High Accuracy ac Oscilloscope Clamp Current Probe
Product Description
Q110 High Accuracy ac Oscilloscope Clamp Current Probe belongs to high performance transformer field. It is a high accuracy AC current transformer which can measure and analyze a variety of electric parameter without power outage, and the difficult part in technology development is that the high quality magnetic core requests open freely.
Characteristic and application
This product can be used in large current situation, also can cooperate to cable fault tester and cable identification device, used for cable test work.
Holding wire diameter: Φ 110mm
Dimension: 163mm× 310mm× 34mm
Load capacity: Ma output≤ 4Ω , 1A output 0.1Ω , 5A output 2.5VA
Installation: Clamp type
Output mode: Lead output

Primary current	Secondary current	Precision
600A ~ 1000A	1A	Class 0.2%, 0.5%
600A ~ 1000A	5A	Class 0.2%, 0.5%

Ratio	1000: 1 or 2000:1 , customized
Nominal input current	1000 A
Max. Cont. Input current	1200A
Accuracy	0.2% , 0.5%
Over voltage category	CAT III 600 V
Output signal	500mA,1A,5A AC at nominal input current
Frequency range	40 Hz-2000 Hz
Dielectric strength	3KV 50Hz/60Hz at 1 minute
Temperature range	-20 °C to +55 °C
Output	2.5 meter cable with D01 connector
Max. voltage not insulated conductors	600 V
Max. jaw opening	110 mm
Standard	EN 61010-1
Dimensions	163mm x 310mm x 34mm
Weight	900 g

Beijing GFUVE Electronics Co., Ltd. Was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces split core current transformer, high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, current probe, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, handheld terminal and POS terminal, and power meter, power analyzer, intelligent digital meter, transducer, voltage transformer and current transformer models etc.

GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory of current probe. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, South east and Africa.

We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
