High Accuracy Aluminium Bending Miniature Weighing Sensor

High Accuracy Aluminium Bending Miniature Weighing Sensor
Price: US $ 5/Piece
Min Order: 20/Piece
Pay Type: T/T,Western Union,Paypal,Money Gram
Prod Model: QL-56
Aplication: Micro Scales
Type: Micro Load Cell
Capacity: 100g to 1000g
Excitation Voltage: 6 VDC
Pattern: Mini Load Cell

Product Description

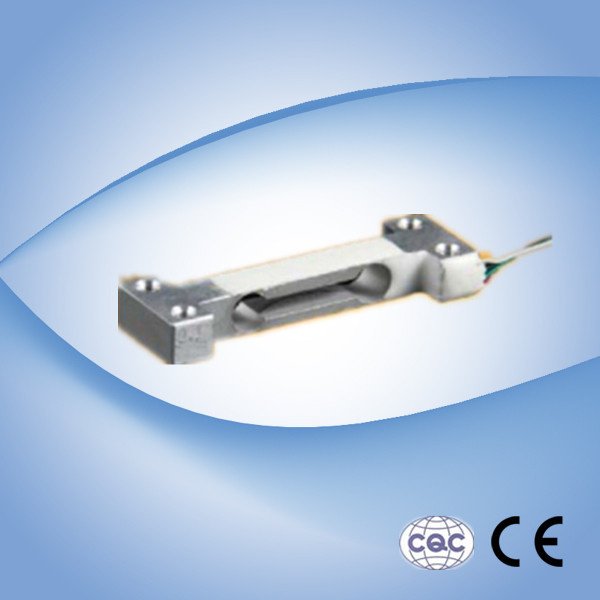

High Accuracy Aluminium Bending Miniature Weighing Sensor

Product Details:

QL-56 mini load cells are available in the capacities from 100 g to 750 g.
Aluminum alloy construction with parallel beam type.
Silicon adhesive sealed, surface anodized and anti-corrosion.
Integral structure and easy installation.

Features:
Capacity :100 g of 750 g
High accuracy 0.05%FS
Aluminum alloy parallel beam load cell
Integral installation

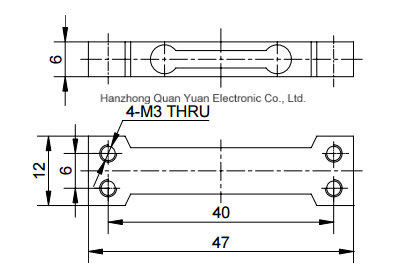

Dimensions:

Technical Specifications


Specifications:
capacityg100,200,300,500,750
safe overload%FS150
rated outputmV/V0.7 ± 0.1
excitation voltageVdc≤6
combined error%FS0.05
zero unbalancemV/V± 0.1
non-linearity%FS± 0.05
hysteresis%FS± 0.05
repeatability%FS± 0.05
creep(10min) %FS± 0.05
input resistanceΩ1100 ± 30
output resistanceΩ1000 ± 10
insulation resistanceM Ω≥ 2000 @ 50 Vdc
operating temperature rangeºC-10 ~ +40
temperature coefficient of SPAN%FS/10ºC± 0.05
temperature coefficient of ZERO%FS/10ºC± 0.3

Electrical connection:

Excitation+ red     Excitation- black   Signal+ green   Signal- white
Four -color single line
Cable length: 150mm
Cable diameter: 0.6±0.1 mm

Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.

QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).

All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.

In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.

Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
