| Prod Model: |
FU-100 |
| Ratio: |
1000: 5 or 2000:5 , Customized |
| Overload Withstand: |
1.2 Times Rated Current Continuously |
| Accuracy: |
0.2%, 0.5 %, 1% |
| System Voltage: |
720V(0.72kv) |
| Frequency Range: |
40 Hz-500 Hz |
| Dielectric Strength: |
3kv 50Hz/60Hz at 1 Minute |
| Max. Jaw Opening: |
100 mm |
| Dimensions (W×d×h) (mm): |
170mm X 184.5mm X 41 mm |
| Operating Temperature: |
-25 to +55°c |
| Relative Humidity: |
0-85% Non-Condensing |
| Application: |
Lighting |
| Phase: |
Single |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Multi-winding Transformer |
| Brand: |
Gfuve |
Product Description
Product details:

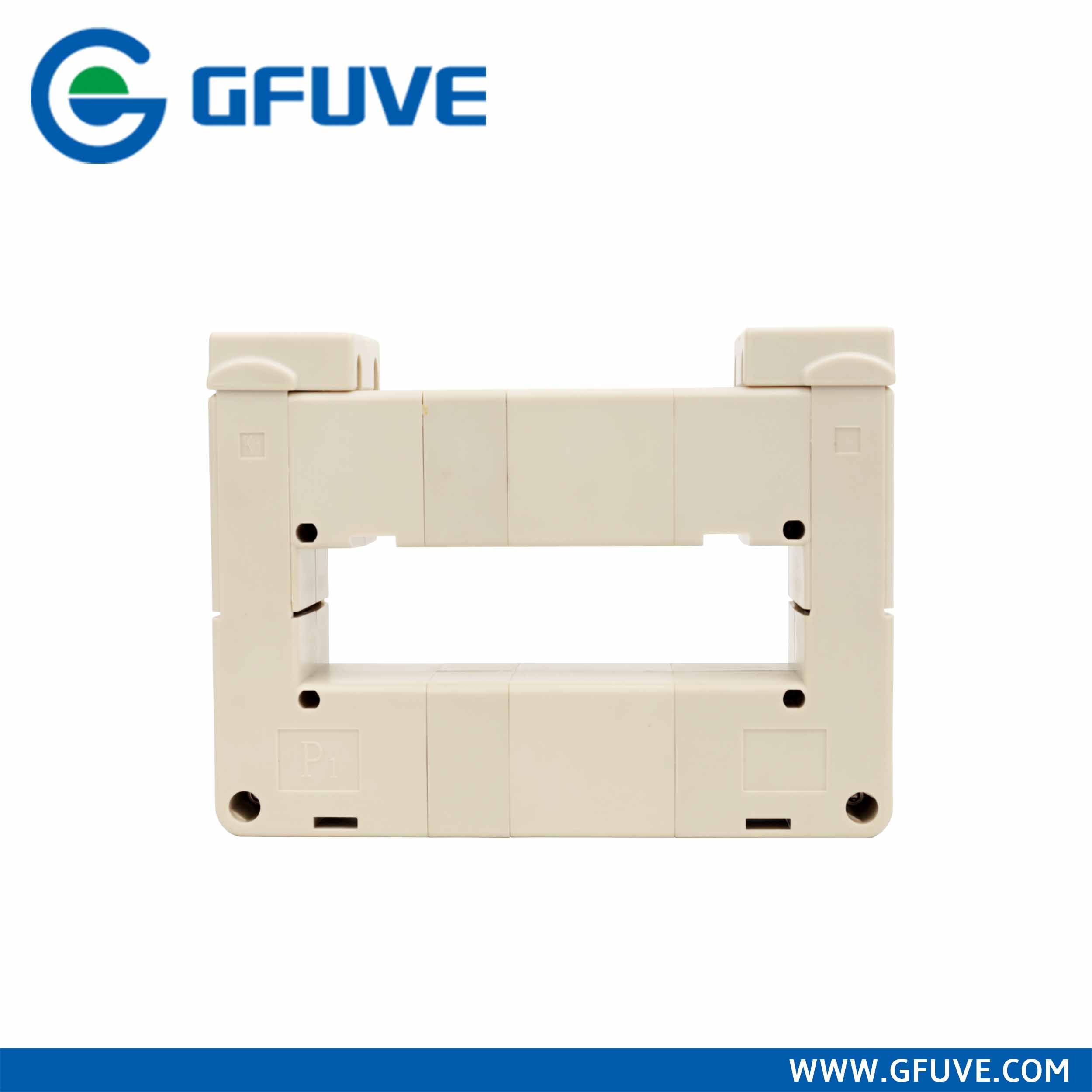

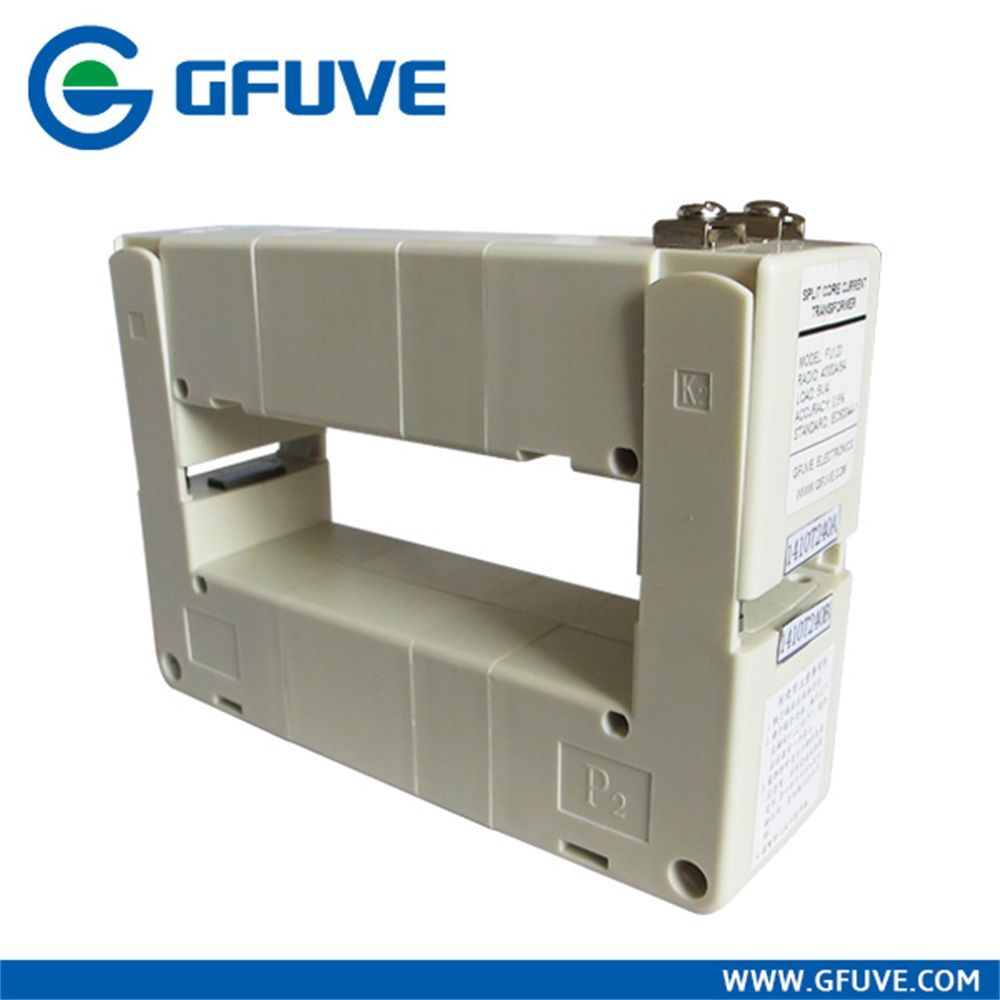

The GFUVE FU-100 clamp split core CTs are compact and low cost current transformers with high accuracy.
The CTs are ideal for quick and easy installation without disconnecting cables during installation. Multiple
installation mechanisms provide stable and durable current measurement.
Applications
1. Energy sub - meter
2. Power meters
3. Power quality monitoring
4. HVAC & Pumps, etc
5. Distributed measurement system
Features
1. Most cost-effective
2. Faster installation
3. Safe and easy installations
4. High accuracy 0.5
5. Holding wire diameter: φ100mm
6. Ratio's ranging from 400/1A to 3000/5A
7. CE, UL
Parameters
| Technical parameters |
| Standards | IEC/EN60044-1 & IEC61010-1 & IEC61869-2&ANSI C57.13 |
| Ratio | 1000: 5 or 2000:5 , customized |
| Nominal input current(Primary current) | 400A/500A/600A/800A/1000A/
1200A/1500A/2000A/3000A |
| Overload withstand | 1.2 times rated current continuously |
| Accuracy | 0.2%, 0.5 %, 1% |
| System Voltage | 720V(0.72kV) |
| Output signal | 1A or 5A
333mV AC or 100mV-2V optional |
| Burden | 2.5VA |
| Frequency range | 40 Hz-500 Hz |
Technical parameters-continued
| Dielectric strength | 3KV 50Hz/60Hz at 1 minute |
| Output | Standard 2.5 meter cable |
| Max. jaw opening | 100 mm |
Mechanical parameters
| Dimensions (W×D×H) (mm) | 170mm x 184.5mm x 41 mm |
| Weight (Kg) | 1 |
Operating conditions
| Operating temperature | -25 to +55°C |
| Relative Humidity | 0-85% non-condensing |
| Altitude | <3500 meters |
| Condition | No existence of severely begrimed, erosive and
radioactive gas in the air. Permission of long-term
operation under rated current. |
