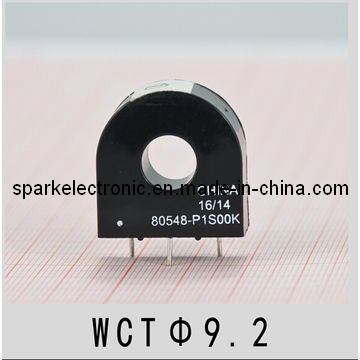

High Accuracy Current Transformer (CT)

High Accuracy Current Transformer (CT)
Price: US $ 0.5/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 500/Piece
Pay Type: T/T,Paypal,Western Union
Prod Model: CT
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Mount Type: PCB
Accuracy: 0.1% Class
Materials: UL
Customers Design: Yes
Application: Lighting
Type: Current Transformer
Phase: Single

Product Description

Key Specifications/Special Features
High precision PCB current transformer


Frequency: 20Hz to 20kHz
Core materials: Silicone steel, perm alloy or nano crystal
Atmospheric pressure: 860 to 1060m bar
Dielectric strength: 2, 500V/minute
Accuracy (for IEC 60044-1): 0.1, 0.2 or 0.5%
Ambient temperature: -25 to 85° C
Relative humidity: Not more than 90% and when temperature 40° C
Epoxy resin wrapped packing
High dielectric strength
Reliable performance
Welcome to JIANGYIN SPARK

Jiangyin Spark Electronic Technology Co., Ltd. is a professional manufacturer in China devoted in research, design, and production of electromagnetic products. We commonly provide split core current transformer sensor, mini current transformer, and mini voltage transformer, but also develop and design all kinds of energy saving modules and instruments. The well trained production and QC staff can assure all the current transformers perfect performance.

Since the company is founded in 1995, we have registered many Invention and practical Utility Model patents. We have passed the ISO9001: 2008 quality management certification system and UL and CE certification. In 2010, our company was awarded the second prize of Jiangsu Province Engineering Industry Improvement Award, and won the title of Wuxi City High and New Technology Enterprise. Located near the Port of Shanghai, the domestic logistics cost can be effectively saved.

For all of our products, samples are provided for free, but the purchaser has to endure the freight. The delivery cycle is generally 1 or 2 weeks depending on the product models. We can design products according to your requirements. OEM is also available.

In the principle of unity, efficiency, development, and mutual benefit, we are striving to provide you with better services.
