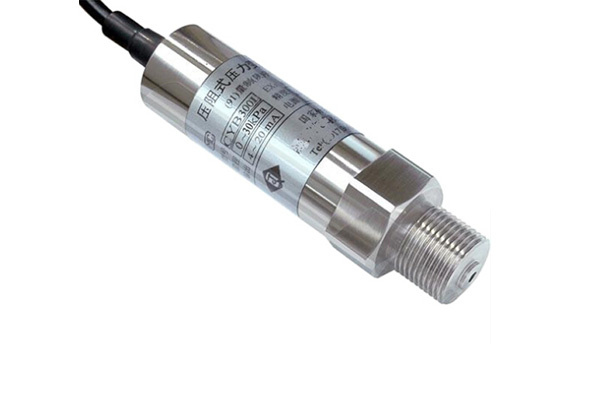

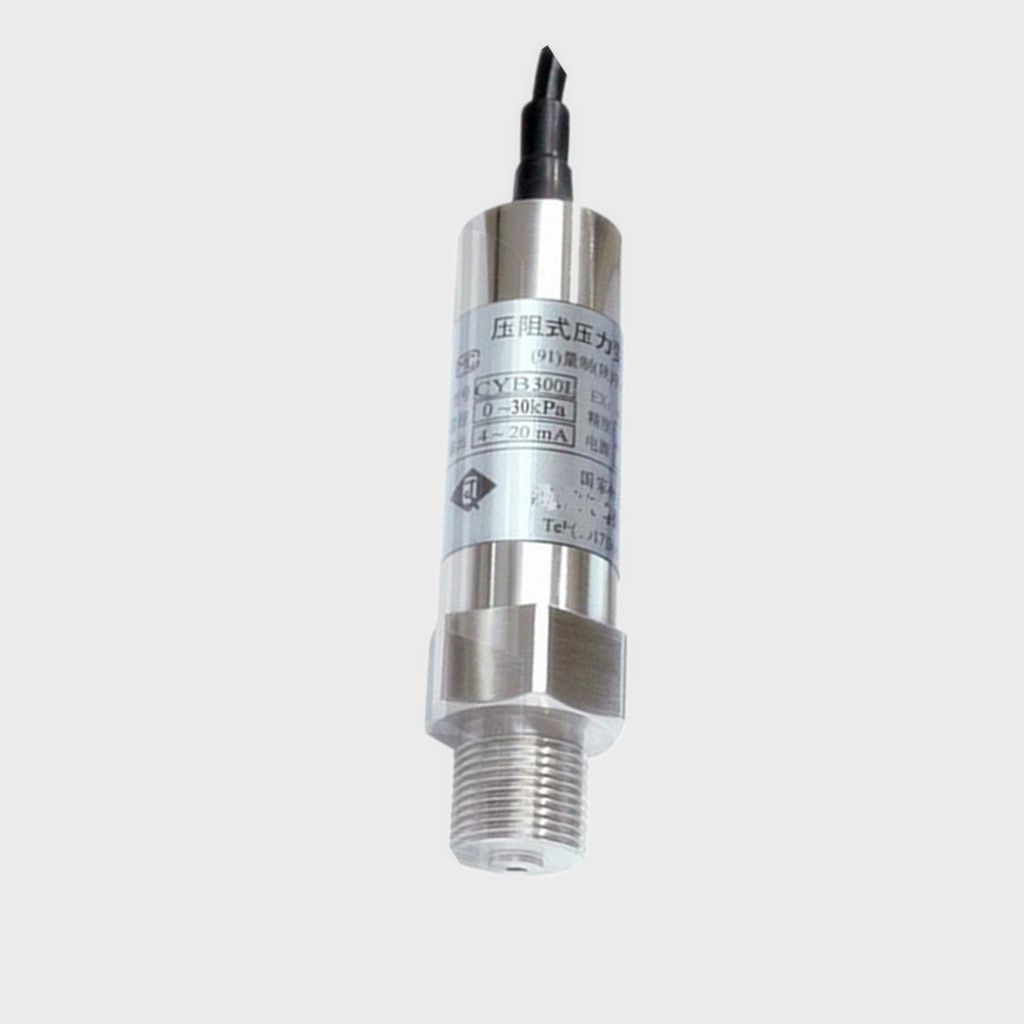

High Accuracy Electronic Pressure Strain Sensor with New Technology

Name: High Accuracy Electronic Pressure Strain Sensor with New Technology
Brand: all-electronics-online.com
SKU: 827752315
Availability: InStock
Rating: 4.3 (80 reviews)

Price:	US $ 500-600/Piece
Min Order:	2/Piece
Pay Type:	L/C,T/T,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	YLS400-4
Scale Range:	0-1~0-150npa
Feature:	Stable Performance& High Accuracy
Application:	Industry Metallurgy
Sealing Rating:	IP65

Product Description

High Accuracy Electronic Pressure Strain Sensor with New Technology

Classification of products
1.WPS rope sensor
2.KTC Bar line sensor
3.LWH bar line sensor
4.KTF slide electric conduction plastic film
5.KTM mini bar type line sensor
6.KTR mini recover type line sensor
7.KPM mini hinge joint electric conduction plastic film line sensor
8.KPZ mini bar type line sensor
9.LVDTS pen-displacement sensor
10.LVDT Dc rebound displacement sensor

Scale Range	0-1~0-150Mpa
Overall Accuracy	0.1%FS, 0.2%FS, 5%FS
Output Signal	1MV/V, 1.5MV/V, 2MV/V, 3.3MV/V (four-wire system)
Supply Voltage	10 (6-12) VDC
Medium Temperature	-20~85~150ºC
Ambient Temperature	-20~85ºC
Long-term Stability	0.1%FS/year
Insulation Resisitance	more than 2000M (100VDC)
Sealing Rating	IP65
Vibration	During 20HZ~1000HZ, output variation less than 0.1%FS
Electrical Interface	Four-core Aviation Springwire Socket
THreaded Connection	M141.5, M201.5, and customized

Product Feature:
Imported airframe original
316 stainless steel and whole sealing
compact conformation
stable performance
high sensitivity

After-sale Service
Experienced suggestion for sensor installation and use.
12 months warranty. Long-term technical support.
Our warranty doesn't include misusing and man-made damages.

Electrical factors that affect the accuracy:
1. two-wire current output A2, maximum load, linear precision lower than minimum load 0.02%FS
2. three-wire current output type A3, maximum load, linear precision lower than minimum load 0.04%FS
3. voltage-output V1,V2 for empty, you need to load, load resistance cannot be less than 500kΩand precision than when you unloaded decreased 0.25%FS
4. resistance output type R-load type, you need to load, load resistance cannot be less than 500kΩ and accuracy than when you unloaded decreased 0.25%FS.

Founded in 1994, SOP Mechanical & Electrical Co., Ltd is specilized in manufacturing high pressure and high efficiency air blowers, precision vacuum pumps and parts, the tools. Products are sold widely in the demestic and overseas market. It gets high reputation.

High pressure air blowers are widely applicable for the machinery, exhaust, of the powder and granules, the suction conveyance, the liquid agitation, bottle packing, combustion the air supply to the aquatics, cooling of the radiation equipments and the environments in the manufacture industries.

We possess over 30 engineers and technicians. Work on the area of 6000 square meters. It is divided into blower R & D, Production Dept. Electric Motor R & D, Production Dept, Vacuum Pump R & D, Production Dept. It has all the advanced and necessary lathes, driller, broacher, balancing machine, constant temperature over etc.

Welcome customers from all countries, we firmly provide you quality products and perfect after-sales services.
