High Accuracy Miniature Load Cell (compression-B110)

Name: High Accuracy Miniature Load Cell (compression-B110)
Brand: all-electronics-online.com
SKU: 820449115
Availability: InStock
Rating: 4.4 (114 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	B110
Measurement Force:	Compression Force Measurement
Size:	50mm25mm(DiameterHeight)
Product Type:	Miniature Force Sensor
Pattern:	Load Button
Feature:	High Accuracy
Production Process:	Put on Strain Gauge

Product Description

1. Name: 100KN load button load cells
2. Type: B110 force sensor

3. Specification

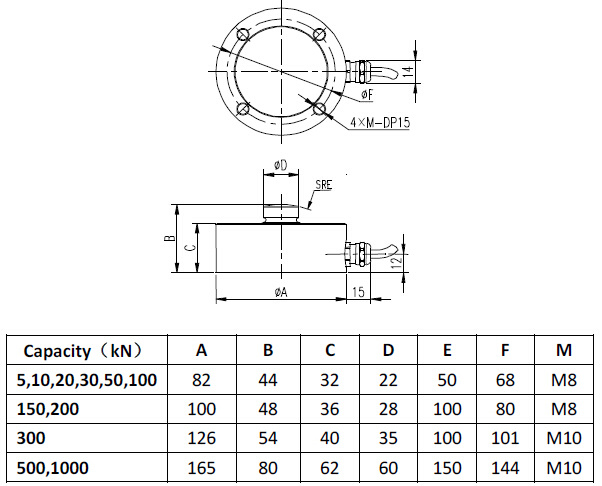

B110 is a Load Button Load Cell with Threaded Mounting Holes built for Press, or Inline compression applications. This Load Button Load Cell model has a very robust construction available in 17-4 Stainless Steel, with 86mmto 165mm outside diameter and a 4 meters long 24 AWG 4 conductor shielded cable. You will also find options for external matched output readily available. The capacity is from 5KN to 100KN(1100lbs to 22000lbs).

Although Load Button Load Cells are traditionally not known for their high accuracy, our engineers have dispelled this concept by continuously improving the accuracy of this product. The Load Button Load Cell offers high accuracy. It has Nonlinearity of ±0.05% and Repeatability of 0.05%F.S. nominal. The standard Load Button Load Cell can be modified or customized to meet your requirements and most capacities are in our inventory, making them available for 24 hour shipping.

Product Highlights:

Low Deflection

17-4 Stainless Steel Construction

Compression force

Utilizes Metal Foil Strain Gauge Technology

For those who are a looking for a complete system solution, we can provide both signal conditioned displays or our VCal Portable System. Our VCal Portable System brings an easy-to-use system verification directly to the customer making it ideal for on-site verification and calibration of your products.

However, if your range requirements are different do not hesitate to contact us and we will strive to meet the desired parameters.

4. Key Features
Compact design
Direction of force: Compression
Accuracy class 0.05
Nominal rated forces: 1KN to 100kN
Configurable with different cable lengths, plug assembly

5. Datasheet

1	Specifications	Technique
2	Capacity	5,10,20,30,50,100,150,200 300,500,1000kN
3	Rated output	1.5±10%mV/V
4	Zero balance	±0.05 mV/V
5	Non-linearity	0.05%F. S.
6	Hysteresis	0.05%F. S.
7	Repeatability	0.05%F. S.
8	Creep(30min)	0.05%F. S.
9	Temp. effect on output	0.03%F. S. /10ºC
10	Temp. effect on zero	0.03%F. S. /10ºC
11	Input impedance	385±20Ω
12	Output impedance	350±10Ω
13	Insulation	≥5000MΩ/100VDC
14	Recommended excitation	10V
15	Maximum excitation	15V
16	Compensated temp range	-10~60ºC
17	Operation temp range	-20~80ºC
18	Safe overload	150%F. S.
19	Ultimate overload	300%F. S.
20	Cable size	φ5×5000mm
21	Material	Stainless Steel
22	IP Class	IP67

All of these load button load cells could be customized. The accuracy could be 0.05% for force measuring and controlling progress.
www.bransensor.com

What you could get from Brans?

Load Cells, Miniature and sub-miniature force sensors, Pressure Transducers/sensors, Torque Transducers, Temperature sesensors, Flow senesors, Displacement Transducers (LVDTs), Digital Gauges, Strain Gauges, Instrumentation for Test, amplifiers and data acquisition systems as well as software for structural durability investigations, tests and analysis, Measurement and Other Applications.

Why choose Brans?

Brans cooperate with HBM, FLINTEC, METTLER TOLEDO, Honeywell, Vishay and other famous brand electronic measuring instruments and system. We could learn and get the most advanced technology and news of procedures. Good manufactures means good products.

We could OEM for miniature and sub-miniature load cells with tension or compression; Big capacity load cells/sensors Brans also could make it with good quality material.

Brans products (load cells, force sensors, amplifiers… ) have been certified per ISO9001, OIML, CE, RoHS, NETP AND ATEX. Brans could promise you the best quality for measuring products.

Who Brans cooperate with?

Brans have developed solutions for a wide range of industries including automotive, aerospace, military and defense, oil and gas, R&D and material/test labs, machine and automation equipment designers and builders, off highway and heavy equipment manufacturers, medical device manufacturers, semiconduct or fabricators, utilities and energy companies, marine equipments and shipbuilding.
