High Accuracy Pressure Sensor (BST-105)

Name: High Accuracy Pressure Sensor (BST-105)
Brand: all-electronics-online.com
SKU: 823327685
Availability: InStock
Rating: 4.9 (84 reviews)

Price:	US $ 60/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	BST-105)

Product Description

1.    Product Name:High accuracy pressure transmitter (BST-105)
2.       Model: BST105
3.       Material: Stainless Steel
4.       Cpacity: -0.1~0~1~150(MPa)

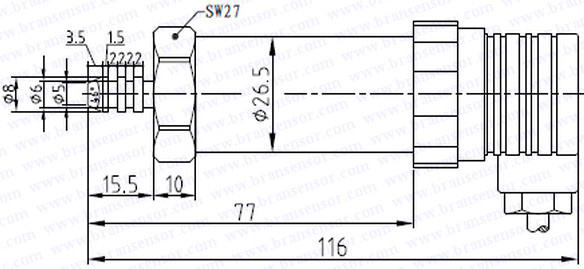

5.       Size: Φ8*Φ26.5*116 mm
6.       Design:

7.       Main Features
(1)     Fully Welded Stainless Steel Housing
(2)     No Oil Fill, Welds, or Internal O-rings
(3)     Wide Operating Temperature
(4)     Compatible with Liquids and Gases
(5)     Rugged, Compact Design
(6)     Pressures up to 10,000 PSI
(7)     High Shock and Vibration

8. Technical Datasheet

	Specifications	Technique
	Capacity	0~1KPa~10KPa~400KPa~1.6MPa
	2wires	4~20mA
	3wires	0~5V,1~5V,0~10V
	Comprehensive accuracy	0.1% F.S.,0.2% F.S.,0.5% F.S.
	Power supply	24VDC(9~36VDC )
	Medium temperature	-20ºC~75ºC
	Ambient temperature	-20ºC~75ºC
	Load resistance	Voltage type≥50kΩ Current type≤800kΩ
	Insulation	≥2000MΩ/100VDC
	Respone time	<1ms
	IP Class	IP65
	Long term stalibity	0.1%F.S./Year
	Vibration effects	20~1000HZ<0.1% F.S. Impact is less than 0.1% F.S.
	Electrical interface	Hirschmann connectors
	Thead connection	Φ8 fast connector
	Outline size	Φ8×Φ26.5×116 mm
	Material	Stainless Steel

9.Applications:

Industrial OEM Equipment
Hydraulic Systems
HVAC Equipment
Refrigeration Equipment
Automotive
Energy / Water Management
Test Stands
Off-Road / Construction Equipment
Railways (Braking, Compressor & Engine Control

The BST105 is a low pressure Class I Division 2 stainless steel pressure transmitter for use in hazardous areas. In addition to its rugged construction and the best price-to-performance ratio in the industry, the BST105 is the solution for low pressure measurement for a variety of applications.

In this catalog, you could find pressure transducers/transmitters of liquid and gas; Flow meters; displacement sensors; Temperature sensors; Liquid Level Sensor/Meters.
If you need any special requirements, we could make it as customized according to your design.
www.bransensor.com

What you could get from Brans?

Load Cells, Miniature and sub-miniature force sensors, Pressure Transducers/sensors, Torque Transducers, Temperature sesensors, Flow senesors, Displacement Transducers (LVDTs), Digital Gauges, Strain Gauges, Instrumentation for Test, amplifiers and data acquisition systems as well as software for structural durability investigations, tests and analysis, Measurement and Other Applications.

Why choose Brans?

Brans cooperate with HBM, FLINTEC, METTLER TOLEDO, Honeywell, Vishay and other famous brand electronic measuring instruments and system. We could learn and get the most advanced technology and news of procedures. Good manufactures means good products.

We could OEM for miniature and sub-miniature load cells with tension or compression; Big capacity load cells/sensors Brans also could make it with good quality material.

Brans products (load cells, force sensors, amplifiers… ) have been certified per ISO9001, OIML, CE, RoHS, NETP AND ATEX. Brans could promise you the best quality for measuring products.

Who Brans cooperate with?

Brans have developed solutions for a wide range of industries including automotive, aerospace, military and defense, oil and gas, R&D and material/test labs, machine and automation equipment designers and builders, off highway and heavy equipment manufacturers, medical device manufacturers, semiconduct or fabricators, utilities and energy companies, marine equipments and shipbuilding.
