High Accuracy Pressure Sensor with Analog Output (BST-101)
| Price: |
US $ 60/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
Product Description
1. Product Name: Hot Sales -0.1-100 Mpa Water Gas Pressure Transducer/Transmitter DC 24V Air Compression Pressure Sensor
2. Model: BST101
3. Material: Stainless Steel
4. Cpacity: -0.1~0,0-1,6,10~100MPa
5. Size: M20×Φ26.5×90 mm

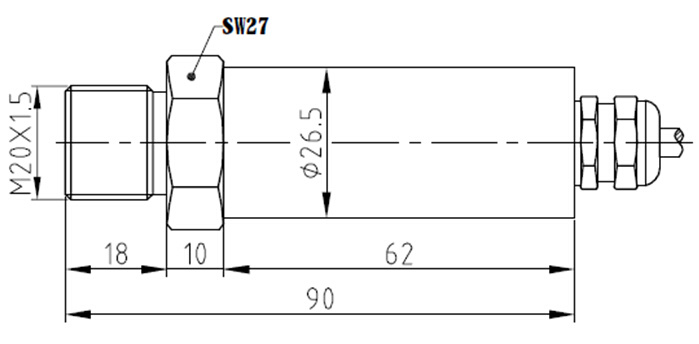

6. Design:
7. Main Features
(1) Fully Welded Stainless Steel Housing
(2) No Oil Fill, Welds, or Internal O-rings
(3) Wide Operating Temperature
(4) Compatible with Liquids and Gases
(5) Rugged, Compact Design
(6) Pressures up to 10,000 PSI
(7) High Shock and Vibration
8. Technical Datasheet | | Specifications | Technique |
| | Capacity | -0.1~0, 0~1, 6, 10~100MPa |
| | 2wires | 4~20mA |
| 3wires | 0~5V,1~5V,0~10V |
| | Comprehensive accuracy | 0.1% F.S.,0.25% F.S.,0.5% F.S. |
| | Power supply | 24VDC(9~36VDC ) |
| | Medium temperature | -20ºC~85ºC~105ºC
(/Option) |
| | Ambient temperature | -20ºC~85ºC |
| | Load resistance | Voltage type≥50kΩ
Current type≤800kΩ |
| | Insulation | ≥2000MΩ/100VDC |
| | Respone time | <1ms |
| | IP Class | IP65 |
| | Long term stalibity | 0.1%F.S./Year |
| | Vibration effects | 20~1000HZ<0.1% F.S.
Impact is less than 0.1% F.S. |
| | Electrical interface | Stainless steel seal terminal |
| | Thead connection | M20×1.5,/G1/2-14 /customized |
| | Outline size | M20×Φ26.5×90 |
| | Material | Stainless Steel |
9.Applications:- Industrial OEM Equipment
- Hydraulic Systems
- HVAC Equipment
- Refrigeration Equipment
- Automotive
- Energy / Water Management
- Test Stands
- Off-Road / Construction Equipment
- Railways (Braking, Compressor & Engine Controls)
The new compact BST101 pressure transmitter is ideal for monitoring pressure in hydraulics and pneumatics applications as well as inert gases where mounting space is limited. These pressure sensors feature a thin film measuring cell which is welded directly to the process connection. No separate seal is required. This innovative design technology guarantees high accuracy in a compact housing. Constructed of stainless steel, the robust pressure sensors are designed to withstand extreme shock and vibration in harsh environments. The one-piece, completely welded housing eliminates moisture ingress and is rated IP 67 / IP 69K. The transmitter provides an analog output at an exceptional fast response time of 1 millisecond and reliable repeatability of < 0.05 %. Through innovative design technology, features that ensure reliability.
In this catalog, you could find pressure transducers/transmitters of liquid and gas; Flow meters; displacement sensors; Temperature sensors; Liquid Level Sensor/Meters.
If you need any special requirements, we could make it as customized according to your design.
www.bransensor.com
What you could get from Brans?
Load Cells, Miniature and sub-miniature force sensors, Pressure Transducers/sensors, Torque Transducers, Temperature sesensors, Flow senesors, Displacement Transducers (LVDTs), Digital Gauges, Strain Gauges, Instrumentation for Test, amplifiers and data acquisition systems as well as software for structural durability investigations, tests and analysis, Measurement and Other Applications.
Why choose Brans?
Brans cooperate with HBM, FLINTEC, METTLER TOLEDO, Honeywell, Vishay and other famous brand electronic measuring instruments and system. We could learn and get the most advanced technology and news of procedures. Good manufactures means good products.
We could OEM for miniature and sub-miniature load cells with tension or compression; Big capacity load cells/sensors Brans also could make it with good quality material.
Brans products (load cells, force sensors, amplifiers… ) have been certified per ISO9001, OIML, CE, RoHS, NETP AND ATEX. Brans could promise you the best quality for measuring products.
Who Brans cooperate with?
Brans have developed solutions for a wide range of industries including automotive, aerospace, military and defense, oil and gas, R&D and material/test labs, machine and automation equipment designers and builders, off highway and heavy equipment manufacturers, medical device manufacturers, semiconduct or fabricators, utilities and energy companies, marine equipments and shipbuilding.
