| Prod Model: |
JT3051CH |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
Jt3051CH |
| Power Supply: |
DC12-32V |
| Operating Temperature: |
-30°c ~ +70°c |
| Mounting Hole Pitch: |
55.14mm |
| Warranty: |
1 Year |
| Dimension: |
Diameter=61mm |
| Pressure Type: |
Gauge, Differential, Micro Differential Pressure |
| Output: |
4-20mA with Hart (2-Wire) |
| Measuring Medium: |
Liquid, Gas, Vapour |
Product Description

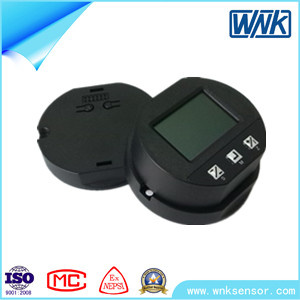

JT3051CH Capacitive HART Circuit Board
JT3051CH Capacitive HART Circuit Board uses advanced completely isolation technology. The power side is islolated by transformer, signal side isolated by opticalcoupler to make transmitters with good anti-interface, thus ensure high realiability and stability. Parameters configuration and compensation of transmitters can be done by buttons, HART communicators or HART configuration programs, improving precise level and accuracy of transmitters. JT3051CH matches capacitive differential pressure sensor and is suited for 3051 housing.
Features - JT3051CH Capacitive HART Circuit Board: 1.Easy adjusting by buttons: on-site span changing by LCD module buttons free from standard pressure source; for headless type, PV reset and span correction with pressure source done by buttons on mainboard
2.High accuracy: for intelligent board, AD accuracy > 20 bits, DA accuracy > 16 bits;
3.Good stability: Linearity better than 0.1%, temperature conpensation accuracy better than 0.5%
4.Data backup and restore
5.Eletrical isolation: >1500VDC
6.Communication protocol:4~20mA output with HART protocol digital communication (two wires)
7. Adjusting method: through communicator or telemanagement via PC configuration adjusting program
Technical Parameters - JT3051CH Capacitive HART Circuit Board:
| Supply power | DC12-32V (DC 24V is suggested) |
| Matching sensor | Metal capacitive sensor |
| Sampling rate | >20times/s |
| Displaying and bits | LCD with backlight, displaying 5 bits, and 4 decimal places |
| Displaying interface | English or Chinese,displaying pressure, temperature/current/ percentage(interactive display) and 0-100% analog displaying |
| Displaying units | Dozens of displaying units, kPa, m4H2O, MPa, M, inH2O etc. |
| Output resolution | 1uA |
| Temp. compensation accuracy | -30~70ºC complete machine accuracy is better than 0.5% (including accuracy of sensor) |
| Linearity accuracy | Complete machine linearity is better than 0.2% (Multi-point calibrating is available as required) |
| Stability | 0.2%/Year |
| Anti-disturbance | Power isolation, signal isolation (magnetic isolation) |
| Range ratio | 100:01 |
| Circuit protection Measurement | surge current protection, Reverse Power Protection |
| Circuit design | Intrinsic safety |
| Isolation range | >200M |
| Communication Protocol | HART |
| Adjusting method | by buttons on LCD head or program on pc, HART communicator |
| Dimensions | OD=61mm, Mounting hole pitch=55.14mm (suited for gauge,differential, micro differential pressure transmitter in 3051 housing) |
| Motherboard buttons operation | reset, lower range calibration(zero drift under pressure source), upper range calibration (full scale calibration) |
| LCD head buttons operation | changing span units, decimal place, damping time, currant fixing, output features, current fixxing, write-protection,calibration (zero clearing, lower point and full scale calibration), language setting, media density (only unit M) and factory reset |
2. Chinese first having completely proprietary intellectual property rights of PROFIBUS temperature transmitter
3. Chinese industry leader in cement applying field
4. Aboundant experience of OEM & ODM with customers around the country including many trading companies. 5. Having not done foreign trade before, but users of our products have been all over the world
6. WNK profound accuracy of 0.075% is unique in our local, and it has been local measurement standard.
7. WNK has been continously awarded National High-tech Enterprice, Hefei Famous Brand, Chinese Top Ten Famous Brand of Transmitters, Chinese AAA Enterprice of Quality Guarantee and Good Faith, Chinese Industrial Fieldbus Leading Enterprice and etc.
Founded in 2004, ANHUI WNK ELECTRONIC ENGINEERING Co., Ltd is a hi-tech company specializing in different kinds of technologically-advanced and good quality sensor, transmitter and automation instrument. We devote to developing, manufacturing and selling of automation control system, providing our customers comprehensive fieldbus technical solutions and factory informatization construction.
Our main products include iEOS industrial cloud data base developing plate form; Industrial Internet of Things; WNK-WMS industrial wireless measurement system; Onsite measurement instruments like temperature, pressure, flow, level sensor and transmitter etc, widely applied in Petrochemical, Chemical, Power, Steel and Cement.
WNK is the third company in China developed PROFIBUS transmitters. WNK series PROFIBUS transmitter is the fourth in China certificated by international PROFIBUS organization, and Chinese first that completely having proprietary intellectual property rights. WNK PROFIBUS-PA temperature transmitters filled Chinese blank technology in the field.
With strict, scientific management system, WNK has been certificated to conform to standard GB/T 19001-2008 / ISO 9001: 2008 by China CLASSIFICATION SOCIETY CERTIFICATION COMPANY. WNK commits to developing of new products and technical innovation. With continuously effort in advanced technology of automation control system, WNK has been undertaking some innovation projects of MST (Ministry of Science and Technology), and has been honored as promising enterprise of "Giant of Technology "in Hefei Hi-tech Industry Development Zone.
As Chinese first and unique qualified production enterprise of 0.075% measurement in Anhui, WNK brand was awarded Anhui Famous Brand.
