Guangzhou Topshine Electronic Technology Co., Ltd. >> High Cost-Effective Camera RFID GPS Vehicle Tracker for School Bus

High Cost-Effective Camera RFID GPS Vehicle Tracker for School Bus

High Cost-Effective Camera RFID GPS Vehicle Tracker for School Bus
Price: US $ 54-65/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: T/T,Western Union,Paypal,Money Gram
Prod Model: VT900
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
CPU: Arm 7,High Speed Processor
GPS Chip: U - Blox 7
Warranty: 2 Years
Free Tracking Platform: Yes
Two Way Communication: Speaker + Microphone
Dimension: 105*75*30mm
Input Voltage: 9 ~ 36 VDC
Backup Battery: 850mAh
Over Speed Alarm: Support
Two Way Locattion: Support

Product Description

High Cost-Effective camera RFID GPS Vehicle Tracker for school bus
(* Free tracking platform  *two years warranty  *CE&RoHS certificate  *Industrail grade module)



- OVERVIEW:

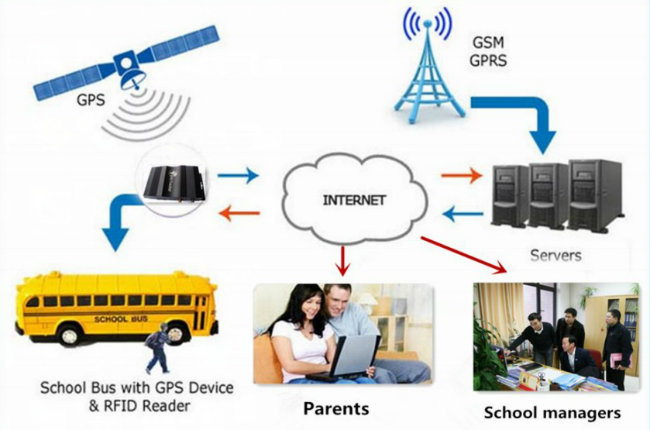

The SBMS system is used to monitor the student's regularity in school bus. It will help the parents to
monitor their children through GPS and SMS function from home.



- WORKING FUNCTIONALITY:
1. When the bus is coming near the student's home it will sends a SMS to the parents such as, "School Bus at Kottivakkam".
2. Once the student enters the bus and he/she swipes their card it will send the SMS to the parent such as, "Your child has entered the bus".
3. After the bus reaches the school, the student swipes his/her card and it will send a SMS to the parent such as, "Your child has reached successfully".
4. After finishing school, the student swipes his/her card while entering the school bus it will send a SMS to the parent such as, "Your child has entered the bus".
5. When the bus is coming near the student's home it will sends a SMS to the parents such as, "School Bus at Thiruvanmaiyur".
6. If the bus stands idle for a long time then a SMS will be sent to alert the parents.



- ADVANTAGES:
1. Parents will be assured that their children reach school and home safely.
2. It will be helpful to the parents by knowing the time when to get ready to pick and drop their kids.
3. It reduces the tension for the parents by knowing the exact location of where the bus is being located.
4. The parent can monitor their children sitting at home.



1. Products Overview:

Topshine tracker VT900 is a most advanced and high-cost effective GPS tracker, it is equipped with ARM9 high speedy microprocessor; Supporting camera (location&driving information log on picture); Bidirectional communication; Support unique passive RFID for student ID identification; And many useful functions and extensibility for fleet management and vehicle security purposes.

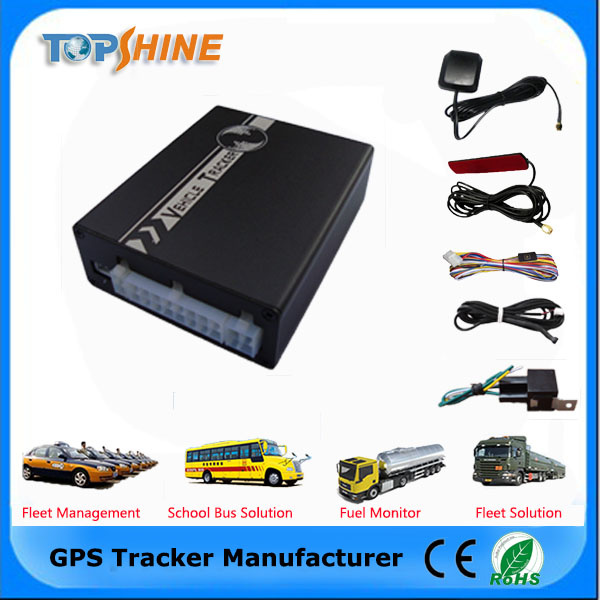

2. Application:

* School bus solution
* Vehicle Real Time Tracking
* Car Security/Anti-Hijack
* Comprehensive fleet management



3. Specifications:

ItemsSpecifications
Dimension110*80*30mm
Weight 180g
Input voltageDC 9V~35V/1.5A
Back-up Battery850mAh
Velocity515 meters/second (1000 knots) max
Operating Temperature-20°C~75°C
Humidity5%~95% Non-condensing
Altitude Limit18,000 meters (60,000 feet) max
LED2 LED lights to show GPS, GSM status
Cold start42sec., average
Hot Start1 sec., average
GSM FrequencyGSM 850/900/1800/1900MHz or GSM 900/1800/1900 MHz
GPS FrequencyL1, 1575.42 MHz
GPS ChipLatest GPS SIRF-Star III Chipset
GPS Sensitivity-158dB
Positioning Accuracy10meters, 2D RMS
C/A Code1.023 MHz chip rate
Channels20 channel all-in-view tracking
Velocity Accuracy0.1m/s
Time Accuracy1 us synchronized to GPS time
Default datumWGS-84
Reacquisition0.1 sec., average
I/O5   Input         5 Output      1 Camera Port
4 Analog Input              1 USB Port
1 MIC& Speaker Port



4. Features list of GPS tracker:

* Tracking by SMS/GPRS (TCP/UDP)
* OTA Function
* Engine on/off detection
* Remote Engine cut off
* Built-in backup battery
* Wiretapping/remote listening
* ARM9 high speed microcontroller
* Two way communication (Listen & Speak)
* Real time tracking via the web-platform
* Get position location via call/SMS
* Photo with location & driving information log function
* Get location physical name via SMS & from the web-platform
* Built-in motion sensor for power & GPRS flow saving mode (sleep mode)
* Google Map link for location via SMS, it shows your location on map via mobile phone.
* Built-in 4MB memory & position logging capacity up to 26, 000+ waypoints even no GPRS signal
* RFID kit for driver identification and auto Arm/Disarm functions (movement/towed alert, ignition alert, auto cut off engine etc)
* Analog input for Fuel sensor detecting/monitoring, support max 4 fuel sensor manage



4.1 More alarms:
* Accident alarm
* Oil leaking/Refuel Alarm
* Over speed alert
* Geo-fence alert
* Power failure/low power alert
* SOS Panic button, SOS alert
* Suddenly acceleration/brake alert
* Harsh braking and harsh acceleration alert

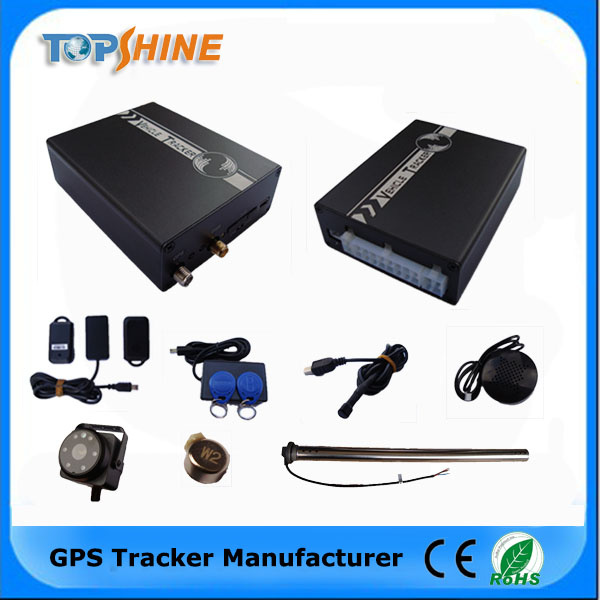

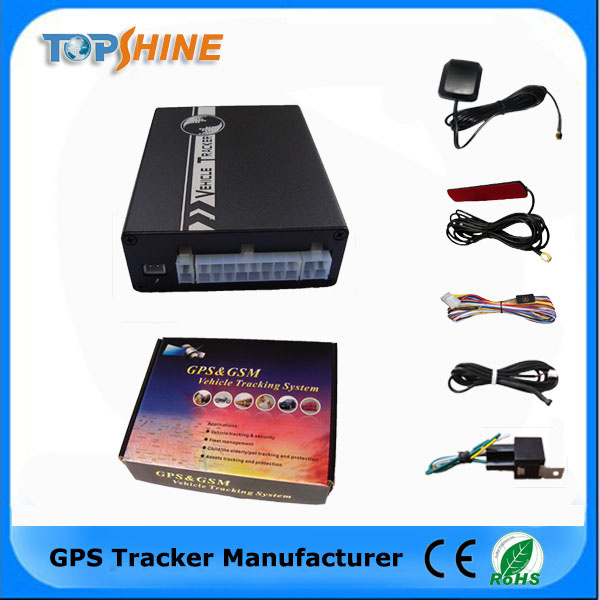

5. Package and Accessories:

Standard Accessories
Main unitSOS button
GSM antennaMicrophone
GPS antennaRelay
Wiring

Optional Accessories
 Fuel sensor Crash sensor
 Temperature sensor Smart phone reader
 Active RFID  Active RFID Tag
 Passive RFID  Passive RFID Tag
 Speaker Camera
 USB configuration cable Siren

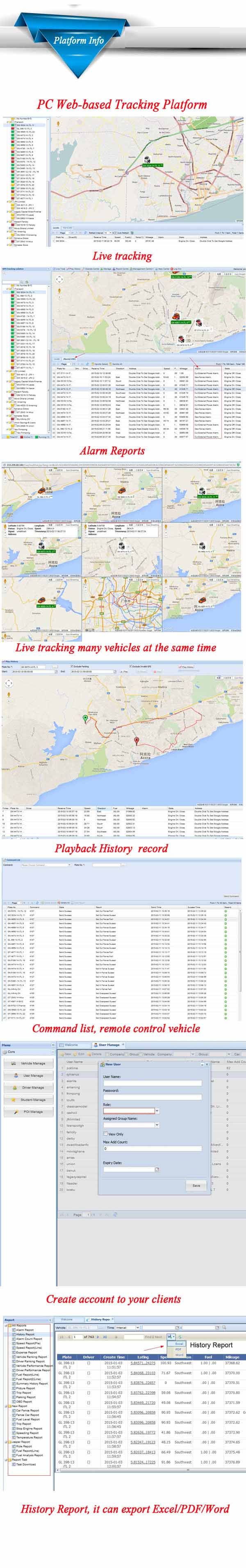

6. GPRS01 tracking software platform:

Welcome to access Topshine free tracking software, no any monthly or yearly charge.

Tracking platform site: www.track-car.com
Username: hongkong
Password: 123



6.1 Advanced function of GPRS01 tracking platform:

* Provide API

* More stable & easy expansion

* Flexible configuration menus and assign power for certain user

* Icon can show 8 direction

Events reminder ( maintainance alert, expired alert, odometer alert etc )

* Cell phones scan the QR code to download APP

* Directly manage Nevigate, Live Track and take photos

* Show GEO-fence and POI in the main track

* Flashing icon to show alarm status

Provide customer demand for customization





7. What can we do for you:

* Provide 2 free Tracking Platfrom (PC base & Android APP) lifelong. No charge.
* 2 years warranty
* All of our products have CE & RoHS & SGS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professioal R&D team provide Customization and after-sale service lifelong .
* 100% made of industrial-grade component,GSM module have certified(CE2200)and with legal IMEI code.



8. Payment & Shipment:

Payment Term: PayPal /western union / T/T / Moneygram
Shipping Term: DHL /Fedex /TNT /ARAMEX/EMX
Lead time: Samples within 1 days of delivery.bulk production within 5-7days of delivery.


Guangzhou Topshine Electronic Technology Co., Ltd. is a China leader manufacturer of superior Global Positioning System (GPS) tracking solutions and innovative integrated wireless communication equipments.

Since 1999, Topshine designs, develops, and manufactures high quality GPS tracking products, including location based and personal tracking systems for the vehicle, insurance, logistics and marine markets etc.

With experienced R&D team, excellent sales team and user-friendly software platform, we can promptly provide customized products, solutions and technical support and services, which helps us build a high reputation in the industry and among our customers all over the world. 90% of our products are for export. Our duty is to deliver the right product at the best price to meet your requirements. We try to exceed the expectations of every client by offering outstanding products backed up with effective and professional customer services and support.

TOPSHINE provides a proprietary system to help clients manage their fleet and asset.

Our proprietary software, Platform GPRS01, allows our clients who rely on a fleet of

Vehicles to transport their goods or clients with valuable moveable assets, to monitor

Their assets thus minimizing the risks associated with their investments, increasing

Efficiency and productivity, and minimizing logistics and manpower costs. Real-time

Information can help with effective decision making, thus improving your company's

Performance and reducing overall costs.

We currently serve over 100 major customers and our clients come from various

Industries with unique demands or operational requirements. We can customise our

System to cater to our client's needs. In our ever-growing network of connected

Devices, our fleet can be monitored from anywhere with our mobile applications. Our

Services cover Hong Kong, China and cross border fleets.

Professional Consulting Services

With years of service experience, we have built up a good reputation and a strong

Professional team to provide strategic solutions and technical advice in fleet

Management. We work closely with all our clients to define their problems and

Expectations and tailor the best solution to solve their fleet management problems.

Our role is more than a technology provider who is assisting you to drive your

Business to be more profitable and competitive.

Customer Integration Services

Our team will support you as you work to integrate the GPRS01 system into your

Operations. We provide complete servicing from the installation to the maintenance of

Each tracking unit. A member of our customer support team will help coordinate the

Times and location for unit installation and demo/training times at your convenience,

While you, our client, can concentrate on managing your business.

On-Site Training Services

Once we have installed our units in your fleets, a training session will be arranged to

Familiarize all necessary parties with the software. We also provide a customer service

Help desk to assist you should you have any further questions. Our strong customer

Service team will ensure you understand the system and can put it to good use.

Customer Care Services

Customer satisfaction is a critical element for us. We care about our clients' needs,

Ideas and opinions. We make sure our products and services satisfy or exceed our

Client's expectations.
