Utility Electrical Co., Ltd. >> High Current Cu/Al Screw Terminal Blocks

High Current Cu/Al Screw Terminal Blocks

High Current Cu/Al Screw Terminal Blocks
Price: US $ 0.01-1/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: JUT11-35
IEC: 60947-7-1
Current: 125A
Voltage: 630V
Certificate: TUV RoHS
Application: Transmission of Electrical Signals
Type: DIN Rail Screw Terminal Blocks
Material: Red Copper
Certification: TUV Ce CQC
Brand: Utl

Product Description

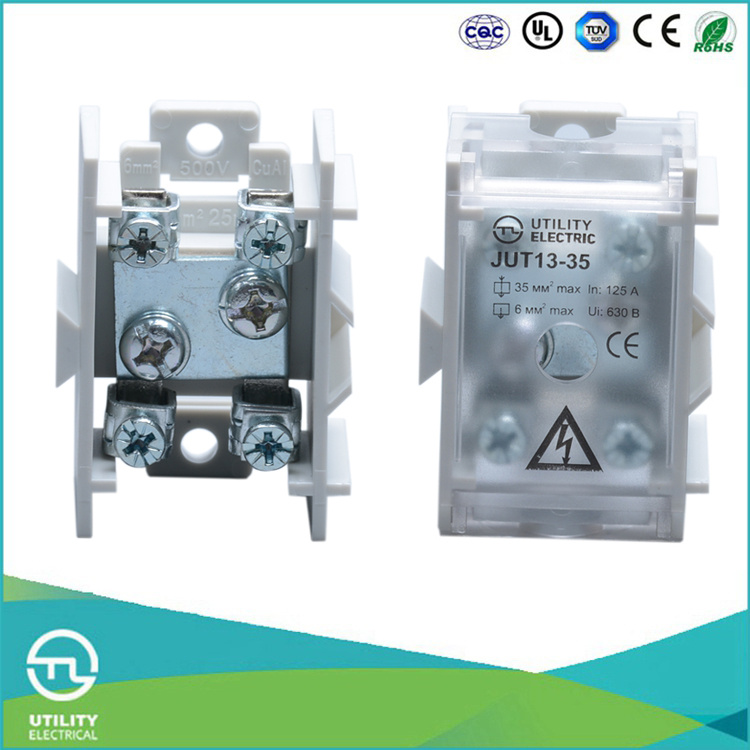

UTL One-in four-out high current CU/AL screw terminal blocks 35mm2 din rail distributor blocks
Distributor terminal blockJUT13-35
CertificateTUV  Rohs
MaterialBody : PA66 UL94V-0 , cover : PC , Conductor : Copper , Nickel plated , Block and Screw : Steel Zinc Plated
Wire size1*35mm2 . 4*6mm2
Voltage/Current630V / 125A
Insulation ResistanceDC1000V , 1000M Min
Withstanding Voltage AC4000V . 1Minute
Operating temperature  -40ºC to +105ºC
Payment termA.Below US$300,western,paypal accepted
B.Above US$300,bank account
CertificateTUV/CE/UL//RoHS/CCC/CQC  approved standard
Logo      Customized logo are available as request
Design ability        We can supply sample,OEM&ODM is welcome

Features:

JUT13 type is distributor kind
one in four out
terminal block
always be used in the industry series
big current industry terminal block

UTL specialized in producing all kind of terminal block.Through persistent research and development, we have grown into a leading manufacturer of this line.We produce several series products for you choose,if you are interesting in any of our product Please feel free to contact us or E-mail us we are happy to give you more details.
The company has consistently adhered to the "people-oriented, market-oriented" business philosophy, product standards.
UTILITY electrical Co., Ltd. Was established in 1990, which is specialized in

The production of the terminal industry, distributors, is that the industry is

Strong in technology, growing rapidly, very large-scale enterprises. Since its

Establishment, the community's concern and support, through the joint

Efforts of all my colleagues, more than a decade UTILITY made remarkable

Achievements, from sales to the corporate image have been recognized by

Customers and industry peers and achieved gratifying brand.

The company has consistently adhered to the "people-oriented, market-

Oriented" business philosophy, product standards, UTILITY painstaking

Research of the IEC, UL, CSA, GB, CE, CCC and other international and

Domestic standards for terminals, and in accordance with these

Standards preparing their own more stringent corporate standards, from

The development, mold design, raw material procurement, production,

Plastic parts molding products, metal parts, to finished product assembly

And quality testing, packaging, shipping, etc.

The company produced dozens of series, thousands of specifications of

Products for our customers to provide a rich selection of product protection.

The company passed the ISO9001 quality management system certification,

The vast majority of products through the UL, CSA, CCC, CCS, CE

Certification, some products through the VDE certification, all products

Comply with RO environmental requirements.
