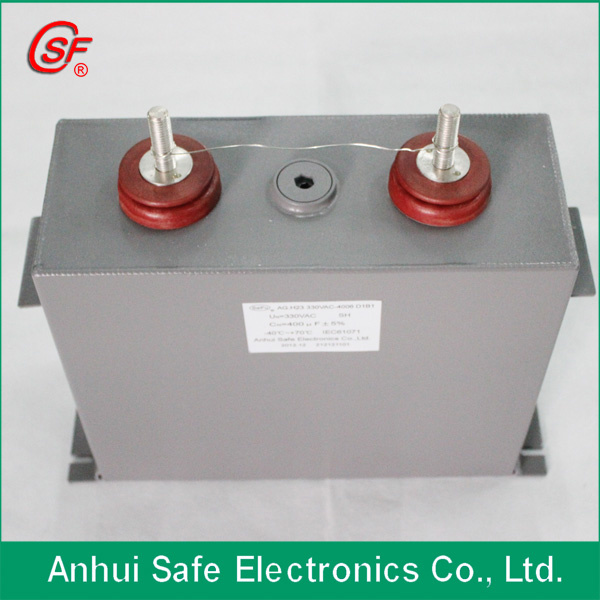

High Current Filter Capacitor

Name: High Current Filter Capacitor
Brand: all-electronics-online.com
SKU: 711861435
Availability: InStock
Rating: 4.4 (124 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	filter capacitor
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	500VDC~15000VDC
Operating Temperature:	-40°c~+85°c
Capacitor Deviation:	±5% ±10%
Capacitor Case:	Aluminum/Plastic/304 Stainless Steel
Capacitor Standards:	Iec61071;Iec61881
Type:	Polypropylene Capacitor
Application:	Inverter Welder, Rail Traffic Traction, Ship Drive
Package Type:	Through Hole
Capacitance:	0.47UF~12000UF

Product Description

Energy storage, Pulsed, DC-Link Filter Capacitor

Features:
1.high specific energy denisty strong capacitors energy storage
2. Low ESR, high ripple current and large peak current shock handling capabilities.
3. Low Inductance, Dv/dt large, frequency characteristics is good.
4.Self-healing property
5.Long lifetime(≥100000h)
6.High vacuum note oil, heat dissipation of capacitor performance is stable
and reliable
7.Huge capacitance
8. High thermal conductivity

Applications:
1.Used for rail traffic traction or the ship drive converter.
2.Used for various power industry inverter, such as high voltage variable frequency drive device
3. Used for the harmonic management, SVG equipment.

Technical Specification:

No.	Specifications	Size	Weight Kg	In(A)	No.	Specifications	Size	Weight Kg	In(A)

1	1000VDC 500uF	180100160	5.03	50	14	1100VDC 650uF	230100160	6.29	63
2	1000VDC 1000uF	230100210	7.97	95	15	1200VDC 400uF	175120150	5.4	33
3	1000VDC 1500uF	250120220	10.41	108	16	1200VDC 500uF	240100160	6.54	57
4	1000VDC 2000uF	250120270	12.51	144	17	1200VDC 500uF	270100240	10.39	83
5	1000VDC 2200uF	350120215	14	156	18	1200VDC 1000uF	230120210	9.27	83
6	1000VDC 2200uF	280120260	13.47	159	19	1200VDC 1500uF	320120230	13.64	127
7	1000VDC 2400uF	300120270	14.85	173	20	1200VDC 2000uF	340120265	16.45	166
8	1000VDC 3000uF	300120325	17.59	217	21	1200VDC 2400uF	340120320	19.53	200
9	1000VDC 3500uF	340120320	19.54	250	22	1200VDC 2400uF	360110330	19.72	220
10	1000VDC 4700uF	450120320	25.71	335	23	1200VDC 2500uF	320120340	19.47	200
11	1000VDC 5000uF	350120430	26.58	358	24	1200VDC 4000uF	340120480	28.68	330
12	1000VDC 7200uF	300350270	39.87	520	25	1200VDC 4700uF	350120550	33.49	398
13	1100VDC 600uF	200100170	5.81	59	26	1500VDC 500uF	230120160	7.32	48
27	1500VDC 1000uF	300120215	12.11	95	40	1600VDC 2400uF	340120480	28.69	263
28	1500VDC 1500uF	340120260	16.18	144	41	1800VDC 1000uF	320120290	16.82	122
29	1500VDC 1600uF	350120270	17.19	154	42	1800VDC 2000uF	320120530	29.5	220
30	1500VDC 2000uF	350120325	20.36	192	43	2000VDC 200uF	200120170	6.77	30
31	1500VDC 2500uF	360120390	24.75	240	44	2000VDC 300uF	200120230	8.8	45
32	1500VDC 3200uF	350120490	30.04	308	45	2000VDC 500uF	320120230	13.65	75
33	1500VDC 4000uF	350120600	36.39	385	46	2000VDC 800uF	380120290	19.81	120
34	1500VDC 4700uF	460120540	42.74	455	47	2000VDC 1000uF	320120410	23.16	150
35	1600VDC 200uF	200120160	6.44	30	48	2000VDC 1200uF	380120410	27.28	185
36	1600VDC 400uF	240120160	7.61	45	49	2000VDC 1600uF	380120530	34.76	248
37	1600VDC 800uF	240120270	12.04	87	50	2000VDC 2000uF	380120650	42.39	300
38	1600VDC 1000uF	290120265	14.15	109	51	2500VDC 200uF	210120190	7.83	33
39	1600VDC 1200uF	340120270	16.73	130	52	2500VDC 250uF	230120210	9.27	40
53	2500VDC 500uF	310120290	16.4	80	62	3500VDC 500uF	350120490	29.87	120
54	2500VDC 1000uF	340120480	28.53	166	63	4200VDC 120uF	340120210	13.37	37
55	3000VDC 200uF	240120210	9.64	35	64	4000VDC 200uF	380120290	19.81	58
56	3000VDC 250uF	230120260	11.21	48	65	4000VDC 250uF	380120350	23.54	73
57	3000VDC 500uF	350120325	20.36	96	66	4000VDC 500uF	380120650	42.23	150
58	3000VDC 500uF	300180270	21.53	130	67	4200VDC 600uF	500120590	50.13	184
59	3000VDC 800uF	350120490	29.88	154	68	5000VDC 100uF	350120210	13.73	32
60	3000VDC 1000uF	350120600	36.23	190	69	5000VDC 200uF	350120375	23.24	65
61	3500VDC 250uF	350120270	17.18	60	70	5000VDC 500uF	500230320	50.83	164

Note: Other Specifications and size outside table are negotiable.

Anhui Safe Electronics Co., Ltd. is a member of Green International Group. We mainly deal with AC motor capacitors, DC link capacitors, BOPP film (polypropylene film), MPP film (metalized film), inkjet PVC ID cards, polyester heat transfer film, PET film and other related products.

Our company has arranged the production of AC Motor Capacitors since 1999. Since the foundation of our company, the high-end slitters, the large-scale high-velocity winding machines, metal-spraying machines, automatic lines, automatic test lines and other advanced lines have been imported successively from Japan, Italy and Switzerland.

The production lines are state-of-the-art with internationally first-class quality. The annual output of all types of AC Motor Capacitors is 18 million pieces. We take the lead in this industry in China. There is a standard capacitor lab and calibration rooms for weight-and-measure gauges and test instruments in our company. We have got ISO9000 Quality System Certification and are endowed with considerable strong capability of technological development and quality control.

With one decade of experience accumulation and constant renovation, our company makes three key essential technological breakthroughs in the aspects of safety, endurance and temperature resistance. The products have all kinds of quality approvals to enter international markets such as CQC, UL, cUL, TUV and VDE. The products are suitable in diversified kinds of domestic and overseas prestigious-branded air-conditioners, refrigerators, compressors, washers, illuminators and other industries.

Our company is located in Tongling city-- ecological city of China. Our company adjoins to Shanghai, Nanjing and Ningbo and is close to traveling scenic spots of famous Huangshan Mountain and Jiuhuashan Mountain.

"good faith, serving the whole world" is our principle.
