High Current Hight Accuracy Three Phase Current Transformer 1: 3000 Raito

Name: High Current Hight Accuracy Three Phase Current Transformer 1: 3000 Raito
Brand: all-electronics-online.com
SKU: 818377535
Availability: InStock
Rating: 4.6 (24 reviews)

Price:	US $ 10-12/Piece
Min Order:	50/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LO-TP0003
Phase:	Three-Phase
Safety Standard:	IEC60044-1
Frequency:	50-60Hz
Flame Retardant:	UL94V-0
Thermal Class:	Class B
Packaging:	Carton
Production Process:	Encapsulaiton
Material:	Amorphous Core
Application:	Electricity Meter

Product Description

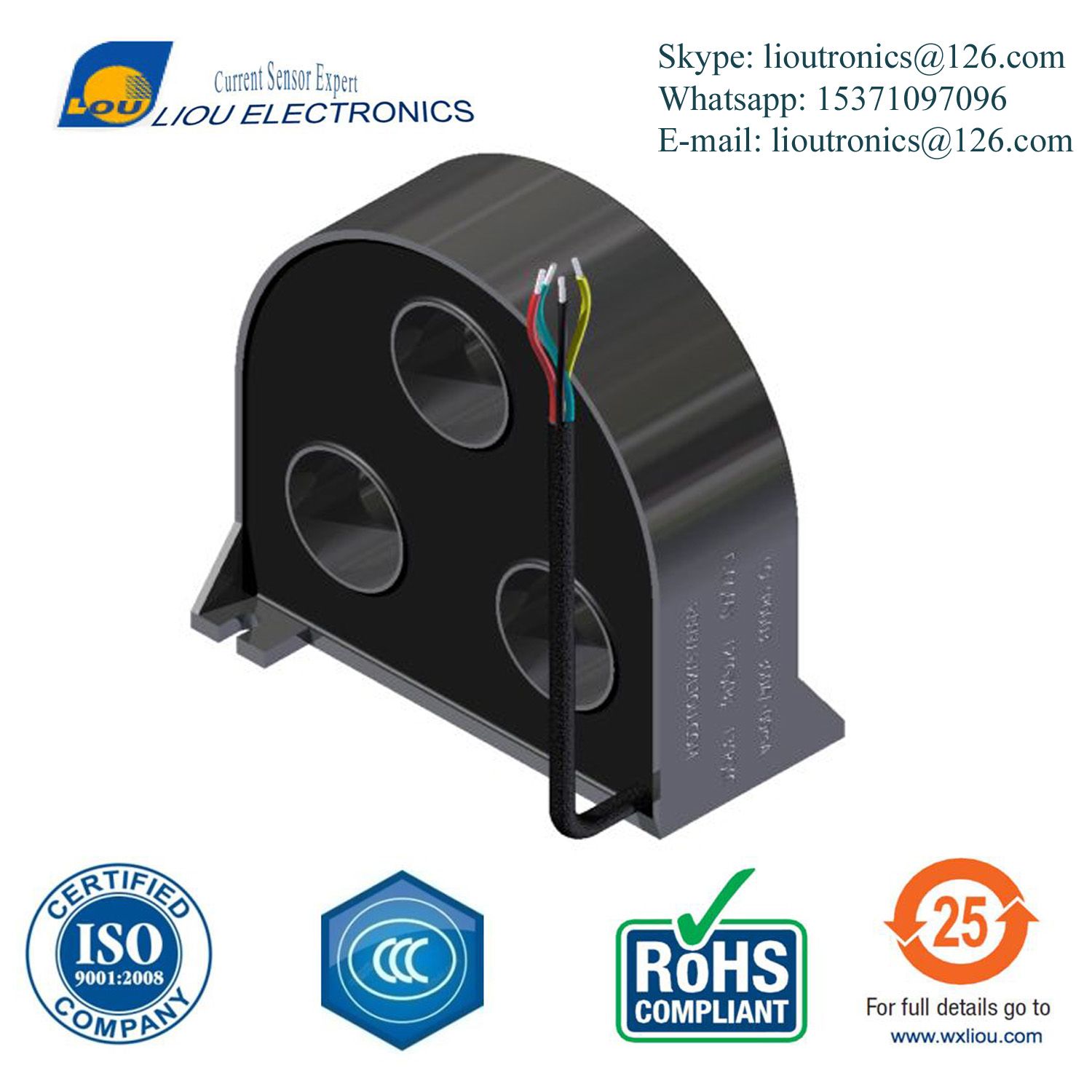

Three-phase current transformer

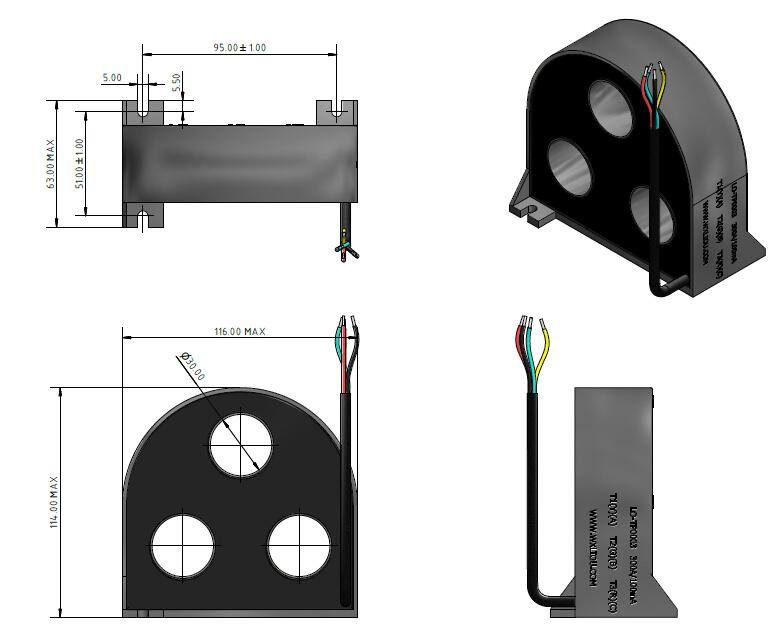

Mechanical Specificaitons:

Description
The range of LiOu three-phase current transformers offers wide system current ratings, apertures, bus bar and case sizes to suit every application. Manufactured to meet EN60044 the range benefits include ratio rating from 10A to 1000A, accuracy up to Class 0.1.

Application
• Data logging       •   Recording   •   Power monitoring
•   Energy management •   Alternative energy monitoring
•   Cost allocation

Features
• Frequency Range: 50-60Hz
• Over Load withstand: 1.2 x rated current continuously
• AC isolation resistance: 3KV for 60s
• Rigid housing case with UL® 94V-0 PBT
• Safety standard: IEC/EN60044-1
• Nominal phase angle error and
Nominal linearity error: Conform IEC61869-2
                    ConformIEC60044-1
• Max. operation voltage: AC660V
• Thermal Insulation Class: Class B
• IP Protection Class: IP20B
• Humidity: Up to 95%RH (Non-condensing)

Electric Specification

ELECTRIC SPECIFICAITON AT 25ºC
Model number	Turns Ration	Ipri⁴	Iout⁵	Iprimax⁶	Ioutmax⁷	Accuracy Class³	R_L⁸	Weight	Frequency range
Model number	Turns Ration	Amps	mA	Amps	mA		Ohms	(g)	(Hz)
LO-TP0003	1:3000	300	100	360	120	0.1	20		50-60

Note:
1.Output voltage is proportional to the derivative(di/dt)of the input current based on the Rogowski Coil principle.
2.All current and voltages assumed to be sinusoidal waveforms at Fr, the constant rated frequency in Hz, measured as RMS value.
3.Accuracy class per IEC60044-1Table 11.
4.Ipri=Rated primary current.
5.Iout=Rated secondary current.
6.Iprimax=Sensed max primary current.
7.Loutmax=Sensed max secondary current.
8.R_L=Terminating resistance. Varying terminating resistance increases or decreases output Voltage /Ampers according to following
equation R_L=Vout*Nsec/Ipri

ABSOLUTE MAXIMUM RATINGS
Operating free air temperature range	-20ºC to 65ºC
Storage temperature range	-20ºC to 85ºC

LEADS INFORMATION
UL2649 22AWG BLACK	150CM±10MM
