High Current PCB Terminal Block with UL, Ce Certification

Name: High Current PCB Terminal Block with UL, Ce Certification
Brand: all-electronics-online.com
SKU: 754936615
Availability: InStock
Rating: 4.4 (59 reviews)

Price:	US $ 0.15/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	WJ1010
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pitch:	5.0mm, 10.0mm
Application:	Battery
Environmental Protection:	Resistance to Environmental
Connection Mode:	In-Line Connector
Shape:	Rectangle
Contact Termination Form:	Screws Fixed
Interface Type:	Cage
Brand:	Wanjie

Product Description

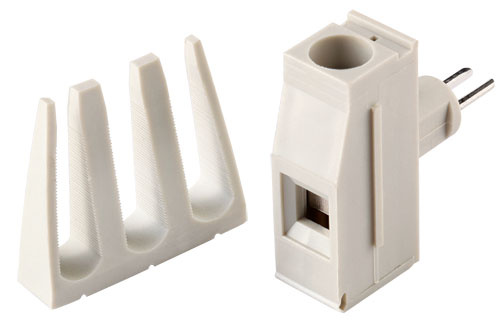

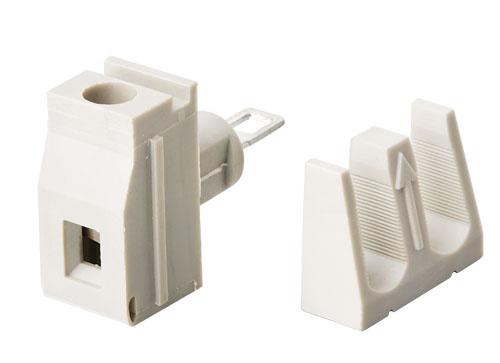

PCB Terminal block / Electronic connector / Screw terminal block

1. High quality: we have our own test laboratory, mold workshop and injection molding workshop.

2. Advanced QC system: we would ensure the quality of our products through both the manual and the machine inspection before shipment.

3. Competitive price: all the products are produced directly by us, it saves a lot secondary cost.

4. Good service, especially responsible after-sales service: if there is any quality problems caused by us, we would responsible for it.

5. Strong production capacity

6. Prompt delivery

7. OEM/ODM service available

8. Small orders acceptable

9. Free samples can be sent

Product Description

Material
Screws: M4.0 steel Zn plated
Cage : Brass,Ni plated
Pin header: Brass, Sn plated
Housing: PA66, UL94V-0

Electrical
Rated voltage: 300V
Rated current: 30A
Wire range: 26-10AWG 6.0mm²
Contact resistance: 20mΩ
Insulation resistance: 500mΩ /DC500V
Withstanding voltage: AC 2000V/1 min

Mechanical
Temp. Range: -40º C ~ +105º C
Max soldering: +250º C, for 5 sec.
Torque:12.24kgf-cm/1.2Nm/10.53 (lbin)
Strip length: 7-8mm

Cixi Wanjie Electronic Co., Ltd., is founded in 1992 and specializes in making terminal block and solderless breadboard. We have passed the ISO9001: 2000 quality management system and the products have been approved by VDE, UL, CE, SGS, CQC, RoHS and TUV.

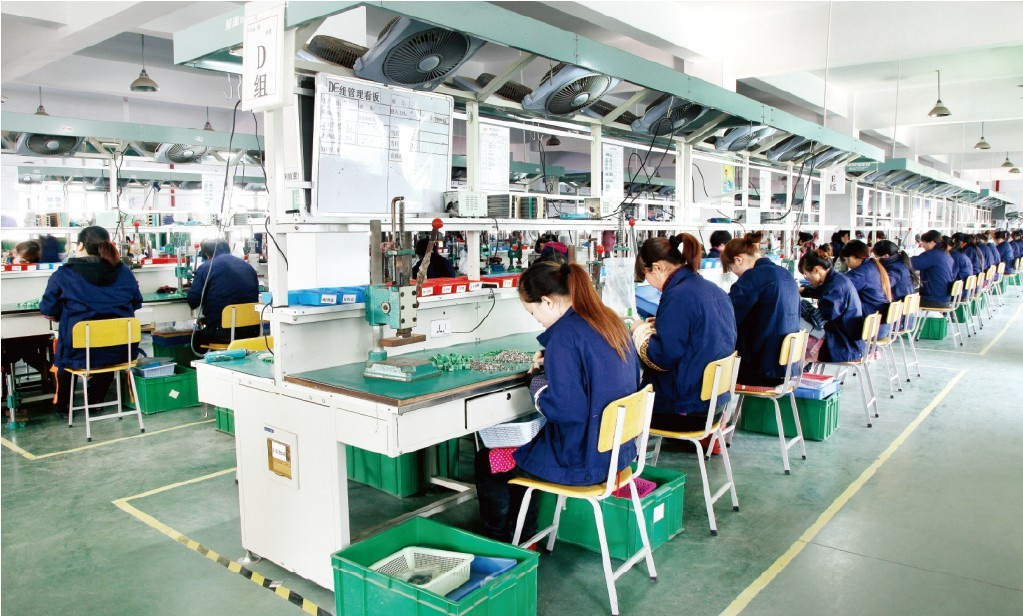

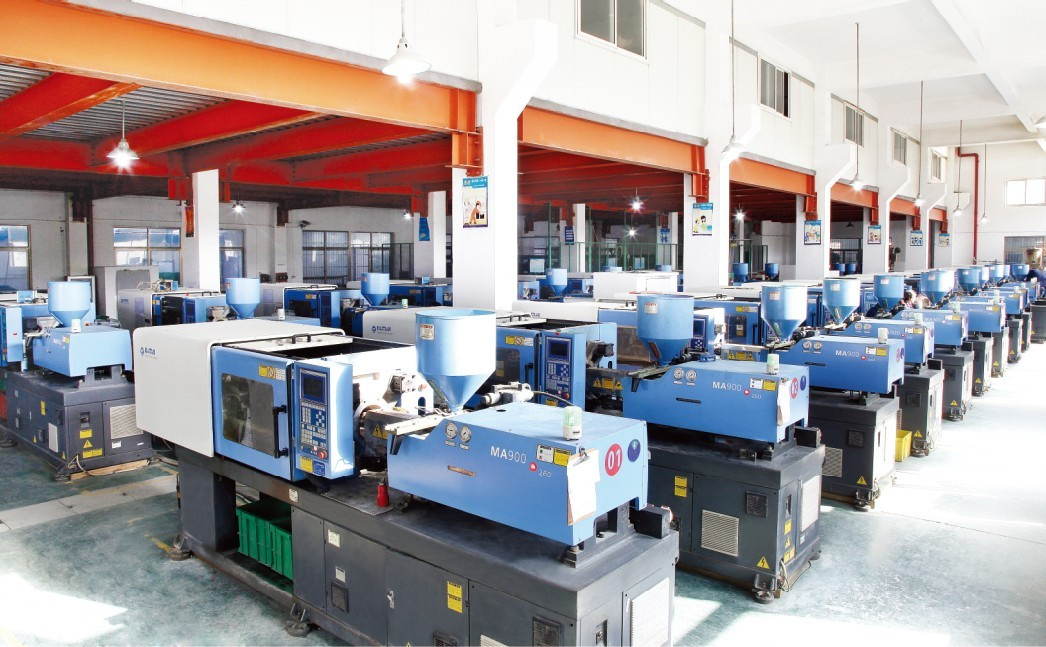

With many years development, we have built an excellent management team and have our own R & D center, mould production, plastic injection, hardware stamping and assembling workshop. So we will give you the best offer also we can design, develop and produce the products according to customers' Request.

We have adopted advanced production and test equipment, so that we could offer good quality and more competitive products. For better service to the customers, we can also design, develop and produce according to customer`s requirement for OEM/ODM products.

With the advanced equipment and production line, good quality, competitive price and good service, our products are sold far to America, Europe, Middle East, Africa etc and receive good comments from the customers. So the company shows warm welcome to consult the business with all the customers both at home and abroad.

All the staff of company will strive together for a better tomorrow and show warm welcome to the customers of allover the world.
