High Current Split Core Current Transformer

Name: High Current Split Core Current Transformer
Brand: all-electronics-online.com
SKU: 826172325
Availability: InStock
Rating: 4.3 (145 reviews)

Price:	US $ 71-75/Piece
Min Order:	50/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LO-KCT02-258
Phase:	Single
Safety Standard:	IEC60044-1
Frequency:	50-60Hz
Flame Retardant:	UL94V-0
Thermal Class:	Class B
Packaging:	Carton
Output Current:	5A or 1A
Production Process:	Plastic Case
Material:	Ferrite Core
Application:	Measurement

Product Description

Split core current transformers

Features:

High quality comprensive measurements

Available in a wide range of transformer ratings

Accuracy up to Class 0.5

Foot or Busbar mounted

Typical Appication:

Switchgear

Energy Management Systems

Instrumentation Equipment

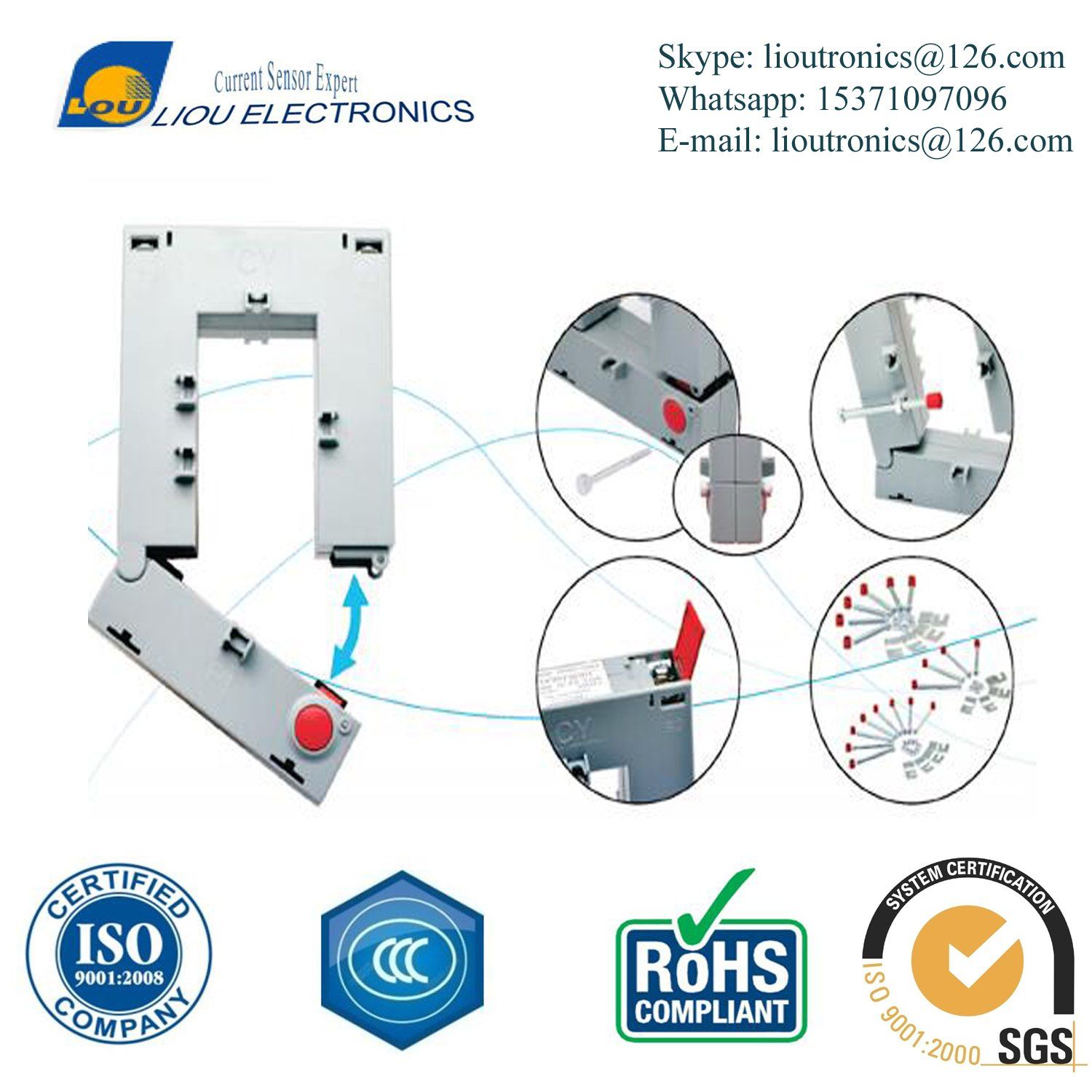

Split Core Current Transformers are designed for assembly to an existing electrical installation no need to dismantle the primary busbar or cables.

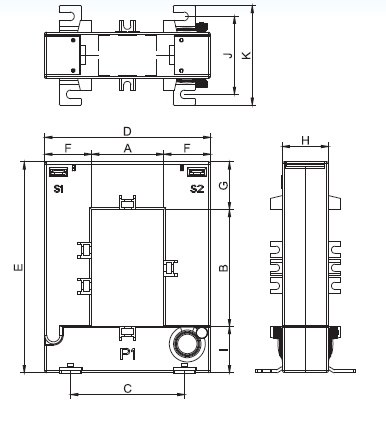

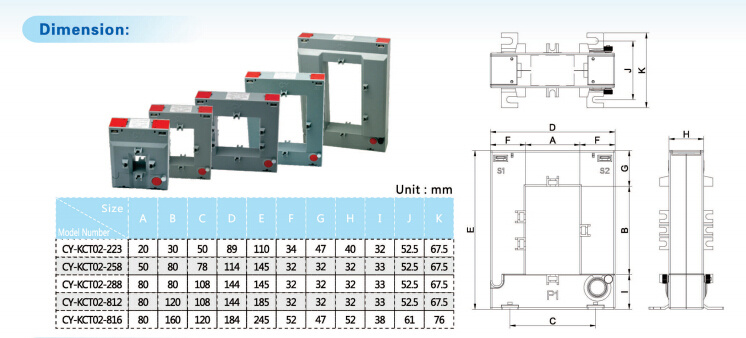

Kct02 Series Split Core Current Transformer

Kct02 Series Split Core Current Transformer

Electrical Parameter:

Size Model Number	Ipn(A)	Isn(A)	Burden(VA)			Window(mm)	Welght(kg)
Size Model Number	Ipn(A)	Isn(A)	CL0.5	CL1	CL3	Window(mm)	Welght(kg)
LO-KCT02-223	100	5/1	/	/	1.5	20*30	0.75
	150	5/1	/	/	2
	200	5/1	/	1.5	2.5
	250	5/1	/	2.5	3.75
	300	5/1	/	2.5	3.75
LO-KCT02-258	300	5/1	/	2.5	5	50*80	0.90
	400	5/1	2.5	3.75	5
	500	5/1	2.5	5	10
	600	5/1	2.5	5	10
	750	5/1	5	7.5	10
	800	5/1	5	7.5	10
LO-KCT02-288	800	5/1	5	7.5	10	80*80	1.25
	1000	5/1	5	10	15
	1200	5/1	5	10	15
LO-KCT02-812	1200	5/1	7.5	10	15	80*120	1.25
	1500	5/1	10	15	20
	1600	5/1	10	15	20
LO-KCT02-816	2000	5/1	10	15	25	80*160	4.30
