High Current Terminal Block-SKJ Series

Name: High Current Terminal Block-SKJ Series
Brand: all-electronics-online.com
SKU: 662992935
Availability: InStock
Rating: 4.4 (22 reviews)

Price:	US $ 0.1-0.2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SKJ Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Structure:	Protection
Type:	Power

Product Description

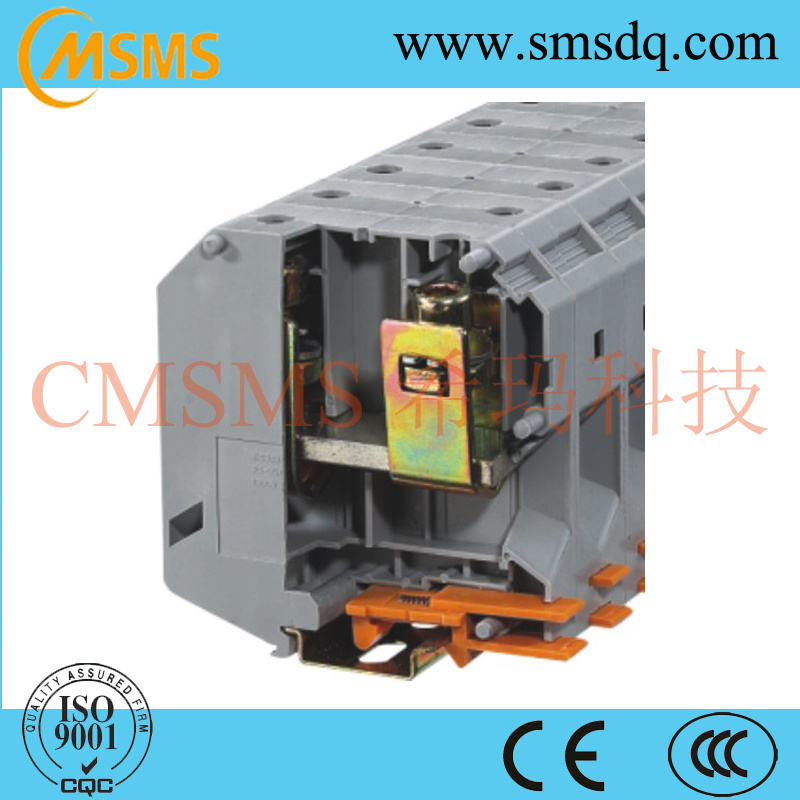

SKJ Series Universal Rail Mounting Standard Screw Clamp Feed through terminals are the most versatile terminals for wire-to-wire connection in control, automation, instrumentation and power distribution applications.
A special design feature on the flexible foot enables easy mounting and dismounting from the DIN Rail with the help of a screwdriver.

ITEM NO.	SKJ-50	SKJ-95	SKJ-150
Order No.	01009	01010	01011
Dimension
Width x Thickness x Height (mm)	71/20/76	83.2/25/90.1	101.4/32/111
Screw (mm)	M6	M8	M10
Torque (Nm)	6-8	15-20	25-30
Stripping Length (mm)	24	33	40
Rated data
Voltage Rating (V)	1000	1000	1000
Current Rating (A)	150	232	309
Wire section (mm² )	50	95	150
Wire Range
Rigid wire range(mm² )	16-50	25-95	35-150
Flexible wire rangemm² )	25-50	35-95	50-150

Zhejiang SMS Technology Co., Ltd is a professional manufacturer of solar mounting system, Electric connection & relative products. Our main products are Terminal block, Piercing connector, Connection box, DIN rail, Fan and Ventilate filter, etc. For passed ISO9000 many years, we always concentrate to manufactures of Electric connection and relative products, energetically explore potential markets worldwide. Mostly of our products are approved by CE, RoHS, CCC, UL, etc...And enter to international markets.

At the beginning we enter the electric connection industry, we keep our eye on produce High quality products and offer More competitive products to our customers.

We adopt advanced technologies and high quality material to offer more than 20 series products in electric distribution system, power control system and cable connection, etc...Including SKJ series terminal block, ST1 series spring connector, Insulation piercing connector, DIN rail, Fan & ventilate filter, electric metering box, multipurpose terminal block and relative accessories & tools.

Our products are widely applied in electric & electronic industry, electric equipment, Industrial automation, street lighting and power control system in traffic and transportation, posts & telecommunication, petrol chemical industry, industrial building machine-building, etc.

Zhejiang SMS technology Co., Ltd. Established more than 40 agents and service parters all round China and keep expanding international market. We accept OEM/ODM order from oversea customers. We believe our products and believe customers will chosen our products as their best choice in electric connection field.
