| Prod Model: |
Cartridge heater |
| Lead Wire Materiallead Wire Material: |
Teflon,Silicone,Fiberglass |
| Tube Materia: |
SS304,SS316,Ss321,Nicoloy600/800/840 |
| Voltage&Wattag: |
Customized |
Product Description
|
| |
| |
| SS321/316L/310S/INCOLY600/800/825, Titanium (All Seamless SUS tube) |
| |
| high-purity Mgo imported from USA |
| Ni80Cr20, Pure nickel,FeCr, etc... |
| |
| |
| |
| leak current is less than 0.5mA |
Input voltage and wattage | |
Connecting cable:
Wire Material:
Lead wire length 1000mm used for import pure Nickel wire, with high quality and high temperature ≥500°C fiberglass casing.
And with high quality thermocouple fitting.
High power, high lifespan, high density and flexing.
Tube Material:
Standard is Seamless SUS321 Tube, Other can be request. Seamless tube strength is much higher than welded tube.
In particular, the single head tube applied to the mould, because there is no welding seam. Therefore, the The mold scrapped by rupture can be avoided.
Lead wire
We all use NiMo3 wire Ni97% or Pure nickel wire Ni100%, high Nickel content that not easy to carbonize, high lifespan.
We have two kinds type, one is single core, another is 7 core, more core let the wide contact area increased service life.
a. glass fiber insulation nickel wire (temperature 450 degrees -750 degrees)
b. Crimp Teflon line (temperature 250 degrees)
c. Crimp silicon insulated wire (temperature 200 degrees)
d. Crimp fiberglass insulated nickel wire (temperature 450 degrees)
Please note that our manufacture to customer specification. There are many lead options available, including Glass Fibre Leads, Silicon Rubber Leads, PTFE Leads, Ceramic Beaded Leads, Braided Leads and Conduits. Please advise us of the type of leads preferred. If you would like some assistance or advise on the correct lead to use, please do not hesitate to ask.
When ordering Cartridge Heaters, please specify the following information :
1.Type of Cartridge Heater ( please refer to Termination Options ).
2.Ø of Cartridge Heater.
3.Overall length for a straight Cartridge Heaters.
4.Wattage & Voltage
5.Lead type ( glass fibre / PTFE ) & lead length.

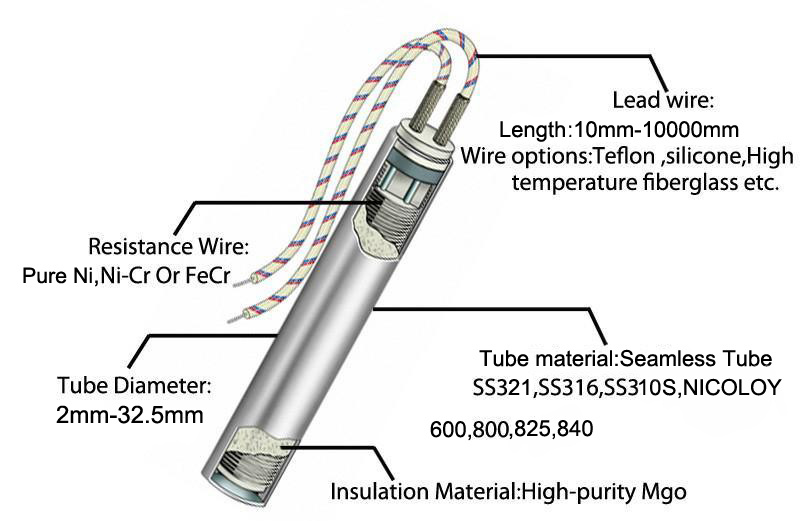

Element component
1. China and Europe BGH and KANTHAL High-grade nickel chromium resistance heating wire,
2. Japan and USA MgO core,
3. Seamless Stainless steel tube
4. Built in cable, or swaged in
• Special sizes, wattages, and materials are available upon request;
• Custom-designed to meet your specifications.
• Pin leads are available
• Have Independent R&D capability.
Why Choose US:
High-quality materials

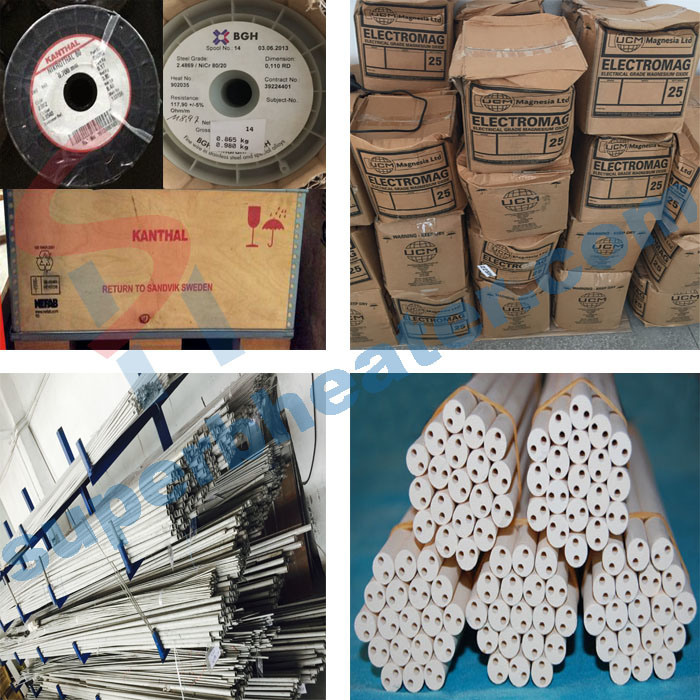

Insulation: UCM(UK) Magnesium Oxide Powder ;KANTHAL ,BJH resistance wires ,SS321Seamless Stainless steel tube;OTC(USA) Tateho (Japan) mgo rod...
OUR ADVANTAGES:
1.Minimum order: 5pcs
2.Delivery time: in stock 1-2days ,out stock 3-7days
3.More than 100 different sizes stock
4.Products are divided into two grades
A grades:use the The world's top material Best quality,Meet or exceed the same quality in Europe and America,Only 40% of the price of similar products in Europe and America To meet customer demand for high quality.
B grades:use the The china top material,Best quality in china ,Meet the standard for quality and price requirements of customers
5.Provide OEM service.
6.Quality Assurance:Under normal conditions consistent with the design range ,
A grades 365days
B grades 180days
Superb Heater Technology Co.,Ltd
has been focused on the production of 2mm to 40mm China manufacturer high density electric heating element cartridge heater 12v since 1985, which is well-known as one of the leading manufacturers and suppliers of 6.35mm to 23mm standard cartridge heaters Lilin cartridge heaters. In the past years, we owned strong reputation for the high quality, reliable performance and strong durability of our products. Should you are interested, please feel free to contact our factory.
Shenzhen superb heater technology Co., Ltd, Founded in 1985, Start is a state run Magnesium Oxide factory, After privatization reform To become a professional to provide all kinds of electric heating products of the comprehensive private joint-stock companies, After years of development company now grown to have include: ChaoHu heating material fitting, JiuDing machinery and spare parts, LiLin cartridge heaters, chaohu band coiling heaters, JXC Industrial heaters five plants, more than 200 employees, assets of more than $ 5 million, Products include various types of industrial heater, cartridge heater, hot runner, thermocouples, band heater and a variety of heater materials and heater equipment to meet customers one-stop shopping for all kinds of heating element, heating materials and heating equipment needs.
Over the years we are committed to technology and product quality improvement, many products similar products meet international quality, in China in the lead, swaged-in leads cartridge heater and diameter less 4mm cartridge heater as China's first single, cost-effective products to give our customers highly recognized, it has been to establish and maintain long-term cooperative relations with more than 700 customers in over 40 countries.
We will insist on our stable style to establish good image in both customers and our partners. We have been insisting on the "REDUCING THE COST AND GIVING ADVANGTAGE TO CUSTOMERS " To provide customers with better products and services, and grow with customers
After long-term accumulation, we have set up agents and partners in India, Dubai, USA, Russia, Brazil, Argentina, Thailand, Korea and other countries to provide convenient and quick service
