| Prod Model: |
Cartridge Heater |
| Function: |
Heating |
Product Description
Descriptions for the cartridge heater:
Cartridge heater is consist of a cylindrical stainless steel tube and thus provide a high corrosion prevention. The heating wire inside which is wound onto a ceramic core. The number of coils varies depending on the power. and provide a great uniform distribution of heat, which considerably increases the long life of the heater as well as prevents the oxidation of the heater wire even at high temperatures .The solids, liquids, and gases need to be heated by cartridge heater, transmit heat quickly by conduction if the producer of the heat (the cartridge) is in direct contact with the heat sink (any solid, liquid, or gas). Widely used for manufacturing plastic and rubber parts in the car industry or in the food processing industry, etc they are also commonly found in the chemical, electronics, medical equipment, packing and nuclear industries.Apart from our broad standard range we also develop and manufacture single head heating tube according to your special demands.
Material Specification
- Welded watertight base (Tig).
- Stainless steel AISI 304/316/321/ INCOLOY.
- Disc ceramic insulator.
- Pure magnesium oxide (UCM, Tateho).
- Resistance wire: Kanthel, BGH, Nickel-chromium 80/20. Melting point 1400º C.
- MGO Rod: Tateho, OTC.
- High temperature wire: Fiberglass wire, Pure Nickel core wire, Telfon wire.
- Conductor without connections.
Features of Product
1. Diameter: 2.5mm - 32.5mm
2. Length: 10mm - 6000mm
3. High power density
4. Long life cycle
5. Warranty: One year
6. Different type of wire available according to the usage environment
Applications of the cartridge heater:
1.Injection moulding - Internal heating of nozzles
2.Hot runner systems - Heating of manifolds
3.Packaging industry - Heating of cutting bars, hot stamps
4.Laboratories - Heating of analytical equipment
5.Medical: Dialysis, Sterilization, Blood Analyzer, Nebulizer, Blood/Fluid Warmer, Temperature Therapy
6.Telecommunications: Deicing, Enclosure Heater
7.Transportation: Oil/Block Heater, Aircraft Coffee Pot Heaters,
8.Food Service: Steamers, Dish Washers,
9.Industrial: Packaging Equipment, Hole Punches, Hot Stamp.
Technical Data

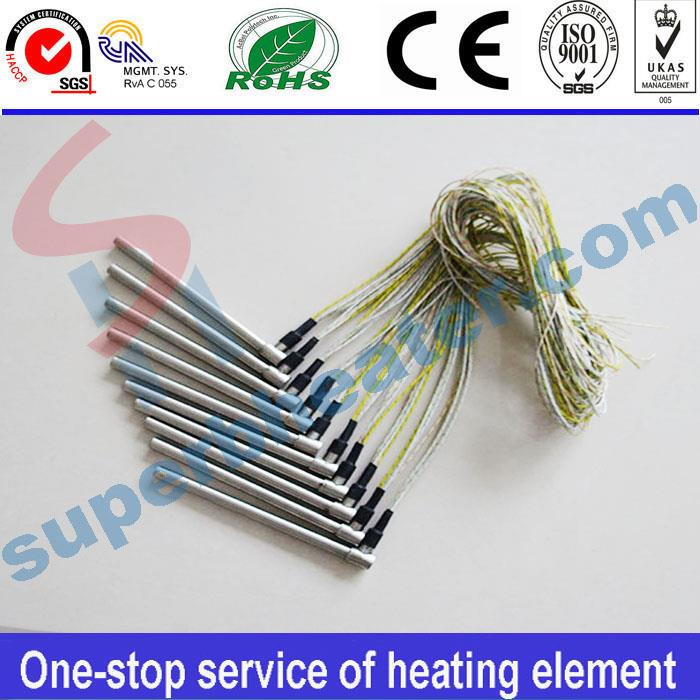

| Name | High Density Cartridge Heater Right Angle Die/ Heating Bar |
| Diameter(mm) | 2.5-32.5mm (Non-standard can be customized) |
| Length | 10mm - 6000mm |
| Max Wattage | 40w/cm2 |
| Application | Mold Tools,Packaging Machinery,Plastic Process Machinery, Food Process Machinery,Printing...etc |
| Max temperature | 927 ºC |
| Insulation resistance (500 [V-DC] unheated) | ≥50MΩ |
| The maximum leakage current (253 [V-AC] unheated) | ≤0.5mA |
| High voltage stability (temperature) Rated voltage | ≤24V -500V-DC> 24V 1500V-AC |
| Wattage Tolerance | +5% - 10% (closer tolerances are available upon special request) |
| Input voltage | 12V-440V (non-standard can be customized) |
| Terminal unheated length | <3mm-20mm |
| Non-terminal unheated length | <3mm-20mm |

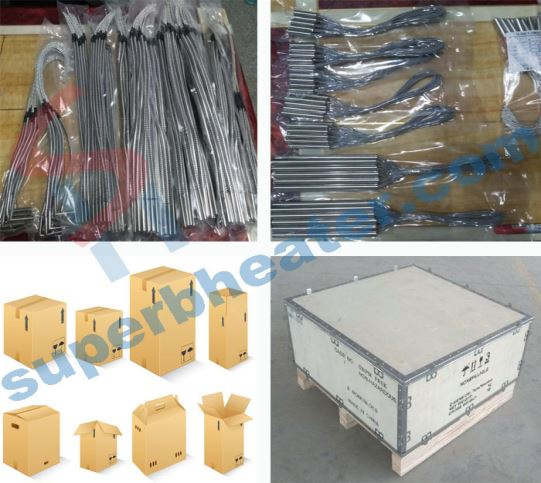

Packing and Delivery
1. Packing details: Standard export package
2. Delivery time: within 15 days
3. Delivery ways: by air, sea or express
