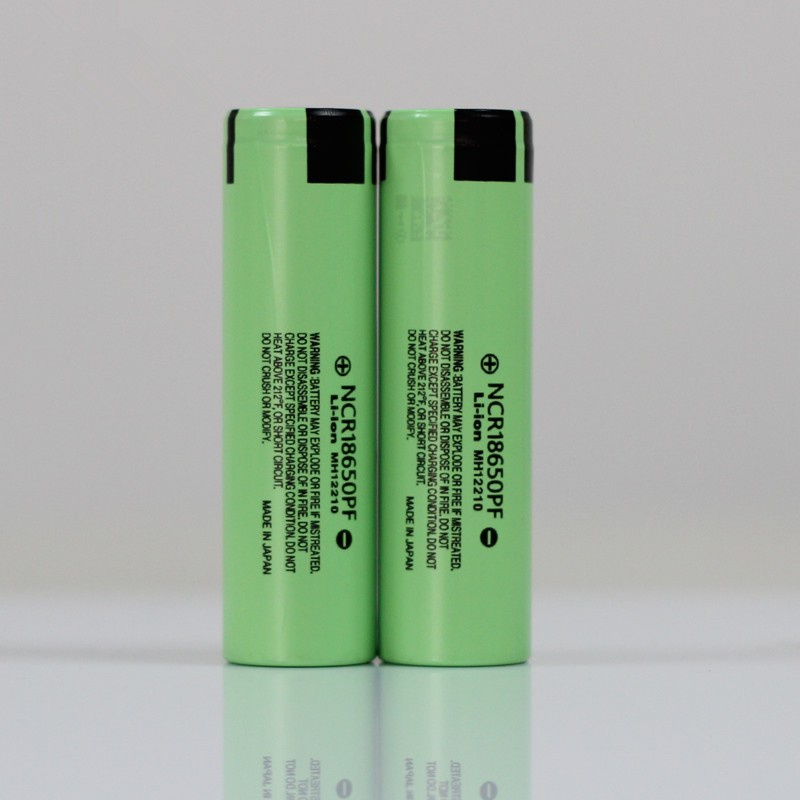

High Drain Rechargeable Battery 18650PF1 3.7V 2900mAh

Name: High Drain Rechargeable Battery 18650PF1 3.7V 2900mAh
Brand: all-electronics-online.com
SKU: 730525112
Availability: InStock
Rating: 4.5 (48 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	NCR18650PF
Capacity:	2900mAh
Type:	Lithium-Ion Batteries
Usage:	Lighting
Discharge Rate:	High Discharge Rate
Shape:	Cylindrical Battery
Rechargeable:	Chargeable
Nominal Voltage:	3.7V
Electrolyte:	Lithium Ion

Product Description

Overview
Quick Details
Place of Origin:Japan
Brand Name:
Model Number:NCR18650PF
Type:Li-Ion
Nominal Voltage:3.6V
Size:18x65mm
Nominal Capacity:2900mAh
Color:Green
Capacity:2900mAh
Max discharge:10A
Cycle life:>500times
Top:Flat Head
OEM/ODM:Yes
Use:Flash Light/power tolls/e-bike and so on
Certificate:
UN38.3/MSDS
Weight:About 50g
Packaging & Delivery
Packaging Details
each battery in one gift box, two batteries in one fire box, then in a carton

Specification

Type	Lithium-ion rechargeable cell
Model	NCR18650PF
Nominal voltage	3.7 V
Nominal capacity	2900mAh
	discharge from 4.2V to 3.0V at 0.2C mA
Minimal capacity	2900mAh
Max charge current	2850 mA 1C
Charging method	charge with constant current 1C to 4.2V, then charge with constant voltage 4.2V till charge current is less than 0.01C
Discharge cut-off voltage	3.0 V, the over-discharge detection voltage of PCM
Operating environment	Charging, 0°C ~ 45°C ; 65±20%RH
Operating environment	Discharging, -20°C~60°C ; 65±20%RH
Storage environment	-20°C~45°C 65±20%RH
Storage environment	storage for a long time(>3 months) and the storage condition shall be:<35°C;65±20%RH;3.7~3.9V
Cell Weight (Approx)	45g
Cell Dimension (Max)	according to customer demand

Advantages

1, High energy density

2, High working voltage for single battery cells

3, Pollution-free

4, Long cycle life

5, No memory effect

6, Capacity, resistance, Voltage, platform time consistency is good

7, With short-circuit production function, safe and reliable

8, Factory price& High quality

9, Good consistency, low self discharge

10, Light weight, small size

Features

1, Longer storage life than NiMH Batteries

2, Light weight and higher energy density than any rechargeable battery

3, Installed IC chip will prevent the battery pack from over charge and over discharge.

It helps protect battery chemistry integrity and prolongs battery life.

4, Installed polyswitch will cut off power if battery discharge current more than 6.6Ah

5, Perfect for building up battery pack for medical equipment Back-up or EPS Emergency Power

6, Supply which requires compact size and lighter weight

7, The battery module is wrap by PVC

Shipping
1. We will ship the products within 7 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsiblility of the shipping service.

Payment

1.We accept T/T , PAYPAL , Western Union, Cash and so on.
2.If you prefer other payment terms,please contact us.

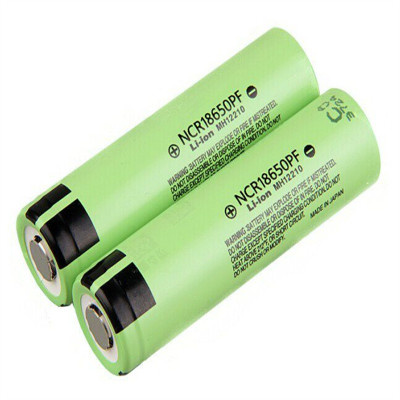

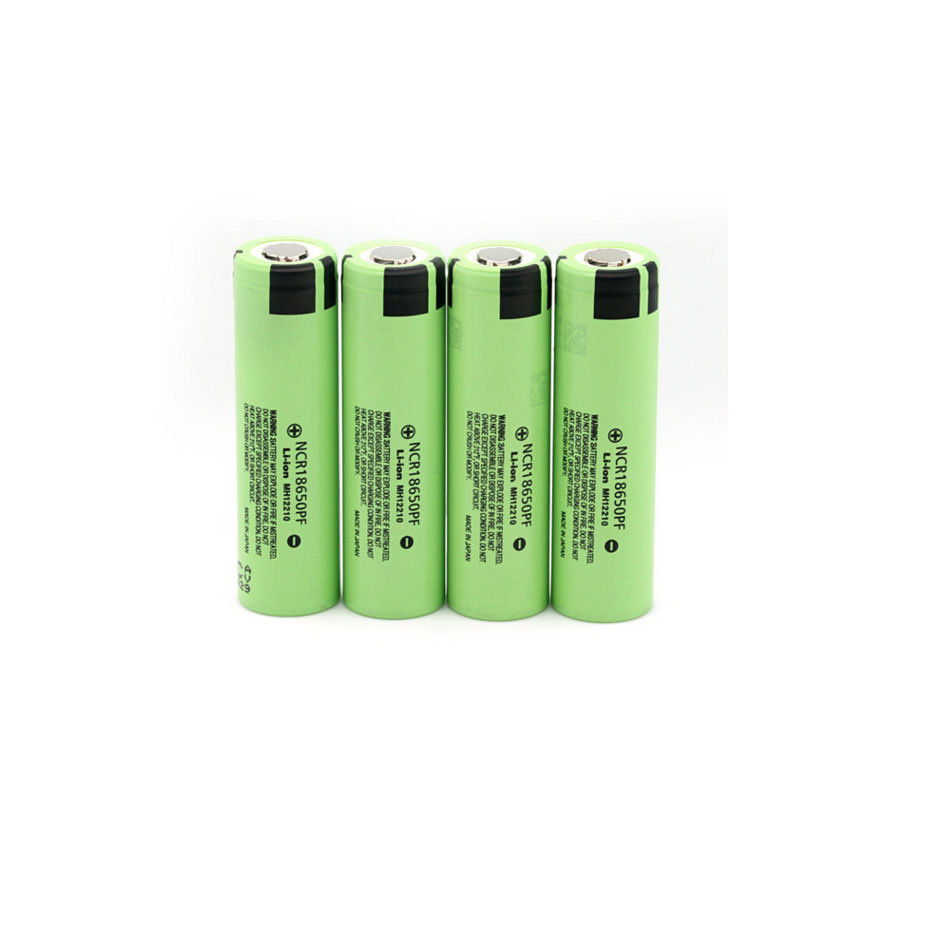

Photos show
