High Effciency 96W 2.4A~4A Constant Current Dimmable LED Driver

Name: High Effciency 96W 2.4A~4A Constant Current Dimmable LED Driver
Brand: all-electronics-online.com
SKU: 803674455
Availability: InStock
Rating: 4.8 (130 reviews)

Price:	US $ 13.28-14.28/Piece
Min Order:	300/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLD096-1TAF2A-XXX
Output Power:	96W
Dimming:	0-10V Dimming
Usage:	Construction
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Power Supply Voltage:	90~305VAC
Pack Sealing Size:	215X42X30 mm
Brand:	Fsp-Powerland

Product Description

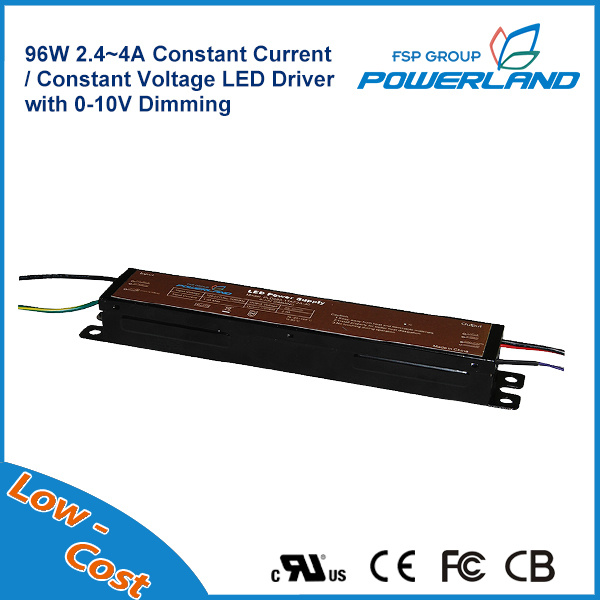

High Effciency 96W 2.4A~4A Constant Current Dimmable LED Driver

Powerland's PLD096-1TAF2A-XXX series offers constant current drivers with wide-range dimmable output current and 90~305Vac universal input.

The output current of this series is up to 2.4/4A ,and designed for 0-10V dimming applications

Applications
Indoor LED lights
High bay and low bay lights, LED panels

Specifications

Input
Voltage

Output
Power

Output
Voltage

Output
Current

Efficiency

Max. Case
Temperature

Max. Input Current

Max. Input
Power

THD

Power
Factor

90~305Vac

96W

12V

…
40V

2.4A

…

90%

90oC

1.3A

113W

<20%

>0.95

Features
> 50,000 hours lifetime at 75oC Tcase

> 5 years warranty at 75oC Tcase

Constant current output
Compatible with 0-10V dimming
Universal input voltage: 90~305Vac
UL Class 2 Output

Safety according to UL8750 &EN61347-2-13

EMC according to FCC Part 15 Class B

Lightning, OVP, SCP, & Open Circuit Protection

Electrical Specifications

Model	PLD096-1TAF2A-24	PLD096-1TAF2A-40
Output Voltage	12~24V	20~40V
Output Current	4A	2.4A
Dimming	0-10V Dimming
Output Power	96W	96W
Max. Current Ripple	200mA	200mA
Max. Voltage Ripple	240mV	400mV
Voltage Range	90~305Vac	90~305Vac
Frequency Range	47~63Hz	47~63Hz
Max. Input Current @ 230Vac	1.3A	1.3A
Max. Input Power	113W	113W
Power Factor	>0.95 @ 115Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load
Efficiency	90%	90%
Max. Open Circuit Voltage	26V	43V
THD	<20% @ 120Vac & 80~100% load, <20% @ 277Vac & 80~100% load
Protections	OVP, OTP, OCP, SCP
Environmental Protection	UL Dry & Damp, and Type TL
Working Temperature	-20~+60oC
Max. Case Temperature	90oC
Surge Protection	1kV/2kV
Agency Approbations	UL8750
Electromagnetic Compliance	Per Title 47 CFR Part 15 Class B
Ansi Surge Type	1.2/50μs Combination Wave (w/t 2Ω)
Isolation	Primary to Secondary: 3750Vac / 10mAMax / 60seconds
Dimension	215x42x30 mm (8.46x1.65x1.18 inch)
Mounting Length	228 mm (8.98 inch)
Overall Length	242 mm (9.53 inch)
Weight	0.65 kg (1.43 lb)
Life Time	>50,000 hours @ full load, 75oC Tcase

* Unless otherwise noted, the data are based on 25oC ambient temperature, 230Vac input voltage, and full load.

Electrical Specifications

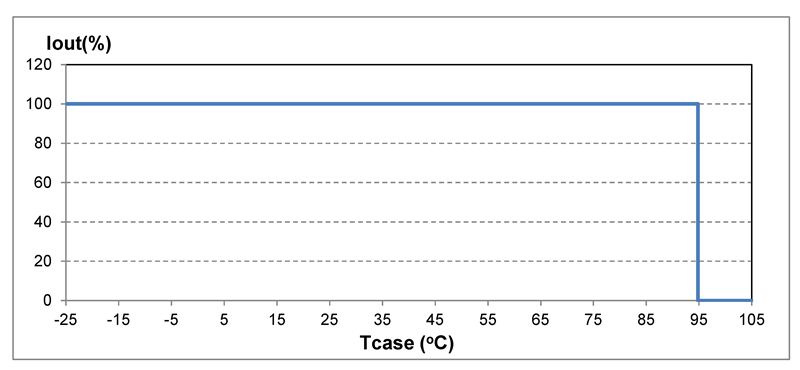

Output Current vs. Case Temperature (with ±5oC Tolerance)

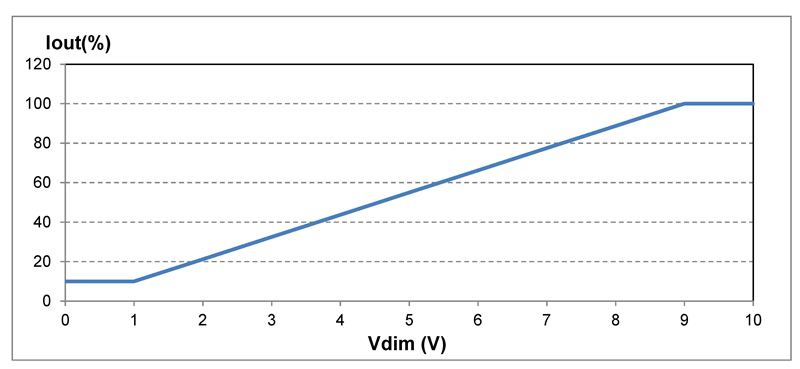

Output Current vs. 0-10V Dimming Control Voltage

Performance Characteristics

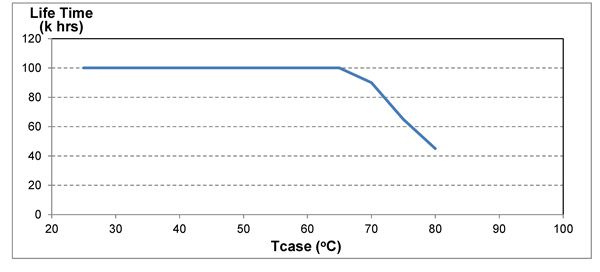

Life Time vs. Case Temperature
