| Prod Model: |
EP3000 series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
1000W-6000W |
| Charging Current: |
Max 70AMP |
| DC: |
12V/24V/48V |
| Output Wave: |
Pure Sine Wave |
| Transformer Buit In: |
Yes |
| Generator Compatible: |
Yes |
| Buit In Battery Charger: |
Yes |
| Nominal Input Voltage: |
230VAC(120VAC Selectable) |
| Nominal Input Frequency: |
50Hz/ 60Hz(Auto Detection) |
| Phase: |
Single |
| Power Source: |
Solar Power |
| Application: |
Electric Tools |
| Brand: |
Must |
Product Description

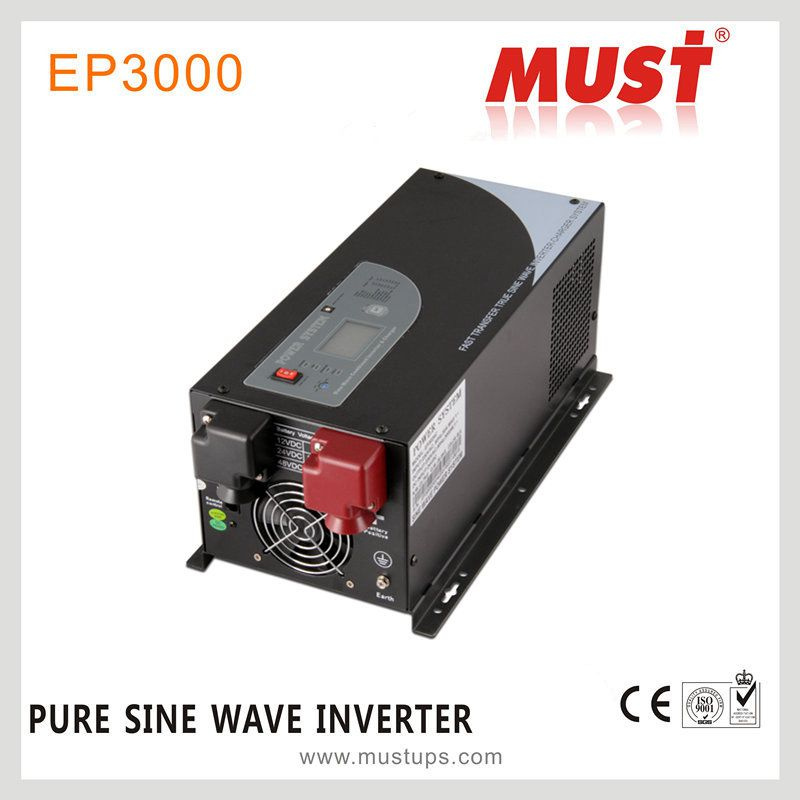

EP3000 Series Power Inverter Features 1.12/24/48vdc input optional
2.Max.charge current 70A.
3.Pure sine wave inverter with inbuilt pure copper transformer
4.Pure sine wave output inverter
5.Intelligent three-stage batteryCharger
6.Power inverter with LCD status display
7.CE certification available
8.50hz/60hz automatic
9.Rs232 with free CD(optional)
10.Charge current adjustable
11.Battery priority function(optional)
12.1KW to 6KW
Detailed Description:
| EP3000 Series Inverter 1KW-6KW Specification |
| MODEL | EP1012/1024 | EP1512/1524 | EP2012/2024 | EP3012/3024/3048 | EP4024/4048 | EP5024/5048 | EP6024/6048 |
| Rated Output Power (W) | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 |
| LINE MODE SPECIFICATIONS |
| Input Voltage | 230Vac(120VAC selectable) |
| Input Frequency | 50Hz/60Hz (Auto detection) |
| Output Voltage Waveform | Pure sine wave |
| Over-Load Protection(SMPSload) | Circuit breaker |
| Output Short Circuit Protection | Circuit breaker |
| Efficiency (Line Mode) | >95% |
| Auto Transfer Relay | 30A | 40A |
| Transfer Time | 10ms (typical) |
| Pass through without Battery | Yes |
| Max Bypass Overload Current | 30A |
| INVERT MODE SPECIFICATIONS |
| Output Voltage Waveform | Pure sine wave |
| Power Factor | 1 |
| Output Voltage (V) | 230Vac/120 ±10% | 230Vac±10% |
| Output Frequency (Hz) | 50/60Hz ± 0.3Hz |
| Auto Tracking Main Frequency (Hz) | 50Hz @ 48-54Hz; 60Hz @ 58-64Hz |
| Output Voltage Regulation | ± 10% rms |
| Efficiency | > 80% |
| Over-Load Protection(SMPSload) | (110%150% ±10%; Fault (shutdown output) after 20s |
| Surge Rating | 3000VA | 4500VA | 6000VA | 9000VA | 12000VA | 15000VA | 18000 VA |
| Capable Of Starting Electric Motor | 1 HP | 2 HP | 3 HP |
| Inverter Breaker Size | 10A | 30A | 40A |
| DC Input Voltage | 12V/24V | 12V/24V | 12V/24V | 12V/24V/48V | 24V/48V | 24V/48V | 24V/48V |
| Min DC Start Voltage | 11V/22V/43V |
| Low Battery Alarm | 10.5Vdc ± 0.3Vdc for 12V battery; 21.0Vdc ± 0.6Vdc for 24V battery; 42.0Vdc ± 0.6Vdc for 48V battery |
| Low DC input Shut-down | 10.0Vdc ± 0.3Vdc for 12V battery; 20.0vdc± 0.6Vdc for 24V battery; 40.0Vdc± 0.6Vdc for 48V battery |
| High DC input Alarm & Fault | 16Vdc ± 0.3Vdc for 12V battery; 32Vdc ± 0.6Vdc for 24V battery; 64Vdc ± 0.6Vdc for 48V battery |
| High DC input Recovery | 15.5Vdc ± 0.3Vdc for 12V battery; 31.0Vdc ± 0.6Vdc for 24V battery; 62.0Vdc ± 0.6Vdc for 48V battery |
| Power saver | Load ≤25W |
| CHARGE MODE SPECIFICATIONS |
| Input Voltage | 230Vac / 1200Vac |
| Input Voltage Range | 155-265Vac / 96-127Vac |
| Output Voltage | Same as input voltage |
| Multi Stage Smart Charger (Amp) | 35A/20A | 65A | 65A/40A | 65A/45A/25A | 65A/35A | 65A/40A | 65A/50A |
| Charge Current Adjustable Gear | 25%, 50%, 75%, 100% |
| Charger Short Circuit Protection | Circuit breaker |
| Over Charge Protection | Bat. V ≥ 15.7Vdc/31.4Vdc/62.8Vdc, beeps 0.5s every 1s & fault after 60s |
| GENERAL SPECIFICATIONS |
| Safety Certification | CE, Soncap, ISO9001 |
| Operating Temperature Range | 0°C to 40°C |
| Storage temperature | 15°C below zero to 60°C |
| Operation humidity | 5% to 95% |
| Audible Noise | 60dB max |
| Cooling | Forced air, variable speed fan |
| Net Weight (KG) | 16 |
| 21 | 24 | 35 | 44 | 45 |
| Gross Weight (KG) | 19 |
| 24 | 28 | 39.2 | 48 | 49 |
| Inverter Size | 1000W/1500W/2000W/3000W: 423X185X160MM 4000W/5000W/6000W: 600X185X155MM |
| Carton Box Size | 1000W/1500W/2000W/3000W: 570*315*300MM 4000W/5000W/6000W: 755*319*288MM |
| Wooden Case Size | 1000W/1500W/2000W/3000W: 614X362X359MM 4000W/5000W/6000W: 799X362X359MM
|
About US :
Customers Service:
(1)Warranty :
Our product warranty is valid for 12 months after delivery. We undertake to repair any malfunctioned units due to defective components of inadequate workmanship ,but specially expecting any defects resulting from normal wear and tear of improper use of the products.
(2)Lead time:
a.sample orders will be delivered from our factory within 7working days .
b.General orders(under 2000pcs) will be delivered from our factory within 25 working days.
c. Bulk orders (over 2000pcs )will be delivered from our factory within 35 working days at most
(3)shippment :
By sea ,airway , EMS, DHL, FedEx, TNT, UPS or other express.
(4)Payment: T/T (Telegraphic transfer), and Western Union
Contact us:
Must power produce green stable high quality ups,inverter ,solar system,we
light your life,light up the world,we grow up everyday,join us !!
Mobile//: +86-13691859346
Tel:+86-755-29109550
Shenzhen Must Power Limited established in 2010, with the headquarter in Hongkong, which is a professional hi-tech enterprise specialized in UPS, Power Inverter, Solar Power, VRLA Battery development, manufacturing, sales and after-service.
Our comprehensive product lines include:
Off-line UPS, line interactive UPS, On-line UPS, Solar inverter, Power inverters, Stabilizers and Solar battery.
Most of products from MUST applied with CE, FCC certificates. The main markets are Ukraine, Russia, Vietnam, Thailand, Pakistan, India, etc. Must Power Limited is one of the authorized suppliers for China Citic Bank, Ministry of Information Industry of China, Ministry of Power Industry of China, Ministry of Transportations of China.
With an excellent R & D team formed by over 30 engineers and a skilled, dedicated workforce, together 10, 000 square meter in-house manufacturing facilities in Guangdong China, Shenzhen Must Power Limited has innovated, developed and improved the products to meet the demands of customers and keep pace with changing demands of the industries. With 'close to customer' notion, we have aligned most of its resources to support our Original Equipment Manufacturer (OEM) customers, and work with our customers as power partners. Our mission is to be the best supplier of power solutions, and to accomplish this, we will continue to tailor products for market needs while maintaining high quality, integrated customer service and prompt delivery.
