| Prod Model: |
2P, 4P, 6P, 8P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Poles: |
2poles, 4poles, 6poles, 8poles |
| Output Power: |
0.06~7.5kw |
| Frequency: |
50Hz or 60Hz, 50Hz & 60Hz |
| Bearing: |
C&U, NSK, SKF |
| Installation Form: |
Foot or Flange Can Be Changed Freely |
| Shell Protection Class: |
IP54 or IP55 |
| Function: |
Driving |
| Number Of Poles: |
2poles, 4poles, 6poles, 8poles |

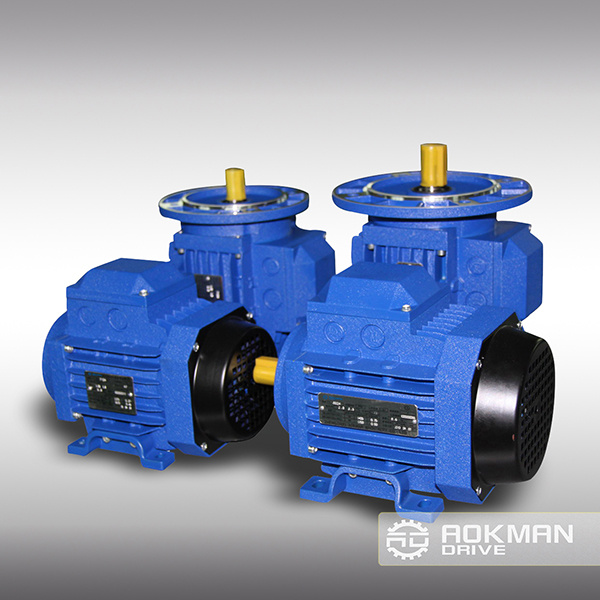

Product Description
1. Output power:0.18~200KW
2. Main Materials
Motor shell main materials is ADC Aluminum, cold-rolled sheet, F class high-temperature enameled wire, high strength screw plating color, 40 Gr chrome steel rotor spindle, appearance surface powder coating process, wear-resistant, high temperature resistant, not ordinary paint.
3. Applications
Using voltage range width is suitable for many countries demands, no need extra customized
1)220/380/400/415V--50HZ
2)440V/460V/--60HZ
Achieve national energy saving level 3 energy efficiency.
Motor technical indications meet Europe Efficient Motor Standard.
Rotor shaft head blackening processing and anti-rust performance more powerful, fashion, crust and durable.
Comply with technical indications of CE and China CCC.
4. Products characteristics
Motor appearance: unique appearance design, activities foot, flexible assembly, various installation type.
Mounting type:
B3--horizontal
B5--big flange vertical
B14--small flange vertical
B35--horizontal/vertical mounted
B34--foot small flange mounting
Special appearance is helpful for heat dissipation cooling, modular design is more convenient to use and maintenance.
5. Dimensions
Customization according to the application.
6. Motor main technical indications:
Motor adopts to full closed structure, protection grade can up to IP55
F-class insulation class
The maximum temperature up to 150ºC
B-Level temperature assessment
Low vibration and low noise
7. Perform Standard
All universal motor implementation of uniform production standards:
--Motor power class and dimensions: GB4826-84,GB4772.2-84,IEC72
--Motor criterion: GB755-87,IEC34-1
--Structure and mount type: GB997-81,IEC34-7
--Shell protection level: GB4942.1-85,IEC34-5
--Cooling methods: GB/T1993-93,IEC34-6
8.Technical Data
Output Power
| 0.06~7.5KW |
Poles
| 2poles, 4poles, 6poles, 8poles |
Frequency
| 50HZ or 60HZ, 50HZ & 60HZ |
Shell Protection Class
| IP54 or IP55 |
Insulation Classes
| F |
| Installation Form | Foot or Flange can be changed freely |
Bearing
| C&U, NSK, SKF |
| Color | RAL 5010 blue or silvery white or customized |
