High Efficiency Cast Aluminum Heater, Cabinet Heater Hgk047 Series

High Efficiency Cast Aluminum Heater, Cabinet Heater Hgk047 Series
Price: US $ 10/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: HGK047

Product Description

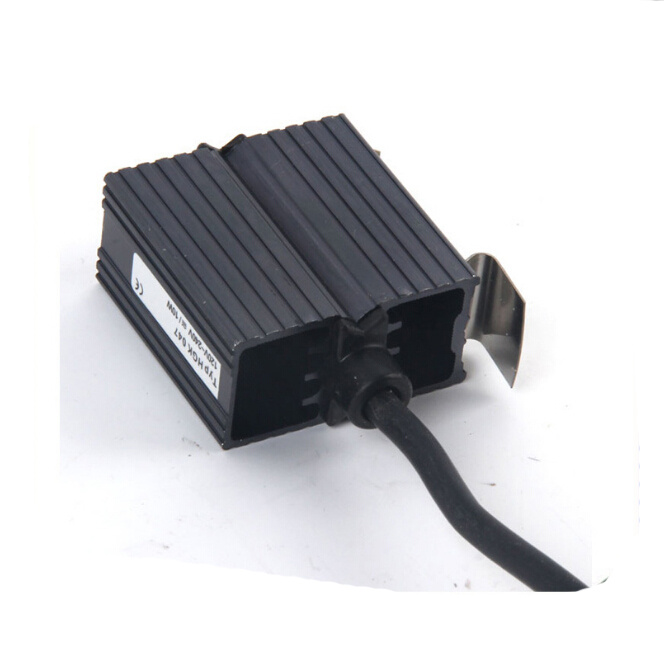

Small semiconductor Heater HGK 047 Series

The heaters are used in enclosures where condensation is to be prevented or the temperature may not fall below a minimum value. In this way corrosion is avoided and an even temperature is ensured.

Technical Data

Heating elementPTC resistor, self regulating and temperature limiting
Heater bodyextruded aluminium profile, anodised
Mountingclip for 35mm DIN rail, EN 50022
Fitting positionvertical
Operating/Storage temperature-45 to +70 °C (-49 to +158 °F)
Protection type/Protection classIP54 / I (earthed)
Accessoiresscrew fixing, Art. No. 09024.0-00 (1 packing unit = 2 pieces)



Art. No.Operating voltageHeating capacity*Inrush current max.Length (L)Weight (approx.)ConnectionApprovals
04700.0-00110-240V AC/DC**10W1.0A50mm0.10kg3 x 0,5mm² x 300mm sheathed cable (silicone)VDE
04701.0-00110-240V AC/DC**20W2.5A60mm0.20kg3 x 0,5mm² x 300mm sheathed cable (silicone)VDE
04702.0-00110-240V AC/DC**30W3.0A70mm0.20kg3 x 0,5mm² x 300mm sheathed cable (silicone)VDE
04700.9-00110-120 V AC/DC10W1.0A50mm0.10kg3 x AWG 20 x 300mm sheathed cableUL File No. E150057
04701.9-00110-120 V AC/DC20W1.5A70mm0.20kg3 x AWG 20 x 300mm sheathed cableUL File No. E150057
04702.9-00110-120 V AC/DC30W1.5A100mm0.20kg3 x AWG 20 x 300mm sheathed cableUL File No. E150057

*at 20°C ( 68°F) ambient temperature
**(min. 110V, max 265V) Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.

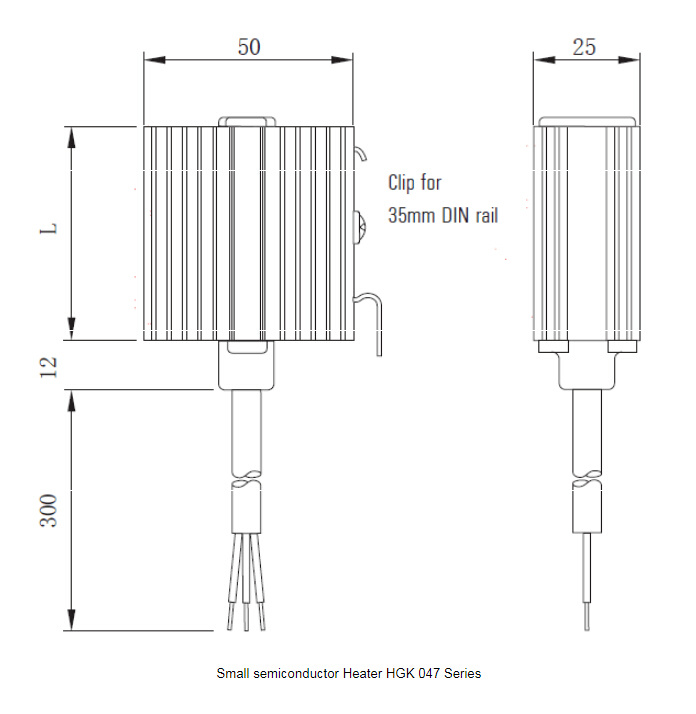

Technical drawing

Profile

LANGIR A professional design, manufacture of Anti Vandal Switches, Piezo switches, Capacitive switches, Piezo Keypads and DC circuits - Miniature circuit-breakers for DC and solar generation; The switches offer attractive, robust and durable switches, available with different bushing diameters, actuator shapes, bushing and actuator materials.

Established in 2009, Langir Company has developed very quickly in this field. With the powerful technology support and advanced production and inspection devices, Langir products have exported to many regions and many countries.

We accept OEM and small trial orders, contact us now for more information. All inquiries will be replied within 24 hours. We also cordially welcome all clients to visit us and discuss business and place orders with us by any means of communication.

Assets

Technical and industrial excellence:

1. Strong technical expertise: R&D departments, large number of design tools, technological

Monitoring…

2. In-house design and fabrication of tooling

3. Control of numerous technologies and all the production processes

4. Large production capacity: Automated processes

Quality of products and services:

1. The widest product offering on the switch market

2. Numerous approvals and certifications (RoHS, REACH, CE, CCC, CB and TUV … )

3. Continuity in the supply of all product ranges

4. Industrial autonomy

Engineering & Production

LANGIR vertical integration for customer service from raw material transformation - plastic powders, metal bands - to finished products, through the design and production of tooling, LANGIR controls all the production stages. LANGIR has a strong reputation for quality, confirmed by the ISO9001: 2008 certification. Our products are designed and produced in accordance with quality standards and environmental requirements.
