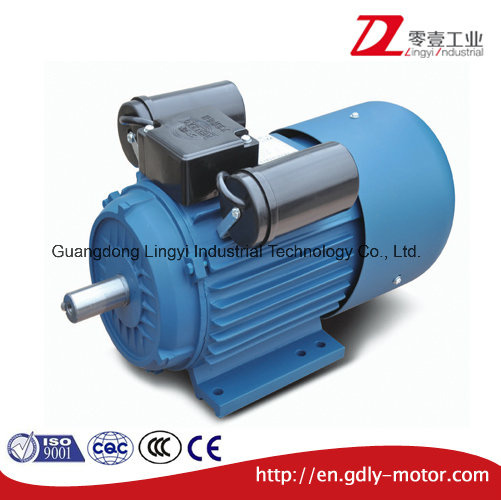

High Efficiency Double Value Capacitor Single Phase Induction Electric Motor

Name: High Efficiency Double Value Capacitor Single Phase Induction Electric Motor
Brand: all-electronics-online.com
SKU: 828081285
Availability: InStock
Rating: 4.3 (41 reviews)

Price:	US $ 25/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YY
Frame Size:	56-132
Frame Material:	Cast Aluminum
Color:	Silver,Blue (as Customers Requirement)
Output:	1/3HP-5HP
Number Of Stator:	Single-Phase
Certification:	Ce, SGS, ISO, CCC

Product Description

Basic Motor Information

1. Frame size	56-132
2. Power	0.25-4KW (1/3HP-5.5HP)
3. Voltage	220V
4. Rated Frequency	50 Hz/60Hz
5. Poles	2/4/6
6. Speed	3000/1500/1000 r/min
7. Ambient Temperature	-15°C≤0≤40°C
8. Duty	continuous (S1)
9. Insulation Class	B , F
10. Protection Class	IP44, IP54
11. Frame material	Cast iron or aluminum
12. Cooling Method	IC411
15. Altitude	No more than 1,000 meters above sea level

Motor Features
1.The mounting dimension is fully comformed with IEC standard.
2.High starting torque,smooth turning.
3.Low temperature rise.
4.Low noise.
5.Slight vibration.
6.Power saving.
7.Long life.
8.Beautiful appearance.
9.Outstanding performance,easy maintenance.

Application
widely used in the air compressor,pump,refrigerator,washing machine,medical equipment,wood-working machinery,all kinds of agricultural machinery and so on.

FAQ
Q: What is your MOQ of this item?
A: 5PCS. For the first time cooperation, we accept trial sample order.

Q: What's your payment terms?
A: 30% of contract value as deposit via T/T, 70% balance before shipment via T/T or L/C at sight.

Q: What's the delivery time?
A: 30 days after deposit received.

Q: How long is your warranty?
A: 12 months after the B/L be issued.

Office Block

Team

Guangdong Lingyi Industrial Technology Co., Ltd set up since 1997, with 20 years development, we become one of the best companies in the industry for mechanical and electrical products system integration, logistics service and investment. The company has set up 21 subsidiaries located in southern, central, eastern and northern China, .

The products categories include:

1, Transmission Products: High and low voltage electric motors, geared motors, gear boxes, bearings, inverter and complete electrical cabinets

2, Automation Products: Automation systems, motion control, low voltage control products and systems, sensor and communication products,

3, Power distribution Products: Low-voltage power distribution products, medium voltage circuit breaker, intelligent building system and equipment.

4, Machinery components.

Count on our 20 years industry experiences. Guangdong Lingyi Industrial Technology Co., Ltd give you one-stop industrial products sourcing, procurement, system integration and services, satisfy your different needs in the industry.

We are looking forward to cooperating with you.
