SAFEE ELECTRIC EQUIPMENT CO., LIMITED >> High Efficiency Hybrid Solar Inverter 30kw

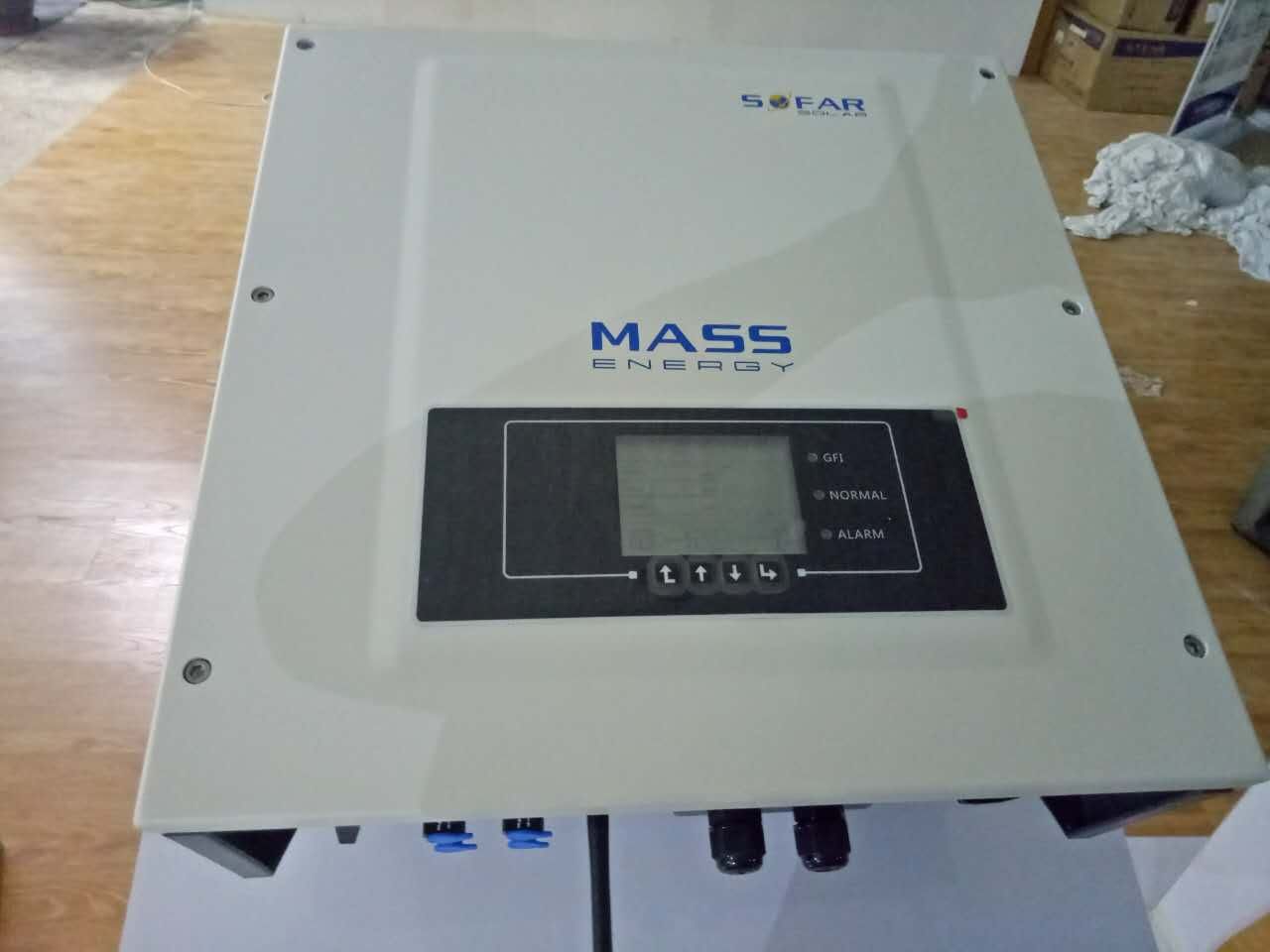

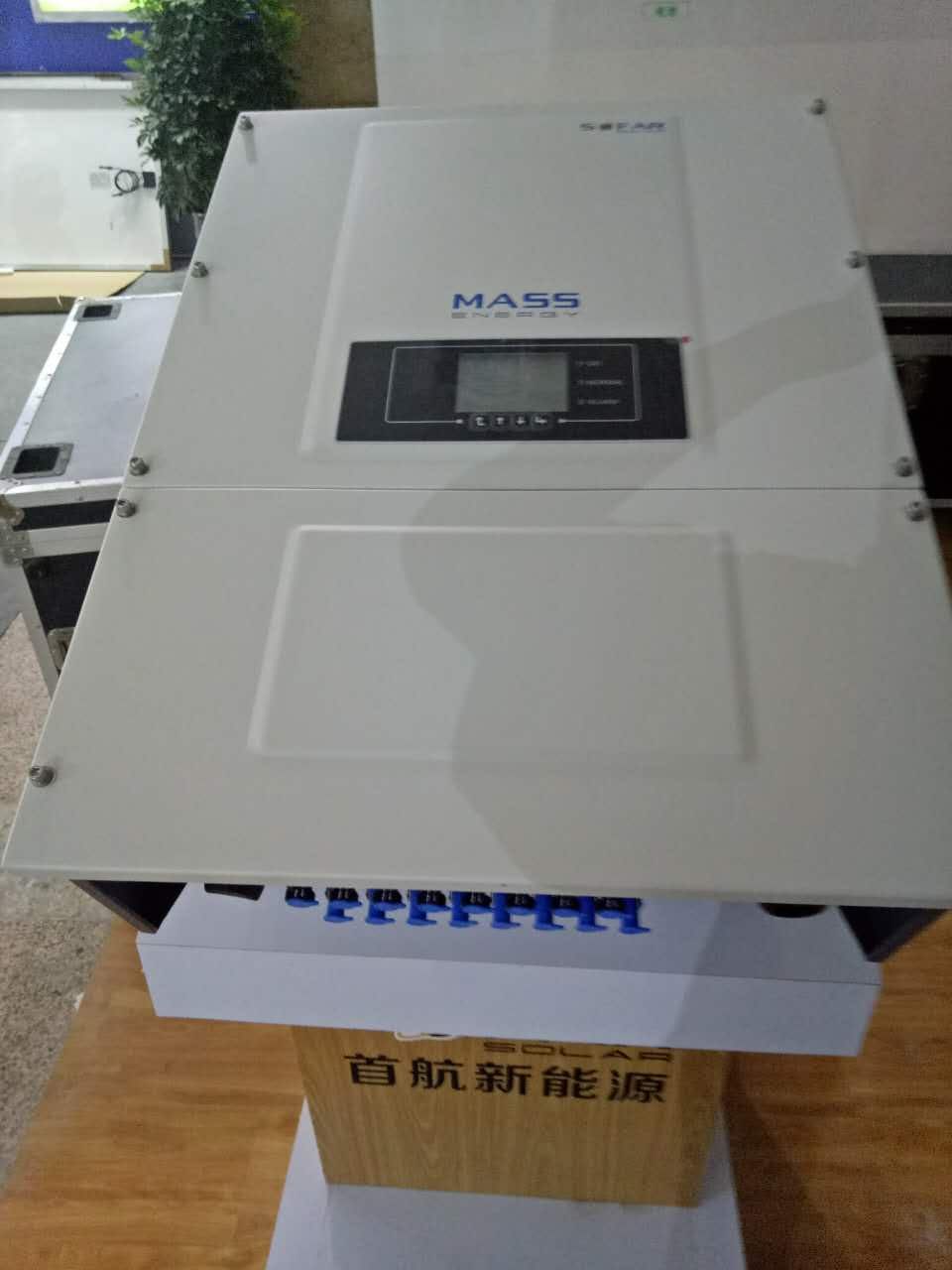

High Efficiency Hybrid Solar Inverter 30kw

High Efficiency Hybrid Solar Inverter 30kw
Price: US $ 290-326/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Color: Silver
Protection: Short Circuit Protection
Output Current: 13A~26A
Size: 478X344X170mm
Warranty: 5 Years

Product Description

Production Description
MODELSofar 3000TLMSofar 3680TLMSofar 3000TLMSofar 4000TLMSofar 4600TLMSofar 5000TLM
Input(DC)
Maximum output3100w3800w4160w4800w5200w6300w
Single channel MPPT maximum dc power2000w(200v-520v)2400w(200v-520v)2600w(200v-520v)3000w(200v-520v)3150w(250v-520v)
Number of independent MPPT                                                                   2
Maximum input voltage                                                                  600V
Initiating input voltage
                                                             120v(+/-5v)
Rated input voltage                                                                360v
MPPT voltage range                                                          100v-580v
Single channel MPPT maximum input current10A/10A12A/12A13A/13A15A/15A
Single channel MPPT input short circuit current12A14A16A18A
Output(AC)
Maximum ac power3000VA3680VA4000VA4600VA5000VA6000VA
Nominal ac voltage                                                 230V
Nominal ac voltage range                                             184V-276V
Frequency range                                       44~55Hz/54~66Hz
Maximum output current13A16A17.5A20A22A26A
Total harmonic component                                                   <3%
performance
Max efficiency                                             97.6%
Weighted efficiency(Europe/California)                                         97.1%/97.3%
Self-discharging at night                                               <1w
Start the power                                                  20w
MPPT efficiency                                                >99.5%
Protection
Dc reverse protection                                              yes
Dc switch                                          selectable
certification             CE,CQC,AS4777,AS3100,VDE 4105,C10-C11,G83/G59
communication
Standard communication mode                                          RS485+wifi,GPRS
Job information storage                                                  25years
Conventional data
Ambient temperature range                                                 -25 ~60°c
Protection level                                                    IP65
relative humidity range                                 0~95% No condensation
Maximum operating altitude                                              2000m
dB                                              <25dB
The weight                                              18kg
Cooling way                                      Natural cooling
dimension                                      478x344x170mm
Packaging and shipping







Our services


1. Rich experience in manufacturing and exporting electric equipment.

2. High quality and competitive price.

3. Strict quality control and excellent after-sales service.

4. Manufacturing according to customers requirements is available.




SAFEE ELECTRIC EQUIPMENT Co., Limited, founded in 2013, is set research and development in our country, production, sales in the integration of science and technology communication EQUIPMENT, fittings professional manufacturers, the company headquarters is located in hebei province shijiazhuang qiaoxi, branch is located in hebei xingtai guangzong county industrial area, transportation is work, the environment is superior.

The company covers an area of more than 28000 square meters, The company existing staff 200 people, o quality management personnel more than 20 people, to meet The rapid growth of demand, The company established a long - term development planning and recent plan, enables The system to implement effectively, make The company fast and efficient.

My company 's existing: Steel strand, circuit, iron casting, all kinds of standard parts, safety instruments and other electric products, gradually to export products from domestic transformation.

Specilized manufacturing factories, Owning skilled workers, advanced equipment and strict quality control process, MINYANG has passed ISO9001: 2000 and obtained CE, CB, CCC etc. Certificates. Our products are sold throughout the country, marketing has entered the export-oriented, products are sold to Asia, Africa, Middle East, Western Europe, eastern Europe and South America market, modern management and perfect after-sales service system, to build China's power industry well-known brands, we will be more hard work, adhering to the principle of quality is the enterprise life, to a higher standard, create value for users, with global cooperation, hand in hand and win-win marketing idea is willing to work with new and old customers at home and abroad hand in hand, altogether will create the glorious future, Sincerely welcome to visit our company, we supply superior quality products and excellent service always.
