| Prod Model: |
PSC3000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Charger: |
20AMP |
| Output Wave: |
Pure Sine Wave |
| Display: |
Digital LCD |
| Peak Power: |
2 Times as Rated Power |
| Transfer Time: |
10ms |
| Feature: |
Compact Size and Light Weight |
| Control: |
Advanced MCU Microprocessor Control |
| Input Voltage: |
100-270V |
| Power Factor: |
0.7 or 0.8 |
| Efficiency: |
95% |
Product Description

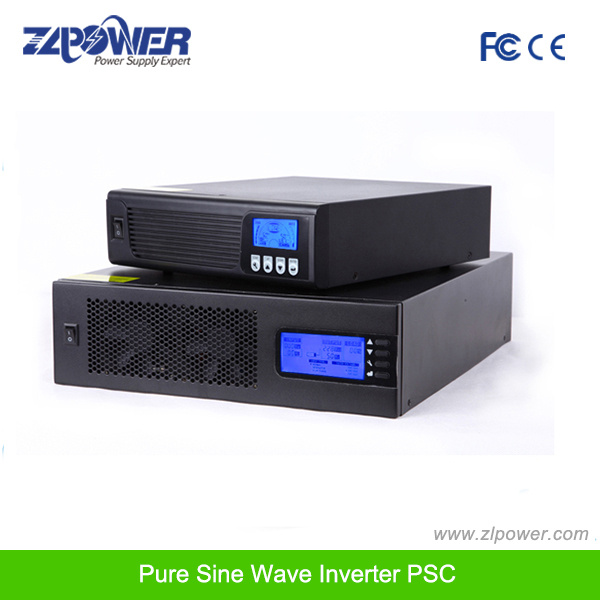

Pure Sine Wave Inverter/Charger System
INVEREX 3KVA
The High Performance Long Backup Power Solution for Home and
Office Appliances
The PSC3kva inverex pure sine wave inverter/charger adopts superior features and is
Designed with the highest standards in the industry. The high frequency structure
Reduces the size and achieves the highest power density in the market. Comprehensive
LCD display provides system status, and user-friendly panel eases program
Settings. Designed for diverse applications, 3kva inverex promises to fulfill
The demands from home to heavy-duty industrial environment.
High-frequency switching technology for compact size and light weight
Pure sine wave output for wide range of applications and harsh environment
High efficient(>90%) DC-to-AC conversion minimizing energy loss
Low power "Power Saving Mode" to conserve energy for less than 10W
High power density design (up to 6 Watts/In3)
Input/output isolated design for the maximum operation safety
Comprehensive status LCD indicators
Supporting Home Appliances / Office Equipments/ Lighting Equipments/ Moto-
Based Equipments (Such as Fan, Air-Conditioner, Washing Machines)
Multiple protection: Input low voltage / Overload / Short circuit / Low battery alarm
/ Input over voltage / Over temperature
| MODEL | PSC3K-24 |
| Input Voltage Waveform | Sinusoidal (utility or generator) |
| Nominal Input Voltage | 230Vac |
| Low Line Disconnect | 170Vac±4%(NOR)
90Vac±4%(GEN/WID) |
| Low Line Re-connect | 180Vac±4% (NOR)
100Vac±4% (GEN/WID)
Note: 1.NOR setting can be used for general electrical appliance 2. WID setting can be used only for some special load, such as lamp, fan. |
| High Line Disconnect | 280Vac±4% |
| High Line Re-connect | 270Vac±4% |
| Max AC Input Voltage | 300Vac rms |
| Nominal Input Frequency | 50Hz / 60Hz (Auto detection) |
| Low Line Frequency Disconnect | 40±1Hz |
Low Line Frequency
Re-connect | 42±1Hz |
| High Line Frequency Disconnect | 65±1Hz |
| High Line Frequency Re-connect | 63±1Hz |
| Output Voltage Waveform | As same as Input Waveform |
| Output Short Circuit Protection | 30ACircuit Breaker |
| Efficiency (Line Mode) | >95% ( Rated R load, battery full charged ) |
| Transfer Switch Rating | 30A |
| Transfer Time | 10ms (typical) 15ms max(NOR)
20ms (typical) 40ms max(GEN/WID) |
| Bypass charger enable in off mode | Yes |
| Power Limitation | |
Invert Mode Specifications
| MODEL | PSC3K-24 |
| Output Voltage Waveform | Pure Sine Wave |
| Rated Output Power | 3000VA |
| Power Factor | 0.8 |
| Nominal Output voltage | 230Vac |
| Minimum Peak Output Voltage at Rated Power | >200V |
| Output Frequency(Hz) | 50Hz / 60Hz ± 1Hz (follow first connect to grid) |
| Output Voltage Regulation | ±10% Vrms |
| Nominal Efficiency | >90% (@Normal DC Input; >60% R load) |
| Over-Load Protection | fault after 5s@≥150% load,<=200% load
fault after 10s@110%~150% load, |
| Surge rating | 6000VA |
| Capable of starting electric motor | 1.5HP |
| Output Short Circuit Protection | Current limit (Fault after 4 cycles max) |
| Nominal DC Input Voltage | 24V |
| Min DC start voltage | 20V |
| Low DC Alarm | 21.0 ± 0.6Vdc |
| Low DC Alarm Recovery | 21.6 ± 0.6Vdc |
| Low DC Shut-down | 20.0 ± 0.6Vdc |
| Low DC Shut-down Recovery | 22.0 ± 0.6Vdc |
| High DC Shut-down | 30.0 ± 0.6Vdc |
| High DC Shut-down Recovery | 29.0 ± 0.6Vdc |
| DC component of output | <100mV |
| Power Limitation | |
Charge Mode Specifications
| Nominal Input Voltage | 230Vac |
| Input Voltage Range | 180V - 270Vac(NOR)
100V - 270Vac(GEN/WID) |
| High Voltage Disconnect | 280Vac±4% |
| High Line Re-connect | 270Vac±4% |
| Low Voltage Disconnect | 170Vac(NOR)
90Vac(GEN/WID) |
| Low Line Re-connect | 180Vac±4% (NOR)
100Vac±4% (GEN/WID) |
| Nominal Output Voltage | Refer to Charge Algorithm/ Battery Type Setting |
| Nominal Charge Current | 10A@Vi/p<170Vac
20A@Vi/p=230Vac
10A@Vi/p>280Vac |
| Charge current tolerance | ±10% |
| Over Charge Protection | Bat. V ≥30Vdc, Fault, Buzzer alarm |
| Charge Algorithm | Three stage:
Boost CC (constant current stage) → Boost CV (constant voltage stage) → Float (constant voltage stage) |
Battery Type Setting(+/-0.3v/bat)
| | Battery Type | Boost CC/CV | Float | | Voltage(V) | Voltage(V) | | 24 | 24 | | Flooded | 29.2 | 27.0 | | AGM / Gel | 28.2 | 27.0 |
|
| Charger current (+/-10%) | |
Note: NOR - Normal range; GEN-Generator range; WID-Wide range
Approximate Back-up Times
| Load(VA) | 100Ah 24VDC(min) | 200AH 24VDC(min) |
| 300 | 457.5 | 972.2 |
| 600 | 208.1 | 499.5 |
| 900 | 140.6 | 262.3 |
| 1200 | 103 | 178.1 |
| 1500 | 77.8 | 138.3 |
| 1800 | 57.6 | 113.2 |
| 2100 | 49.5 | 100.5 |
| 2400 | 41.4 | 87.9 |
| 2700 | 33.2 | 75.3 |
| 3000 | 28.4 | 62.6 |
Note: Back-up times depend on the quality of the battery, age of battery and type of battery.
Specifications of batteries vary from one manufacturer to another.
General Specifications
| Safety Standard | EN60950-1:2006+A1: 2010
EN62040-1-1: 2008 |
| EMC Standard | EN62040-2 : 2006C2 |
| Operating Temperature Range | 0°Cto 45°C |
| Storage temperature | -15°C~ 60°C |
| Altitude, operational | Elevation: 0 - 1500 Meters |
| Relative humidity | 5% to 95% non-condensing |
| Audible Noise | 60dB max |
| Cooling | Forced air |
| Dimension (L*W*H) | 330mm*268mm*76mm |
| Net Weight | 4.9KG |
| DC wiring | Double 6 AWG cable for each polarity |
| AC input/output | L/N/G:12AWG |
